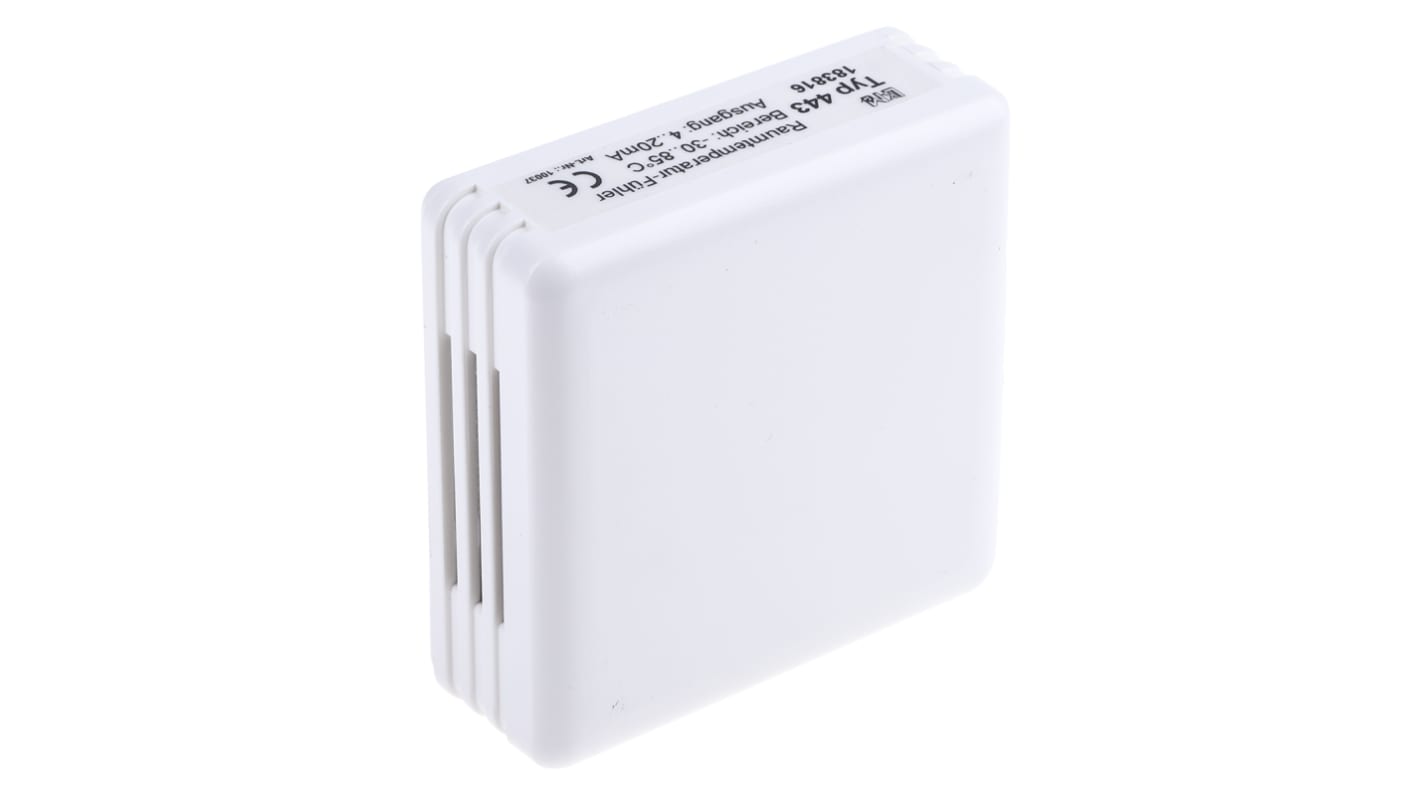

LKMelectronic LKM 443 Temperature Transmitter 35V, 85 °C, -40 °C
- RS 제품 번호:
- 449-4386
- 제조사 부품 번호:
- LKM 443
- 제조업체:
- LKMelectronic
Subtotal (1 unit)*
₩188,760.00
재고있음
- 18 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩188,760.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 449-4386
- 제조사 부품 번호:
- LKM 443
- 제조업체:
- LKMelectronic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | LKMelectronic | |
| Product Type | Temperature Transmitter | |
| Output Type | 4 to 20 mA | |
| Minimum Temperature Input | -30°C | |
| Maximum Temperature Input | 85°C | |
| Series | LKM 443 | |
| Depth | 25mm | |
| Maximum Supply Voltage | 35V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EN 61000-6-3:2001EN 61000-6-2:2001 | |
| Hazardous Area Certification | NO | |
| 모두 선택 | ||
|---|---|---|
브랜드 LKMelectronic | ||
Product Type Temperature Transmitter | ||
Output Type 4 to 20 mA | ||
Minimum Temperature Input -30°C | ||
Maximum Temperature Input 85°C | ||
Series LKM 443 | ||
Depth 25mm | ||
Maximum Supply Voltage 35V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EN 61000-6-3:2001EN 61000-6-2:2001 | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- DE
LKMelectronic Temperature Sensor
The LKMelectronic temperature sensor is designed with an integrated measurement converter and current output rating ranging between 4mA to 20mA. The maximum measurement range lies between -30°C and 85°C. It is suitable for direct connection to evaluation equipment with current input such as PC cards or PLCs. This sensor is supplied in a fully calibrated state and smaller corrections can be performed on-site utilizing an adjuster.
Features and Benefits
Typical accuracy is 0.5°C
Cost-efficient room temperature sensor with built-in transducer
Screw terminals
PVC white housing
Suitable for mounting in closed rooms
Operating temperature ranging between -30°C and 85°C
Applications
Dynamic material handling sectors
Process environments
Distribution facilities
Transport sectors (especially airports)
Environments requiring innovative, efficient product, or material handling solutions
Certifications
EN 61000-6-3:2001
EN 61000-6-2:2001
IP20 rated
CE certified
