제조사부품번호

Jumo 202756 Temperature Transmitter Binary Input 31V dc, 150 °C, -20 °C

RS 제품 번호:: 279-835
제조사 부품 번호:: 202756/65-607-0-82/767,941,
제조업체:: Jumo

Jumo 202756 Temperature Transmitter Binary Input 31V dc, 150 °C, -20 °C

Subtotal (1 unit)*

₩4,678,720.00

제조사가 재고 비축중

2026년 9월 21일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩4,678,720.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 279-835
제조사 부품 번호:: 202756/65-607-0-82/767,941,
제조업체:: Jumo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Jumo
	Product Type	Temperature Transmitter
	Input Type	Binary
	Output Type	Analogue
	Diameter	110mm
	Minimum Temperature Input	-20°C
	Maximum Temperature Input	150°C
	Series	202756
	Depth	73mm
	Maximum Supply Voltage	31V dc
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	150°C
	Standards/Approvals	DIN EN 60529 IP67, DIN EN 61326
	Hazardous Area Certification	No

	모두 선택
	브랜드 Jumo
	Product Type Temperature Transmitter
	Input Type Binary
	Output Type Analogue
	Diameter 110mm
	Minimum Temperature Input -20°C
	Maximum Temperature Input 150°C
	Series 202756
	Depth 73mm
	Maximum Supply Voltage 31V dc
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 150°C
	Standards/Approvals DIN EN 60529 IP67, DIN EN 61326
	Hazardous Area Certification No

Datasheet - 202756/65-607-0-82/767,941,

COO (Country of Origin):: DE

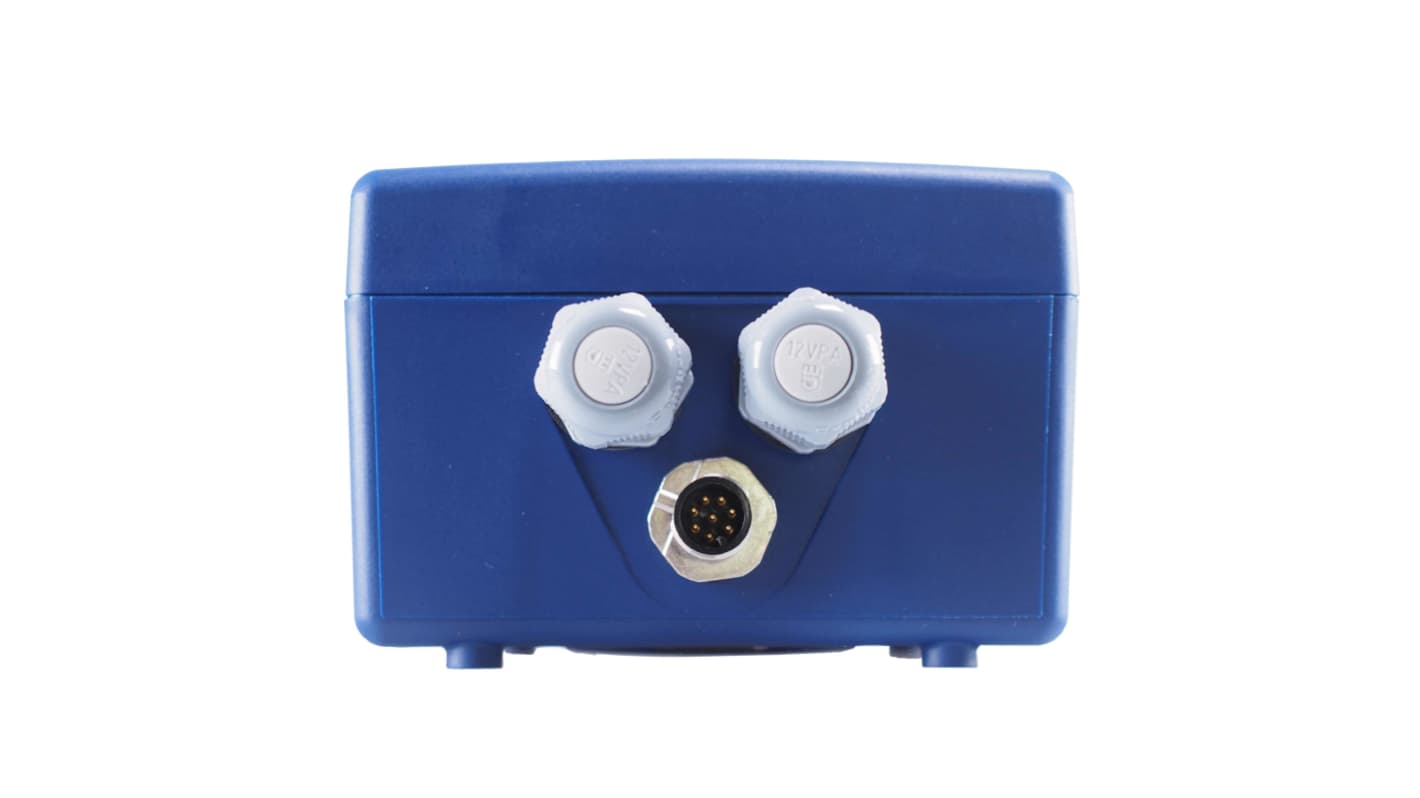

The Jumo Inductive conductivity/concentration and temperature transmitter with switching contracts and a sensor separated by a 10 m cable. has two freely programmable, analogue outputs for conductivity and temperature as well as two potential free contracts. It is possible to activate up to four ranges and temperature coefficients. The temperature compensation can be lineal, natural water or as an individual characteristic curve (learning function). Furthermore the instrument has a dilution control. The instrument can be controlled via display and keyboard as well as via setup software. As process connection the device has a hygienic sensor made of material PEEK with a compression fitting DN50, DIN 11851 (MK DN50, dairy pipe fitting). The power supply is provided by a power supply unit with DC 19 to 31 V.

Hygienic sensor

Fast response temperature sensor

Operation via keypad and LC display or through setup program

Jumo 202756 Temperature Transmitter Binary Input 31V dc, 150 °C, -20 °C
