Jumo 202552 Temperature Transmitter Analogue Input 230V ac, 55 °C, -5 °C

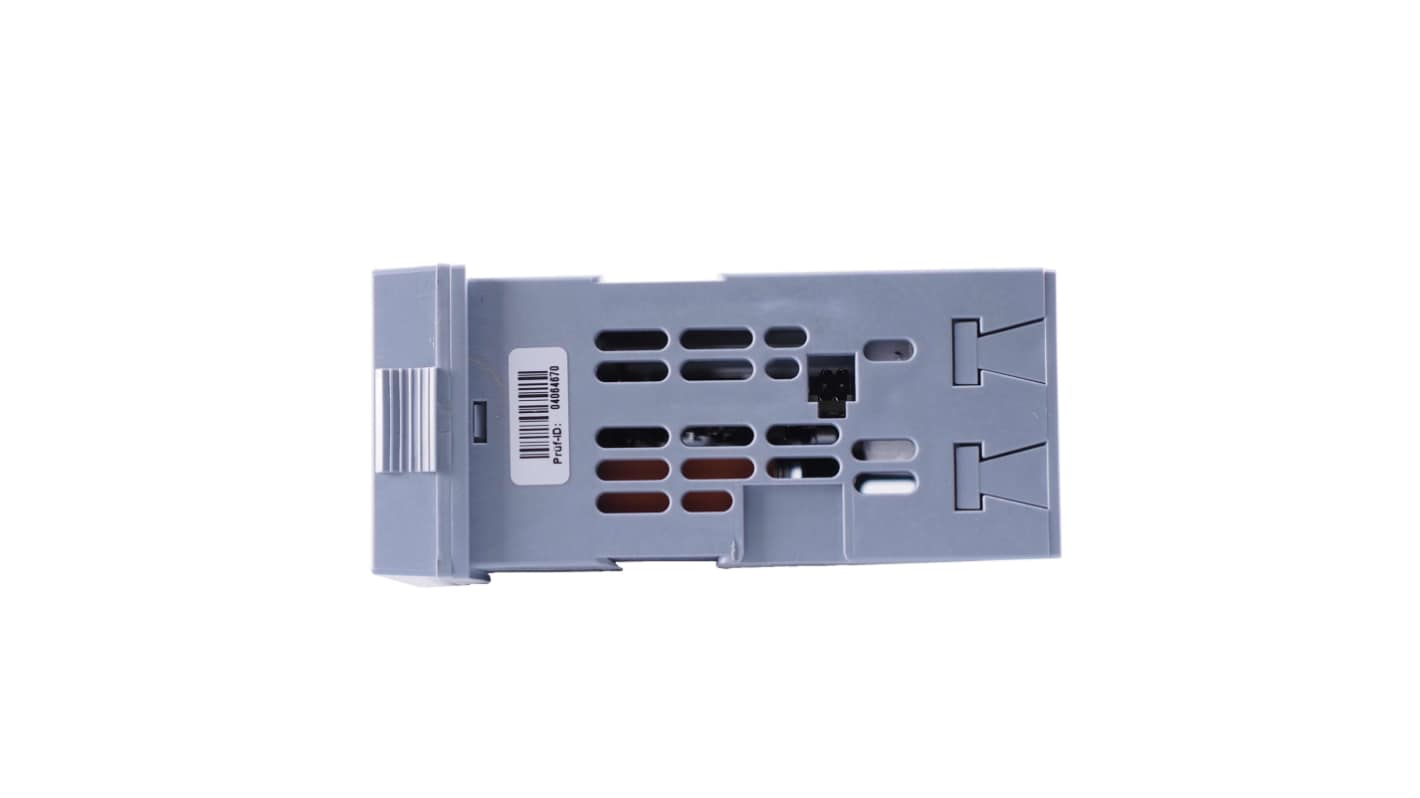

The Jumo Conductivity Transmitter in a panel case is a compact, modular device that can solve a wide variety of tasks to its flexibility with 3 slots for retrofittable boards. The main input is used for sensors to measuring electrolytic conductivity, specific resistance or the TDS value. Both conductive two electrode and four electrode cells can be connected to the instrument. The second analogue input (compensation input) is designed for resistance thermometers Pt100 and Pt1000, NTC/PTC or standard signals 0(4) to 20 mA or 0 to 10 V. The two binary inputs can be used either as initiators for actions (e.g. HOLD, keyboard inhibit) or when connecting pulse generators (for example impeller sensors) for flow rate measurement. It can be used as a two point or three point controller, a three point modulating controller, or as a continuous controller. The power supply is provided by a switch-mode PSU AC 110 to 240 V +10/-15% 48 to 63 Hz.

High contrast graphic display
