Jumo 707075 Temperature Transmitter Analogue Input 24V dc, 75 °C, -25 °C
- RS 제품 번호:
- 278-823
- 제조사 부품 번호:
- 707075/8-29/053
- 제조업체:
- Jumo
Subtotal (1 unit)*
₩1,142,946.00
재고있음
- 추가로 2026년 3월 30일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,142,946.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 278-823
- 제조사 부품 번호:
- 707075/8-29/053
- 제조업체:
- Jumo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Jumo | |
| Product Type | Temperature Transmitter | |
| Input Type | Analogue | |
| Output Type | Analogue | |
| Series | 707075 | |
| Depth | 80mm | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Hazardous Area Certification | ATEX | |
| Standards/Approvals | IECE, RoHS, ISO 13849, DIN EN 61508 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Jumo | ||
Product Type Temperature Transmitter | ||
Input Type Analogue | ||
Output Type Analogue | ||
Series 707075 | ||
Depth 80mm | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Hazardous Area Certification ATEX | ||
Standards/Approvals IECE, RoHS, ISO 13849, DIN EN 61508 | ||
- COO (Country of Origin):
- DE

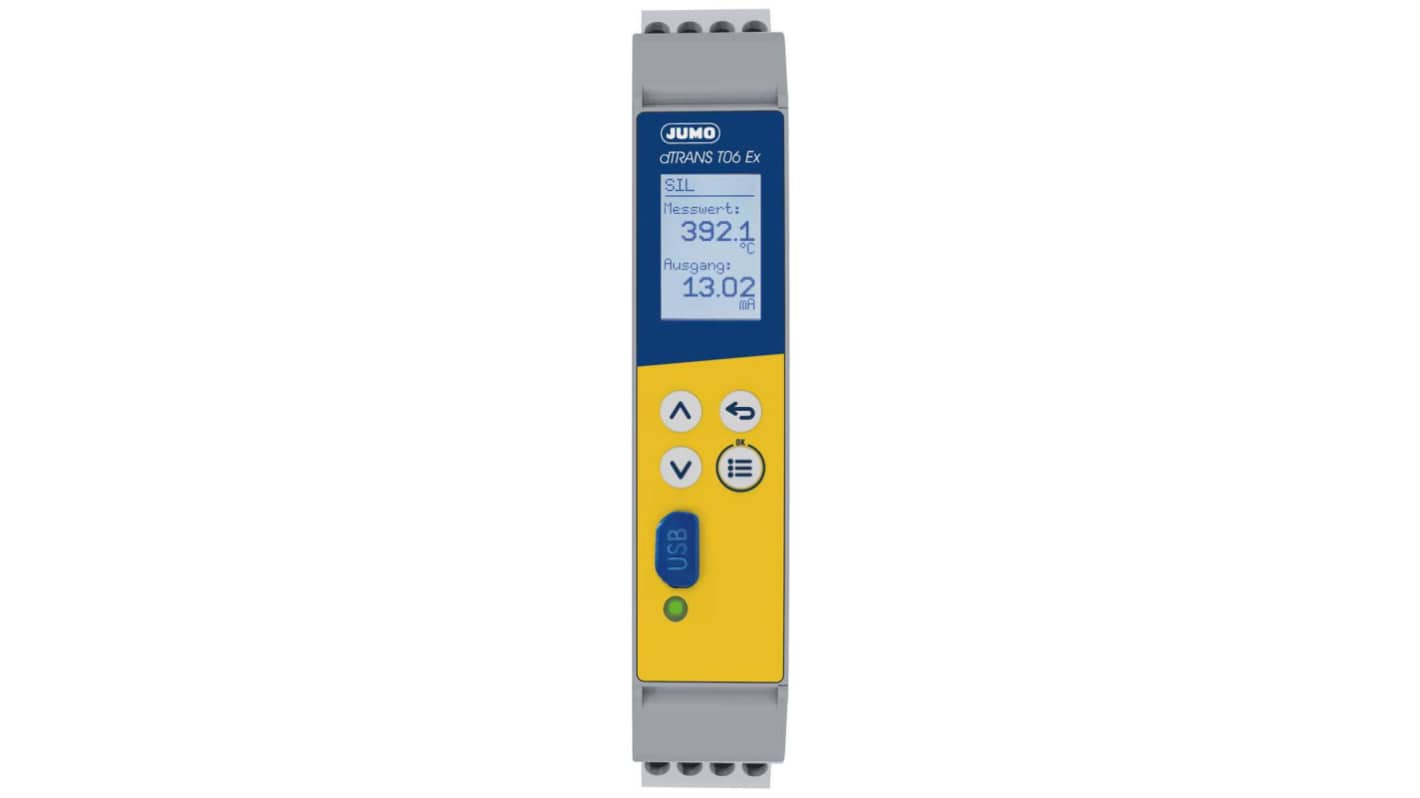

The Jumo Multifunctional four-wire transmitter is the solution for a wide range of applications in plant engineering due to galvanic isolation and customized linearization. This entry-level model has a width of only 17.5 mm so that it takes up little space in a control cabinet. It acquires sensor signals from RTD temperature probes in three-wire circuits. The transmitter supplies 0(4) to 20 mA as an output signal. The measuring input and the output signal are galvanically isolated from each other. A RS485 Modbus RTU interface is also available. In addition to ATEX and IECEx approval, the multifunctional transmitter has SIL 2/SIL 3 approval according to DIN EN 61508 and PL c/d according to ISO 13849. An operating hours counter is also included. The configuration of the transmitter with respect to probe type, connection technology of the probe, operating hours counter, measuring range (user configurable), and linearization is carried out by a setup program on the PC.
Connection to the PC is established via a USB interface which does not require additional auxiliary voltage
Using the USB interface, the min./max. process value that is acquired by the transmitter as well as the min./max
operating temperature can be extracted and the sensor wiring can be checked online
The operating status of the transmitter is indicated by a 3 colour LED
