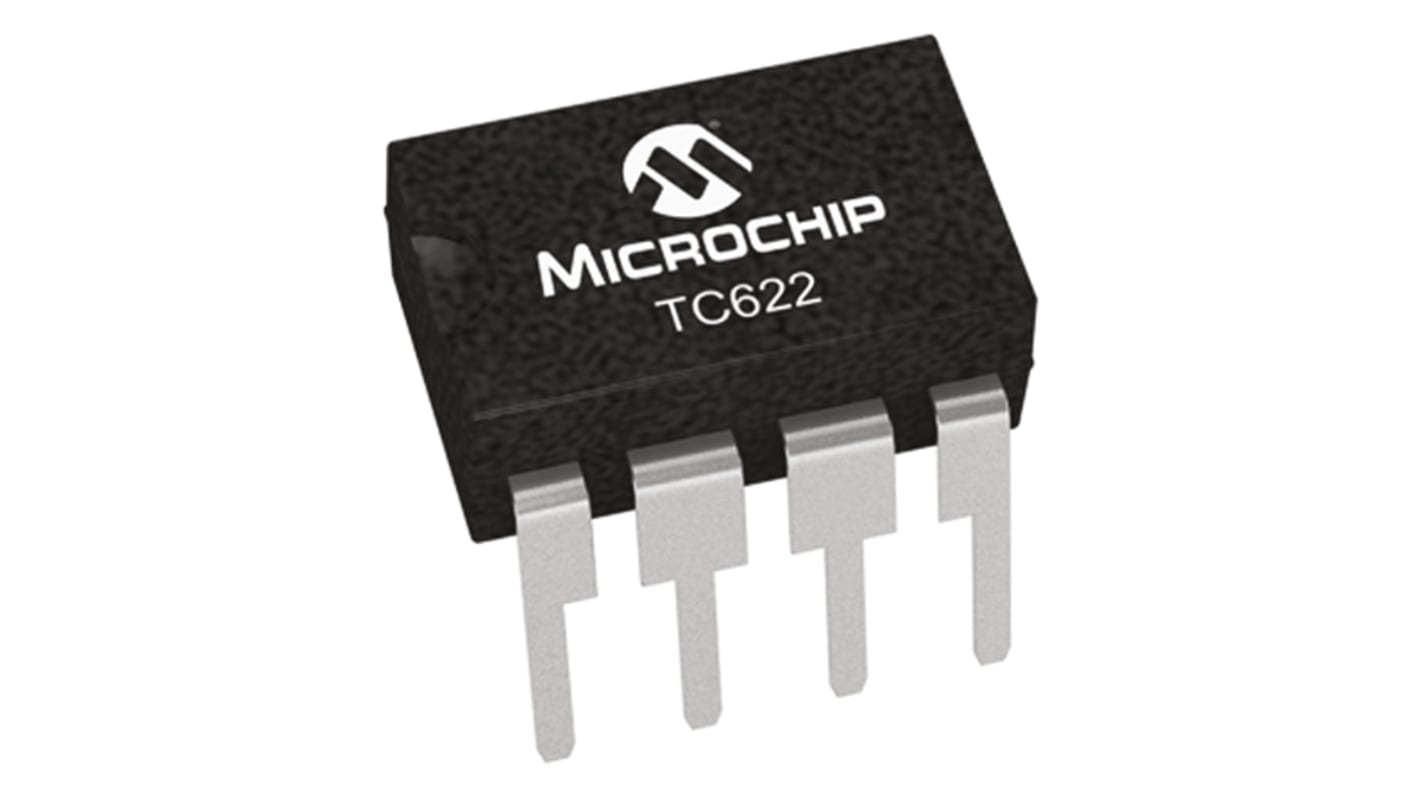

Microchip, Driver Output Temperature, Through Hole Mount, Serial, ±5°C, 8-Pin PDIP
- RS 제품 번호:
- 824-6279
- 제조사 부품 번호:
- TC622VPA
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩28,392.00
마지막 RS 재고
- 최종적인 130 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 10 | ₩2,839.20 | ₩28,392.00 |
| 20 + | ₩2,774.85 | ₩27,748.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 824-6279
- 제조사 부품 번호:
- TC622VPA
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Temperature | |
| Output Type | Driver | |
| Interface Type | Serial | |
| Sub Type | Temperature Sensor | |
| Accuracy | ±5°C | |
| Mount Type | Through Hole | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 18V | |
| Package Type | PDIP | |
| Length | 10.16mm | |
| Height | 4.06mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Temperature | ||
Output Type Driver | ||
Interface Type Serial | ||
Sub Type Temperature Sensor | ||
Accuracy ±5°C | ||
Mount Type Through Hole | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 18V | ||
Package Type PDIP | ||
Length 10.16mm | ||
Height 4.06mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
TC622/624 Single Trip Point Temperature Sensors
The TC622/624 single trip point temperature sensors sense ambient temperature. The ambient temperature is then compared to a pre-programmable temperature set by the user with an external resistor. The sensors are Ideal for consumer electronics, CPU thermal management, fire & heat detection, power supply over-temperature detection, UPS, amplifier and motor applications.
Temperature & Humidity Sensors, Microchip
