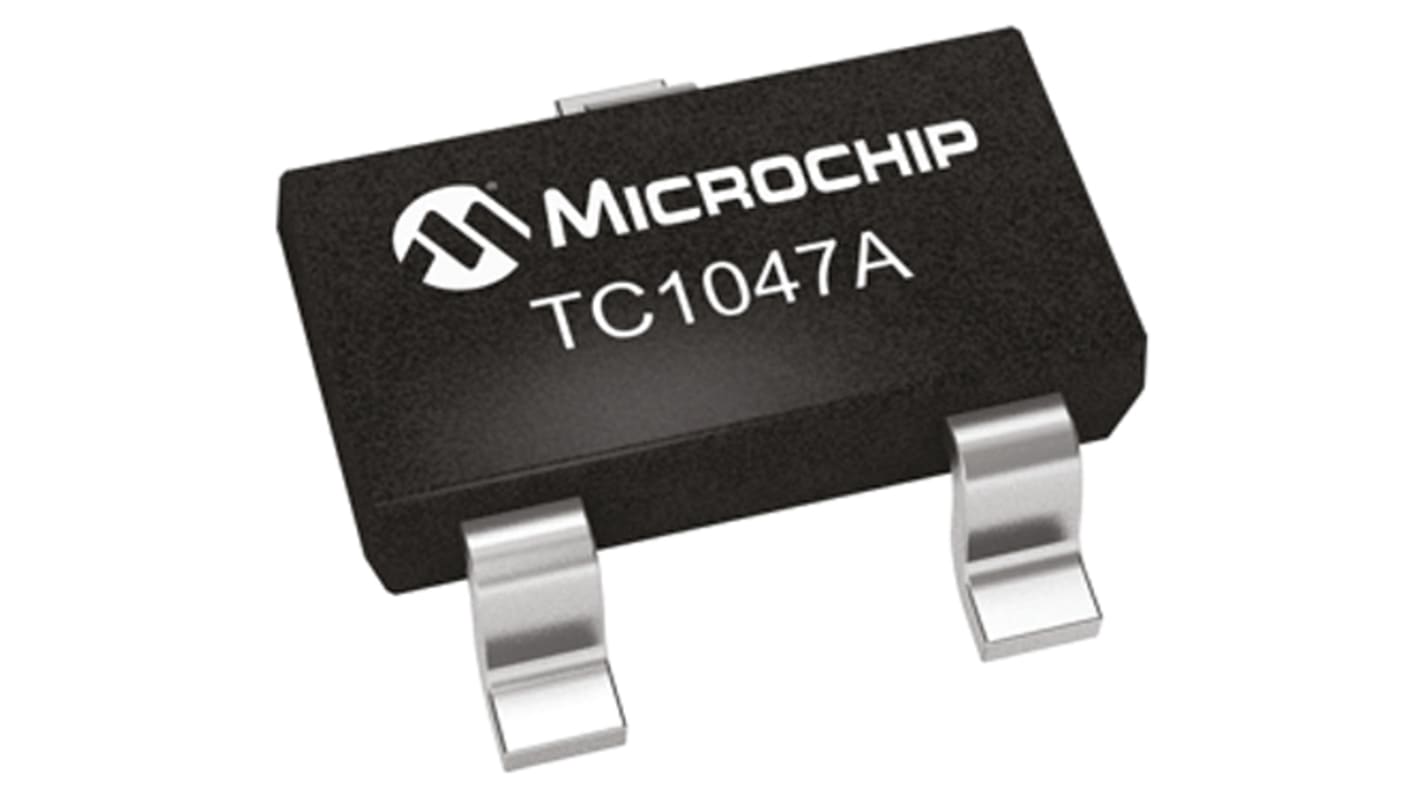

Microchip TC1047 Series, Voltage Output Voltage Temperature Sensor, Surface Mount, Analogue, ±2°C, 3-Pin SOT-23
- RS 제품 번호:
- 738-6001
- Distrelec 제품 번호:
- 304-45-518
- 제조사 부품 번호:
- TC1047AVNBTR
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 받기
750개 더 담고 ₩15,000.00 할인 받기
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩5,860.00
마지막 RS 재고
- 추가로 2026년 11월 09일 부터 705 개 단위 배송
- 2026년 11월 16일 부터 최종 2,675 개 단위 배송
수량 | 한팩당 | 한팩당* | 절감 |
|---|---|---|---|
| 5 - 745 | ₩1,172.00 | ₩5,860.00 | - |
| 750 - 1495 | ₩1,152.00 | ₩5,760.00 | ₩15,000.00 |
| 1500 + | ₩1,128.00 | ₩5,640.00 | ₩66,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 738-6001
- Distrelec 제품 번호:
- 304-45-518
- 제조사 부품 번호:
- TC1047AVNBTR
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Voltage Temperature Sensor | |
| Output Type | Voltage | |
| Sub Type | Temperature Sensor | |
| Interface Type | Analogue | |
| Accuracy | ±2°C | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Minimum Supply Voltage | 2.5V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | SOT-23 | |
| Standards/Approvals | No | |
| Length | 3.05mm | |
| Width | 1.4mm | |
| Series | TC1047 | |
| Height | 1.02mm | |
| Sensor Gain | 10mV/°C | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Voltage Temperature Sensor | ||
Output Type Voltage | ||
Sub Type Temperature Sensor | ||
Interface Type Analogue | ||
Accuracy ±2°C | ||
Mount Type Surface | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Minimum Supply Voltage 2.5V | ||
Maximum Supply Voltage 5.5V | ||
Package Type SOT-23 | ||
Standards/Approvals No | ||
Length 3.05mm | ||
Width 1.4mm | ||
Series TC1047 | ||
Height 1.02mm | ||
Sensor Gain 10mV/°C | ||
Automotive Standard No | ||
제외
- COO (Country of Origin):
- TH
TC1046/47 Temperature-to-Voltage Converters
The TC1046/47 series of temperature-to-voltage converters measure temperatures between -40° to +125°C, with the output voltage being directly proportional to that of the temperature being measured.
Applications include mobile phones, temperature regulators, temperature controlled fans and temperature measurement.
Features;
2.7 V to 4.4 V supply voltage range
