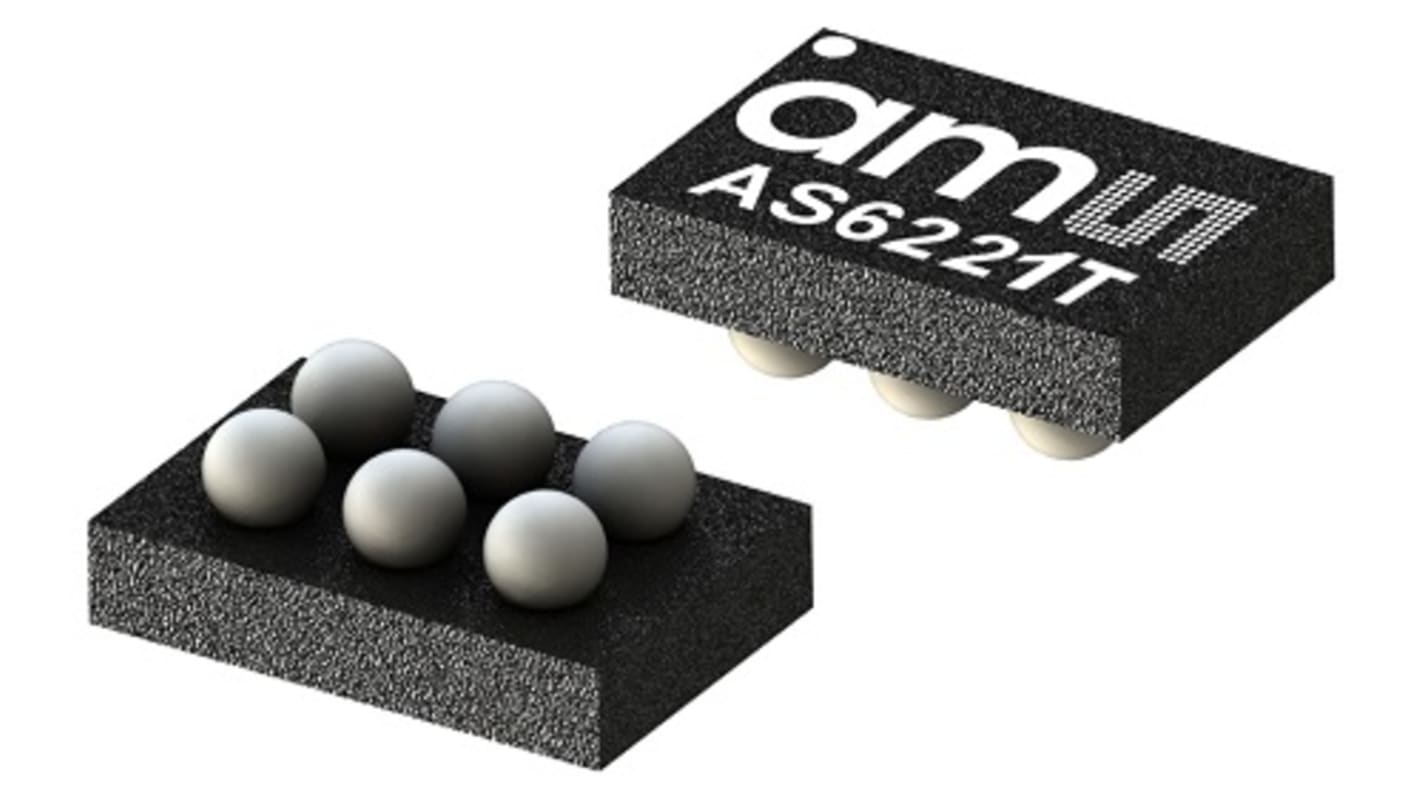

ams OSRAM AS6221T Series, Analogue Output Temperature & Humidity Sensor, Surface Mount, I2C, 0.09 °C, 6-Pin WLCSP
- RS 제품 번호:
- 257-6402
- 제조사 부품 번호:
- AS6221T-AWLM
- 제조업체:
- ams OSRAM
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩7,371.00
재고있음
- 1,980 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩1,474.20 | ₩7,371.00 |
| 25 - 95 | ₩1,400.10 | ₩7,000.50 |
| 100 - 245 | ₩1,314.30 | ₩6,571.50 |
| 250 - 495 | ₩1,224.60 | ₩6,123.00 |
| 500 + | ₩1,127.10 | ₩5,635.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 257-6402
- 제조사 부품 번호:
- AS6221T-AWLM
- 제조업체:
- ams OSRAM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ams OSRAM | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Analogue | |
| Sub Type | Sensor | |
| Interface Type | I2C | |
| Accuracy | 0.09 °C | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 1.98V | |
| Package Type | WLCSP | |
| Series | AS6221T | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 ams OSRAM | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Analogue | ||
Sub Type Sensor | ||
Interface Type I2C | ||
Accuracy 0.09 °C | ||
Mount Type Surface | ||
Pin Count 6 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 1.98V | ||
Package Type WLCSP | ||
Series AS6221T | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- AT
The AS6221T IC is a high accuracy digital temperature sensor system that communicates via a 2-wire digital bus with other devices. It consists of a Si bandgap temperature sensor, an ADC and a digital signal processor. This sensor is especially designed to be used in applications where a high measurement accuracy is needed, for example measuring the skin temperature.
High measurement accuracy ± 0.09 °C
Low power consumption 6 μA to 0.1 μA
Supply voltage range is between 1.71 to 1.98 V
Small PCB footprint size 1.5 mm x 1 mm
An interrupt to protect devices from excessive temperatures
