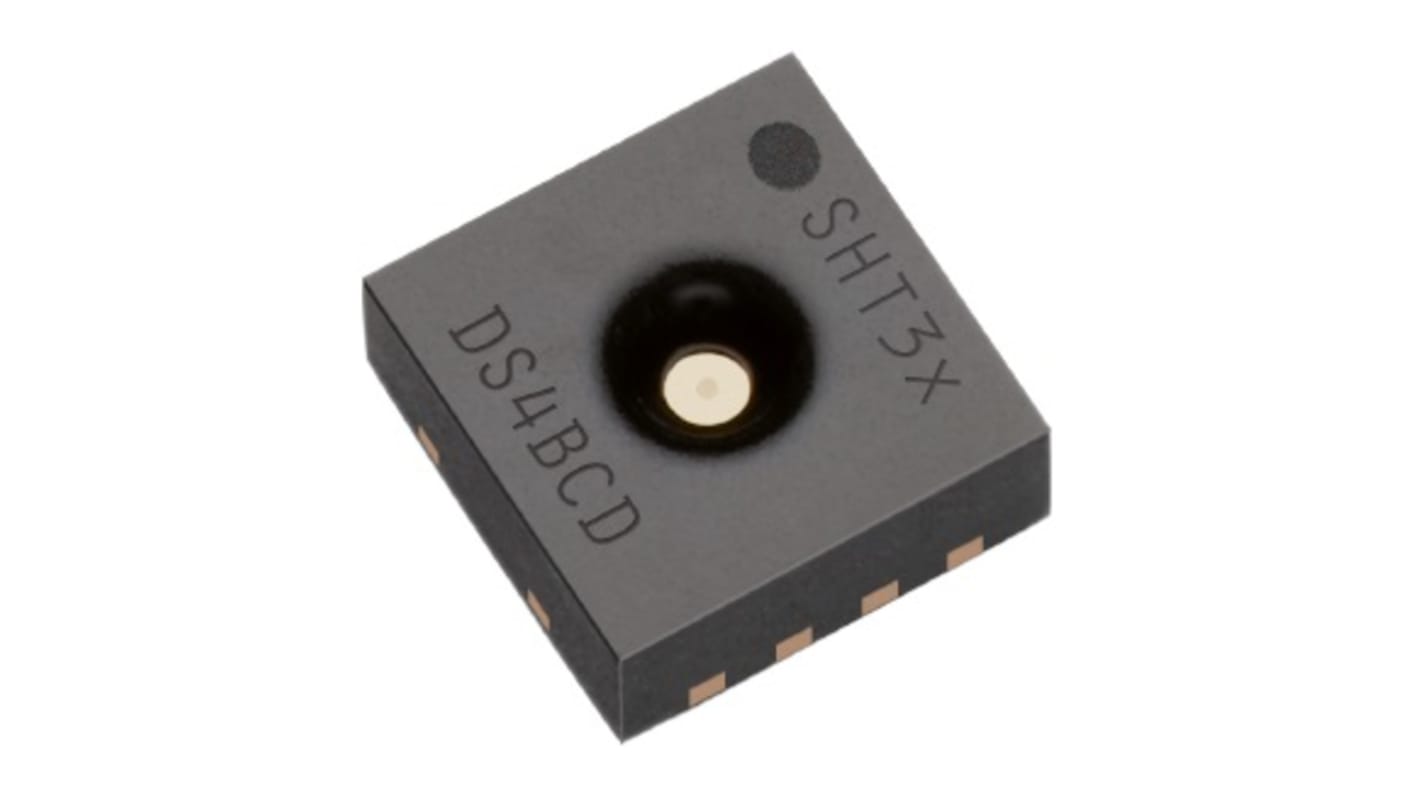

Sensirion SHT3x Series, Analogue Output Temperature & Humidity Sensor, Surface Mount, Analogue, ±3 %, 8-Pin DFN
- RS 제품 번호:
- 215-4944P
- 제조사 부품 번호:
- SHT30-ARP-B2.5kS
- 제조업체:
- Sensirion
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal 626 units (supplied on a reel)*
₩2,660,500.00
재고있음
- 추가로 2026년 7월 27일 부터 922 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 626 - 1248 | ₩4,250.00 |
| 1250 + | ₩4,160.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 215-4944P
- 제조사 부품 번호:
- SHT30-ARP-B2.5kS
- 제조업체:
- Sensirion
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensirion | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Analogue | |
| Interface Type | Analogue | |
| Sub Type | Temperature & Humidity Sensor | |
| Accuracy | ±3 % | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.15V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | DFN | |
| Height | 0.9mm | |
| Length | 2.5mm | |
| Series | SHT3x | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensirion | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Analogue | ||
Interface Type Analogue | ||
Sub Type Temperature & Humidity Sensor | ||
Accuracy ±3 % | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.15V | ||
Maximum Supply Voltage 5.5V | ||
Package Type DFN | ||
Height 0.9mm | ||
Length 2.5mm | ||
Series SHT3x | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CH
The Sensirion SHT3x-ARP is the next generation of temperature and humidity sensors with enhanced signal processing by which temperature and humidity can be read out at different pins.
High reliability and long-term stability
High signal-to-noise ratio
High process capability
Increased intelligence
