Amphenol Advanced Sensors CC2A33 Series, Analogue Output Temperature & Humidity Sensor, Surface Mount, I2C, ±3 %, 8-Pin
- RS 제품 번호:
- 210-5088
- 제조사 부품 번호:
- CC2A33
- 제조업체:
- Amphenol Advanced Sensors
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,251.50
재고있음
- 92 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 99 | ₩11,251.50 |
| 100 - 199 | ₩10,803.00 |
| 200 + | ₩10,471.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 210-5088
- 제조사 부품 번호:
- CC2A33
- 제조업체:
- Amphenol Advanced Sensors
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Amphenol Advanced Sensors | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Analogue | |
| Interface Type | I2C | |
| Sub Type | Temperature & Humidity Sensor | |
| Accuracy | ±3 % | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 5.5V | |
| Length | 4mm | |
| Series | CC2A33 | |
| Standards/Approvals | No | |
| Height | 6mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Amphenol Advanced Sensors | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Analogue | ||
Interface Type I2C | ||
Sub Type Temperature & Humidity Sensor | ||
Accuracy ±3 % | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 5.5V | ||
Length 4mm | ||
Series CC2A33 | ||
Standards/Approvals No | ||
Height 6mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- KR

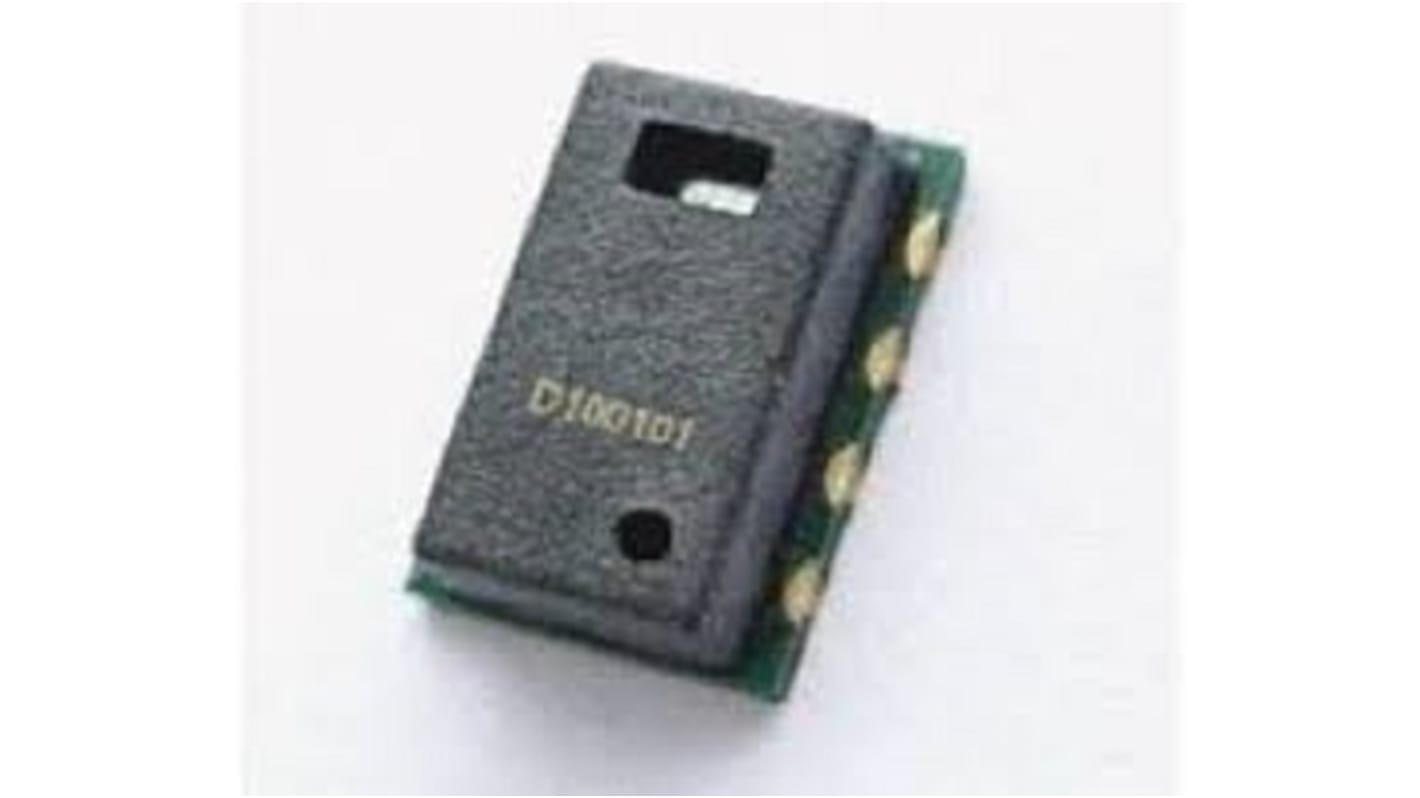

The Amphenol Advanced Sensors Telaire ChipCap 2 offers the most advanced and cost effective humidity and temperature sensing solution for virtually any type of application. A capacitive polymer sensor chip and a CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solderable SMD package.
Low current consumption.
Reliable in harsh environment.
