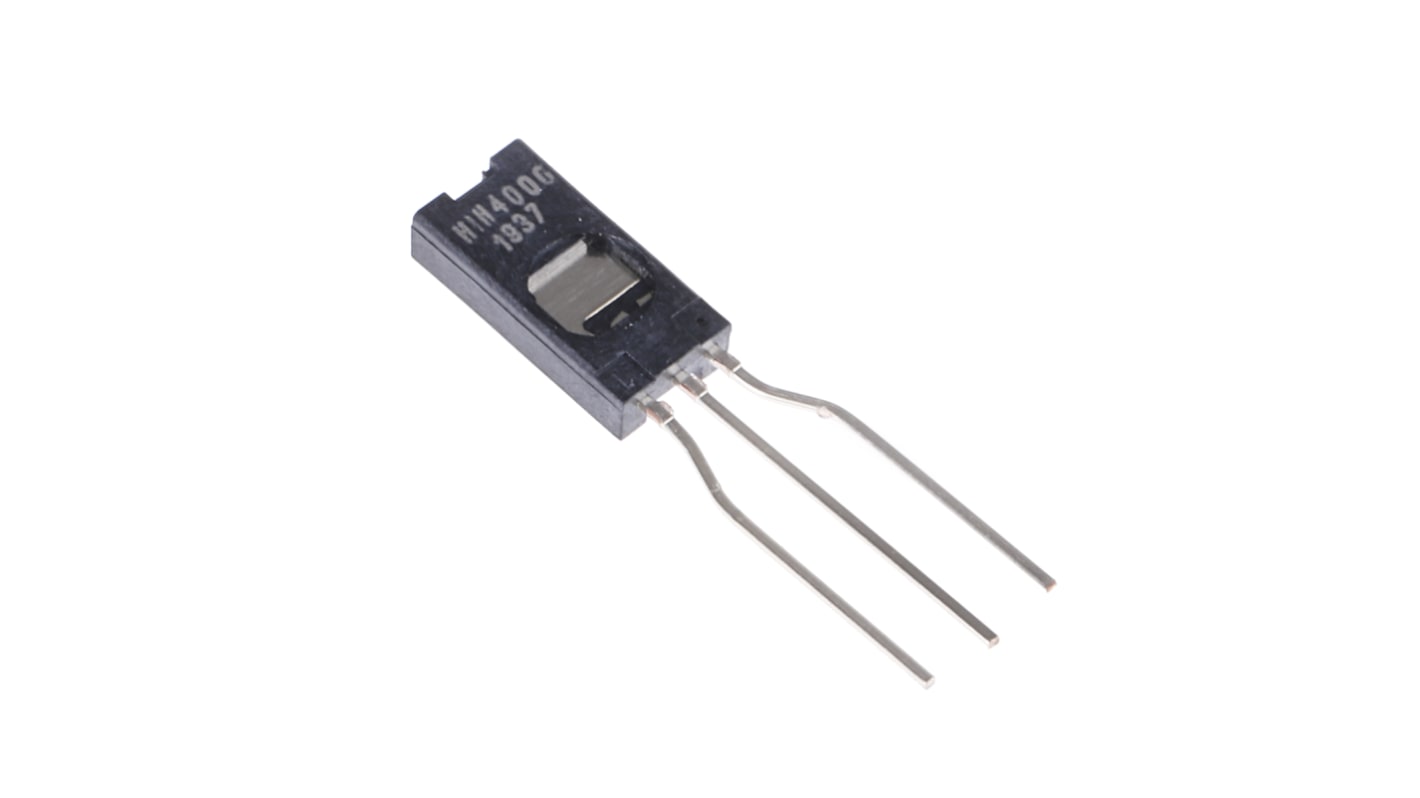

Honeywell HIH-4000 Series, Analogue Output Humidity Sensor, Through Hole Mount, Analogue, ±3.5 %RH, 3-Pin SIP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
177-5953
제조사 부품 번호:
HIH-4000-001
제조업체:
Honeywell
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Honeywell

Product Type

Humidity Sensor

Output Type

Analogue

Sub Type

Humidity Sensor

Interface Type

Analogue

Accuracy

±3.5 %RH

Mount Type

Through Hole

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Minimum Supply Voltage

4V

Maximum Supply Voltage

5.8V

Package Type

SIP

Series

HIH-4000

Height

20.79mm

Standards/Approvals

No

Length

4.17mm

Sensor Gain

-4mV/°C

Automotive Standard

No

HIH-4000/4020/4021 Series Humidity Sensors, Honeywell


The HIH-4000 series has been specifically designed for use in high volume OEM (Original Equipment Manufacturer) applications. These sensors utilise a near linear voltage output making direct input to a controller or other devices possible. They are ideally suited for low drain, battery operated systems with a typical current draw of only 200 μA.

Potential Applications:

Refrigeration equipment

HVAC equipment

Medical equipment

Drying

Meteorology

Battery-powered systems

OEM assemblies

Features:

Moulded thermoset plastic housing

Near linear voltage output vs %RH

Laser-trimmed interchangeability

Enhanced accuracy, fast response

Fast response time

Stable, low drift performance

Chemically resistant
