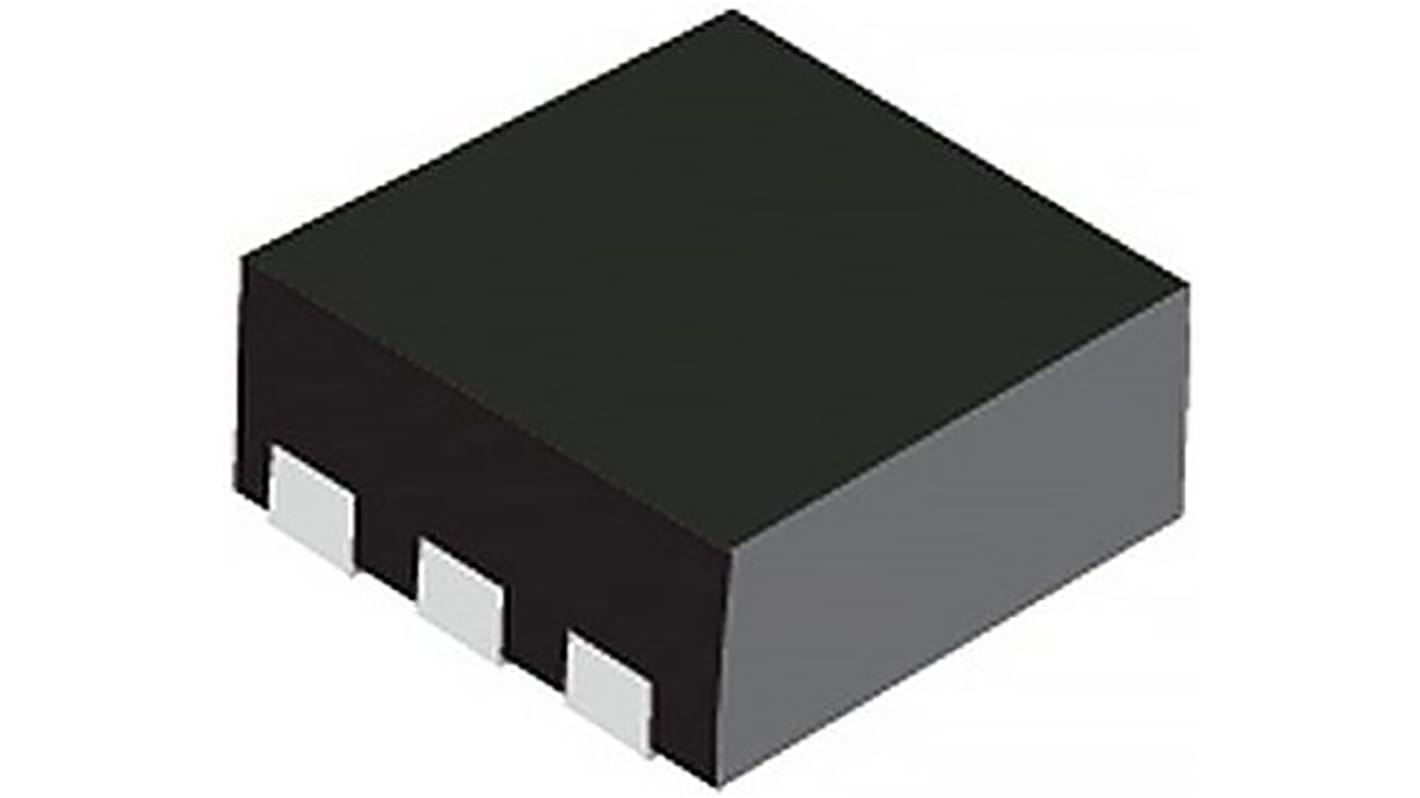

Texas Instruments HDC1080 Series, Digital Output Temperature & Humidity Sensor, Surface Mount, Serial-I2C, ±0.2 °C, ±2
- RS 제품 번호:
- 133-0170
- 제조사 부품 번호:
- HDC1080DMBT
- 제조업체:
- Texas Instruments
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 2 units)*
₩9,100.00
단종되는 중
- 406 개 단위 배송 준비 완료
- 2026년 9월 07일 부터 최종 284 개 단위 배송
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 2 - 62 | ₩4,550.00 | ₩9,100.00 |
| 64 - 124 | ₩4,450.00 | ₩8,900.00 |
| 126 + | ₩4,350.00 | ₩8,700.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 133-0170
- 제조사 부품 번호:
- HDC1080DMBT
- 제조업체:
- Texas Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Texas Instruments | |
| Product Type | Temperature & Humidity Sensor | |
| Output Type | Digital | |
| Interface Type | Serial-I2C | |
| Sub Type | Temperature & Humidity Sensor | |
| Accuracy | ±0.2 °C, ±2 %RH | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -20°C | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | WSON | |
| RH Range | 0 to 100 % | |
| Standards/Approvals | No | |
| Width | 3.1mm | |
| Series | HDC1080 | |
| Height | 0.75mm | |
| Length | 3.1mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Texas Instruments | ||
Product Type Temperature & Humidity Sensor | ||
Output Type Digital | ||
Interface Type Serial-I2C | ||
Sub Type Temperature & Humidity Sensor | ||
Accuracy ±0.2 °C, ±2 %RH | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -20°C | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
Package Type WSON | ||
RH Range 0 to 100 % | ||
Standards/Approvals No | ||
Width 3.1mm | ||
Series HDC1080 | ||
Height 0.75mm | ||
Length 3.1mm | ||
Automotive Standard No | ||
HDC1080 Digital Humidity Sensor with Temperature Sensor, Texas Instruments
Relative Humidity Accuracy ±2%
Temperature Accuracy ±0.2°C
Excellent Stability at High Humidity
14-bit Measurement Resolution
Sleep Mode Current 100 nA
I²C-Bus Interface
Operating Supply Voltage 2.7 V to 5.5 V
