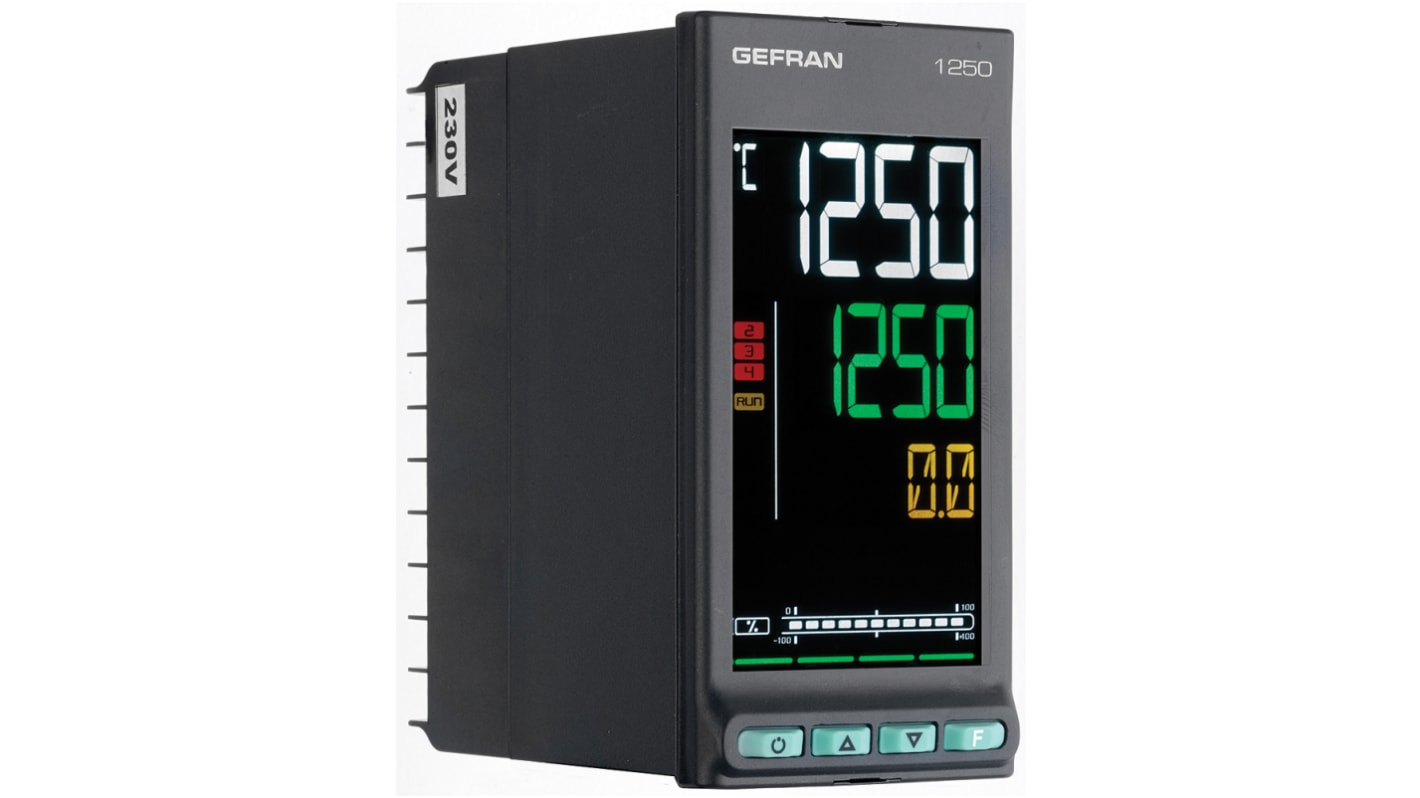

Gefran 650-1250-1350 Panel PID Temperature Controller, 2 Output Relay 240V Temperature Control
- RS 제품 번호:
- 862-6571
- 제조사 부품 번호:
- F060836/ 1250-D-R00-00000-1-G
- 제조업체:
- Gefran
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩637,508.00
재고있음
- 추가로 2026년 4월 01일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩637,508.00 |
| 10 - 49 | ₩612,015.20 |
| 50 + | ₩586,503.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 862-6571
- 제조사 부품 번호:
- F060836/ 1250-D-R00-00000-1-G
- 제조업체:
- Gefran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Gefran | |
| Output Type | Relay | |
| Product Type | PID Temperature Controller | |
| Number of Outputs | 2 | |
| Maximum Current | 20mA | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | -10°C | |
| Terminal Type | Screw | |
| Control Type | Temperature Control | |
| Maximum Supply Voltage | 240V | |
| Energy measurement | Yes | |
| Diagnostics | Yes | |
| Digital Comms | RS485 | |
| Firing Mode | Phase Angle, Burst Fire | |
| Display Type | LCD | |
| Maximum Voltage | 240V | |
| Standards/Approvals | UL, CE | |
| Width | 96mm | |
| Length | 48mm | |
| IP Rating | IP65 | |
| Mount Type | Panel | |
| Series | 650-1250-1350 | |
| Panel Depth | 80mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Gefran | ||
Output Type Relay | ||
Product Type PID Temperature Controller | ||
Number of Outputs 2 | ||
Maximum Current 20mA | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature -10°C | ||
Terminal Type Screw | ||
Control Type Temperature Control | ||
Maximum Supply Voltage 240V | ||
Energy measurement Yes | ||
Diagnostics Yes | ||
Digital Comms RS485 | ||
Firing Mode Phase Angle, Burst Fire | ||
Display Type LCD | ||
Maximum Voltage 240V | ||
Standards/Approvals UL, CE | ||
Width 96mm | ||
Length 48mm | ||
IP Rating IP65 | ||
Mount Type Panel | ||
Series 650-1250-1350 | ||
Panel Depth 80mm | ||
- COO (Country of Origin):
- IT
Gefran 1250 Series
The 1250 series of PID temperature controllers from Gefran are highly customizable, adapting to the user's application and integrating perfectly with the look of the machine interface. These PIDs are clear and easy to read with easy configuration for manual-free programming.
Large LCD display
48 x 96mm format
Flexible customization of display, operator messages, logo and use of bargraph (1250 series only)
Scrolling diagnostics messages
Preventive maintenance with energy counters (kWh) and load switching
16 function block applications
Different password levels
Remote setpoint input
Relay, logic, isolated analogue outputs
3 configuration methods: from keyboard in only 7 steps, from PC with GF_eXpress configurator and from the Zapper portable configurator
Gefran Series 400, 600, 650, 1000, 1200 & 1250
