Lumel RE92 Panel Mount PID Temperature Controller 6 Input, 3 Output Relay 253V ac/dc On-Off
- RS 제품 번호:
- 123-6798
- 제조사 부품 번호:
- RE92 2211000M0
- 제조업체:
- Lumel
Subtotal (1 unit)*
₩1,125,292.80
일시적 품절
- 2026년 5월 21일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,125,292.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 123-6798
- 제조사 부품 번호:
- RE92 2211000M0
- 제조업체:
- Lumel
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lumel | |
| Product Type | PID Temperature Controller | |
| Output Type | Relay | |
| Number of Inputs | 6 | |
| Number of Outputs | 3 | |
| Maximum Current | 2A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Terminal Type | Screw | |
| Control Type | On-Off | |
| Maximum Supply Voltage | 253V ac/dc | |
| Auxiliary Power Supply | 24 V | |
| Digital Comms | Ethernet, RS485 | |
| Display Type | TFT | |
| Maximum Voltage | 300V | |
| Standards/Approvals | EN 61000-6-2, EN 61000-6-4 | |
| IP Rating | IP20, IP65 | |
| Length | 10mm | |
| Width | 96 mm | |
| Input Type | PT500, Type R Thermocouple, PT1000, PT100/1.617, Type B Thermocouple, Type E Thermocouple, Type S Thermocouple, Type N Thermocouple, Type J Thermocouple, Type T Thermocouple, PT100, Type K Thermocouple | |
| Series | RE92 | |
| Mount Type | Panel Mount | |
| Panel Depth | 69mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lumel | ||
Product Type PID Temperature Controller | ||
Output Type Relay | ||
Number of Inputs 6 | ||
Number of Outputs 3 | ||
Maximum Current 2A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Terminal Type Screw | ||
Control Type On-Off | ||
Maximum Supply Voltage 253V ac/dc | ||
Auxiliary Power Supply 24 V | ||
Digital Comms Ethernet, RS485 | ||
Display Type TFT | ||
Maximum Voltage 300V | ||
Standards/Approvals EN 61000-6-2, EN 61000-6-4 | ||
IP Rating IP20, IP65 | ||
Length 10mm | ||
Width 96 mm | ||
Input Type PT500, Type R Thermocouple, PT1000, PT100/1.617, Type B Thermocouple, Type E Thermocouple, Type S Thermocouple, Type N Thermocouple, Type J Thermocouple, Type T Thermocouple, PT100, Type K Thermocouple | ||
Series RE92 | ||
Mount Type Panel Mount | ||
Panel Depth 69mm | ||
비준수
- COO (Country of Origin):
- PL

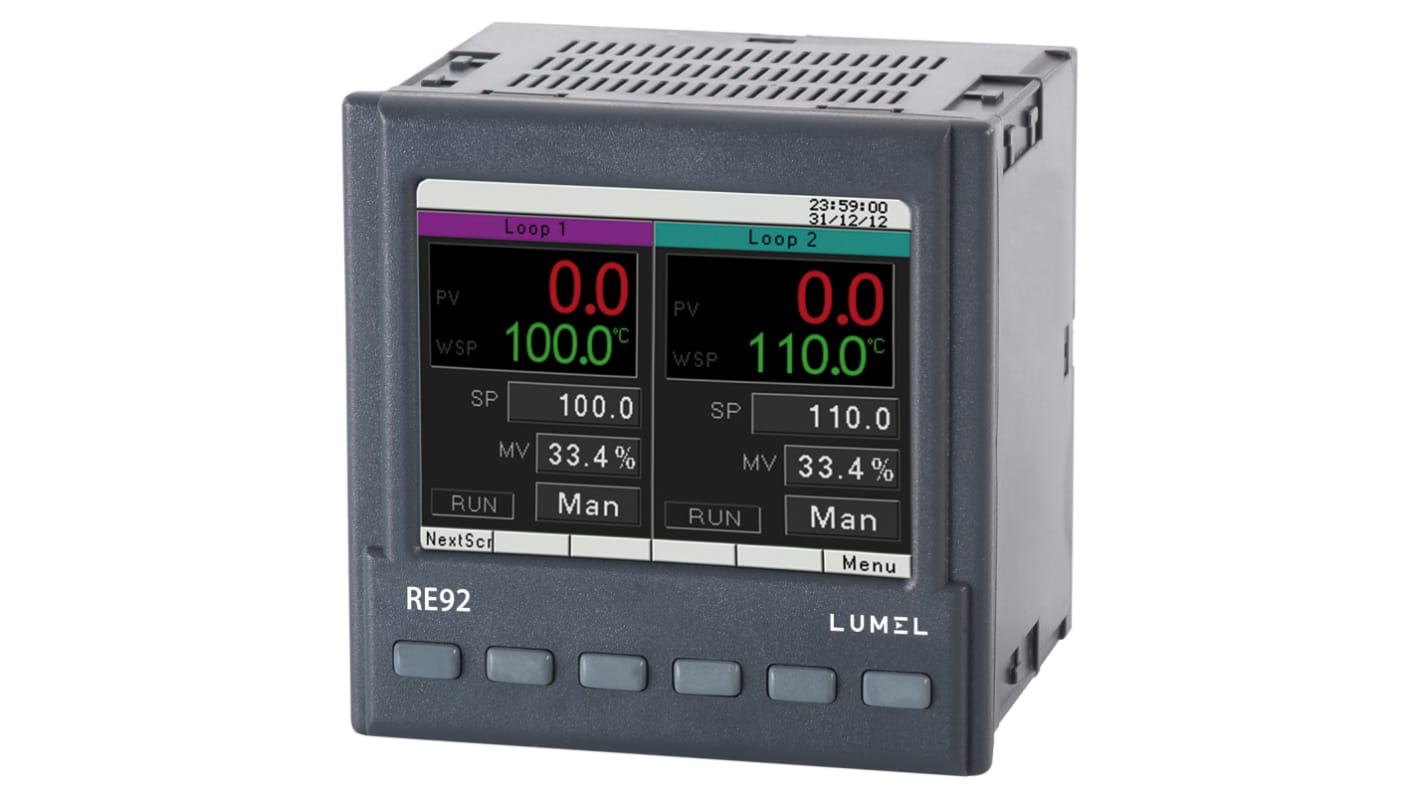

RE92 PID Temperature Controller
RE92 PID temperature controller is an advanced dual loop controller for industrial use. It was designed for demanding industrial applications. The RE92 can control two controlled objects independently or control two physical values in one object.
Features and Benefits
• 3.5" full-colour graphic screen with luminosity control
• Simple and user-friendly service
• Independent dual loop control
• PID control, ON/OFF, three-step control of heating-cooling and step-by-step control
• 6 Types of alarm with programmable hysteresis & memory
• 20 Internal programmes
• Password protected
• Universal separated measuring inputs
• Automatic parameter selection according to the controlled object- SMART PID algorithm
• Digital communication- RS485 (standard), Ethernet (Option)
