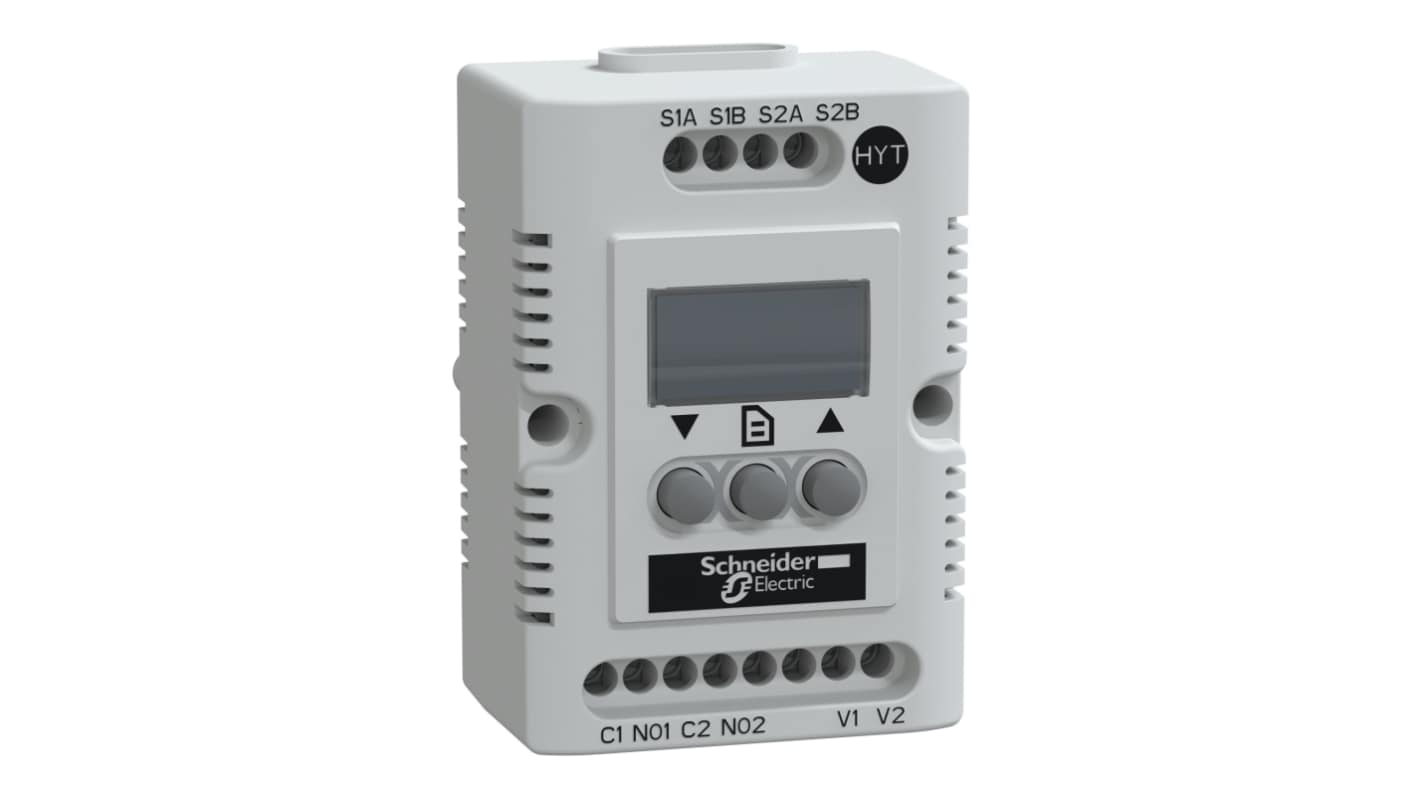

Schneider Electric ClimaSys CC Chassis Mount Temperature Control Module, 2 Output Linear 30V ac/dc Temperature Control
- RS 제품 번호:
- 585-519
- 제조사 부품 번호:
- NSYCCOHYT30VID
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩1,112,081.10
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,112,081.10 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 585-519
- 제조사 부품 번호:
- NSYCCOHYT30VID
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Output Type | Linear | |
| Product Type | Temperature Control Module | |
| Number of Outputs | 2 | |
| Maximum Current | 4A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Control Type | Temperature Control | |
| Maximum Supply Voltage | 30V ac/dc | |
| Display Type | OLED | |
| Maximum Voltage | 30V ac/dc | |
| Length | 85mm | |
| Width | 56mm | |
| Standards/Approvals | UL9 | |
| Series | ClimaSys CC | |
| Mount Type | Chassis Mount | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Output Type Linear | ||
Product Type Temperature Control Module | ||
Number of Outputs 2 | ||
Maximum Current 4A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Control Type Temperature Control | ||
Maximum Supply Voltage 30V ac/dc | ||
Display Type OLED | ||
Maximum Voltage 30V ac/dc | ||
Length 85mm | ||
Width 56mm | ||
Standards/Approvals UL9 | ||
Series ClimaSys CC | ||
Mount Type Chassis Mount | ||
- COO (Country of Origin):
- CN
The Schneider Electric Electronic Hygrotherm designed to monitor temperature and relative humidity with precision. Featuring an OLED screen that displays data in °C or °F, it operates on an input voltage of 9 to 30 V AC/DC and includes options for an external NTC sensor. The unit is mountable in various configurations, such as DIN rails and mounting plates, and offers ventilation/heating functions.
Flame retardant to UL94 V0 standard
RoHS compliant
REACH compliant
