Jumo 70070310 Controller 1 Input, 1 Output Relay 230V Controller

모든 Temperature Controllers 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
279-279
제조사 부품 번호:
700703/10-001-105-35/000
제조업체:
Jumo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Jumo

Product Type

Controller

Output Type

Relay

Number of Inputs

1

Number of Outputs

1

Maximum Current

16A

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Control Type

Controller

Maximum Supply Voltage

230V

Display Type

LCD

Maximum Voltage

400V

IP Rating

IP30

Standards/Approvals

DIN EN 61 326, Part 1:Überspannungskategorie II, Verschmutzungsgrad 2, DIN EN 61 010

Input Type

Analogue

Series

70070310

COO (Country of Origin):
DE

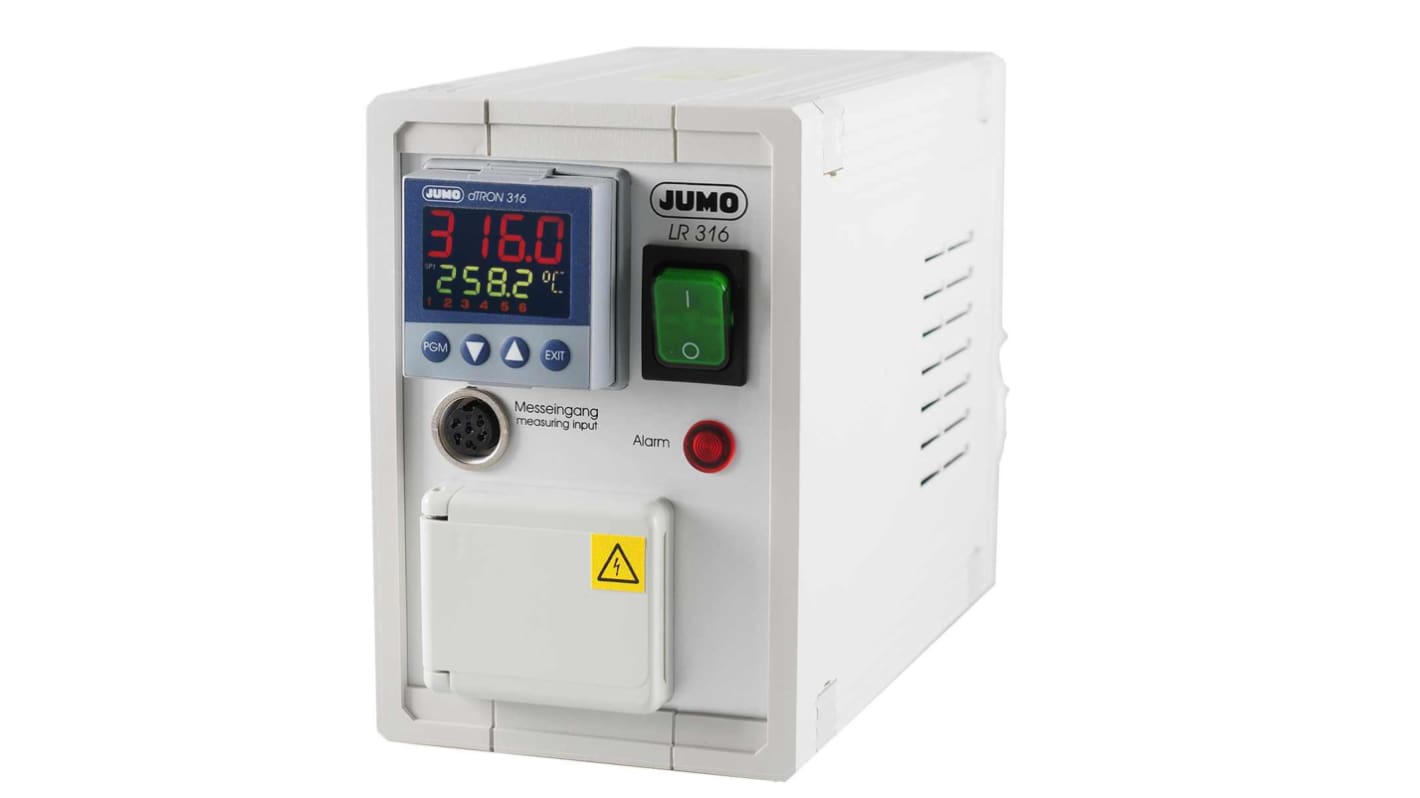

The Jumo Laboratory controller is preferably used for temperature control of heating plates, heating coils, tempering baths and heating furnaces in laboratories and production. The built-in compact controller meets a variety of technical requirements. With only four keys in the splash-proof front panel it is operated, parameterized and configured. The space saving ABS plastic housing has the dimensions of W=180 mm, H=170 mm, D=200 mm. The compact controller, round plug connector for sensors, the ON off switch and the optical display for excess temperature are built into the front panel. This serves for contactless switching of the load output, which avoids interference voltages as a zero voltage switch.

Control outputs and fuses are accessible from the rear

Earthing contact socket at the front is switched via a relay
