Chauvin Arnoux P01654623 Temperature Calibrator

모든 Temperature Calibrators 열람하기

Subtotal (1 unit)*

₩1,575,910.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 29일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,575,910.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
758-8932
Distrelec 제품 번호:
303-66-498
제조사 부품 번호:
P01654623
제조업체:
Chauvin Arnoux
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Chauvin Arnoux

Calibrator Type

RTD Calibrator

Resolution

0.01 mV

Best Accuracy

0.2 °C, 0.3 °C, 0.33 °C, 0.6 °C, 0.7 °C, 0.8 °C, 1 Ω

Temperature Scale

Centigrade, Fahrenheit

Model Number p

CA1623

Length

97mm

Dimensions

97 x 45 x 205mm

Width

45mm

Weight

472g

Height

205mm

COO (Country of Origin):
CN

Chauvin Arnoux Calibrators CA1621, CA1623 & CA1631


These compact, robust, easy-to-handle calibrators have large LCD screens and are suitable for use in highly diverse on-site conditions. They can calibrate an instrument in its operating environment and without removing it from the process. The principal functions are simulation and measurement. They simulate a signal or generate a quantity with precisely-defined values, for applying upstream of the measurement chain, and measure the signal. The CA1621, CA1623 & CA1631 calibrators are designed to accurately measure, generate or simulate all the low-level signals encountered in industry. Applications include maintenance operations, commissioning, verification, on-line calibration and adjustment and testing of measurement lines.

Instruments for use in developing and verifying measurement chains
CA1621 temperature calibrator for J,K,T,E,R,S,B,N thermocouples and voltage in mV

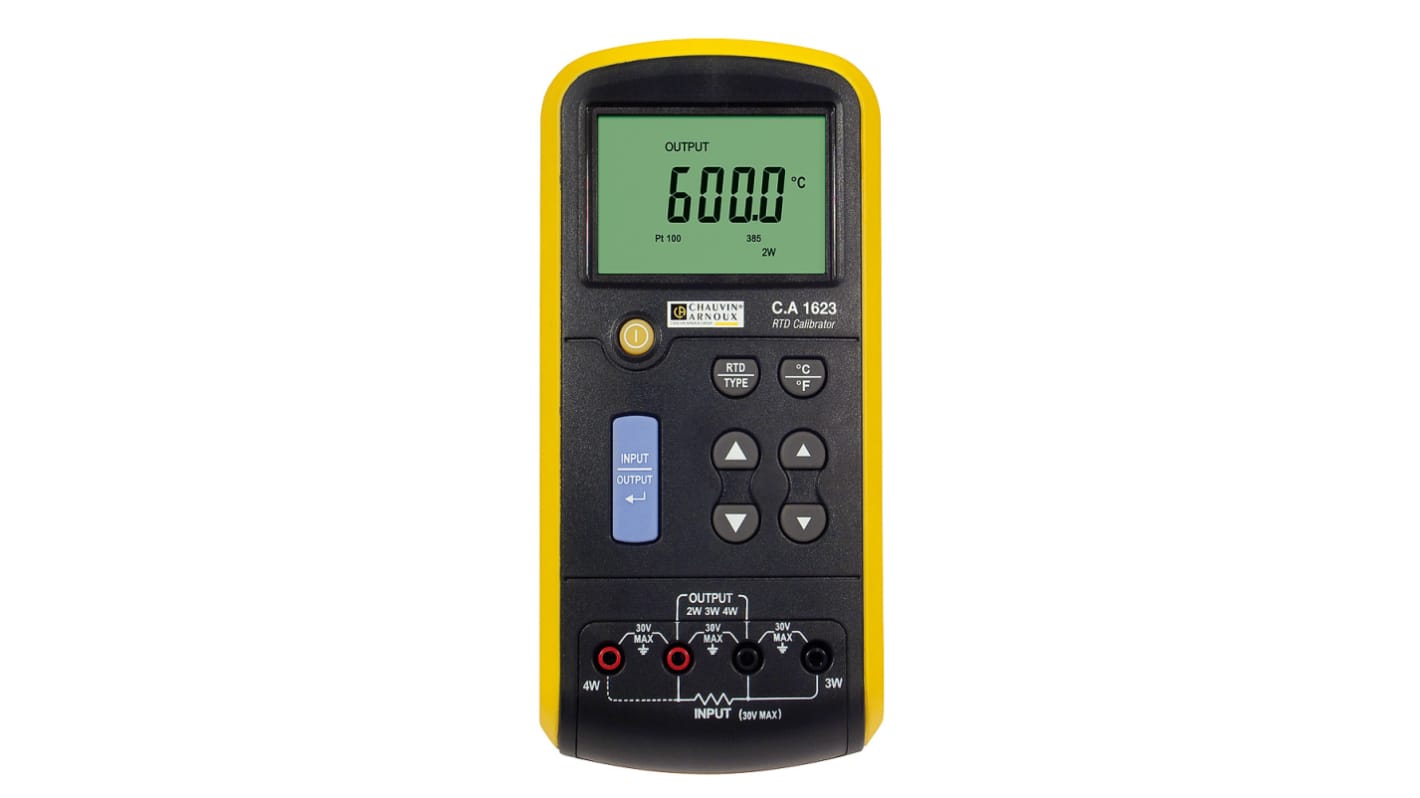

CA1623 temperature calibrator for Pt10,Pt50,Pt100,Pt200,Pt500,Pt1000 and Pt1000(JIS) probes and resistance
CA1631 current loop calibrator for measuring and supplying DC current loop 0 to 24mA, dc voltage between 0 and 20V
Calibrator dimensions 205 x 97 x 45mm
Calibrator weight 472g (including batteries)

Supplied with

Test wires (2 pairs), crocodile clip, 6AAA 1.5V batteries (6), operating manual in 5 languages, carrying case
