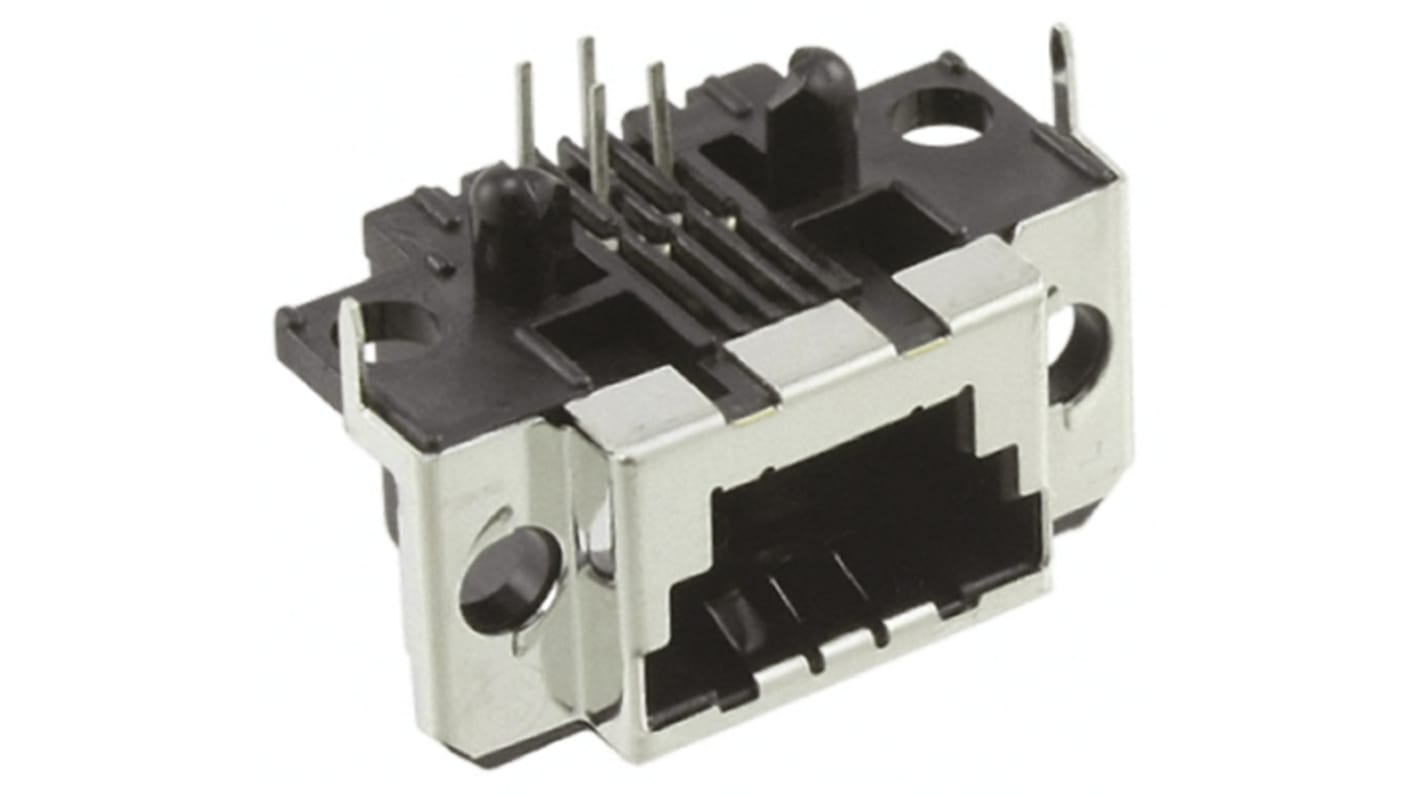

TE Connectivity Female SDL Connector, SDL, 4 Way Solder Termination
- RS 제품 번호:
- 164-4182
- 제조사 부품 번호:
- 5-1761185-1
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 132 units)*
₩1,489,456.32
일시적 품절
- 2026년 3월 25일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 132 - 132 | ₩11,283.76 | ₩1,489,531.52 |
| 264 - 396 | ₩11,058.16 | ₩1,459,752.32 |
| 528 + | ₩10,838.20 | ₩1,430,567.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 164-4182
- 제조사 부품 번호:
- 5-1761185-1
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Connector Type | Shielded Data Link | |
| Gender | Female | |
| Number of Ways | 4 | |
| Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Phosphor Bronze | |
| Housing Material | PET | |
| Colour | Black | |
| Series | SDL | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Connector Type Shielded Data Link | ||
Gender Female | ||
Number of Ways 4 | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Plating Gold over Nickel | ||
Contact Material Phosphor Bronze | ||
Housing Material PET | ||
Colour Black | ||
Series SDL | ||
- COO (Country of Origin):
- US
TE Connectivity SDL (Shielded Data Link) PCB Receptacle Connectors
SDL (Shielded Data Link) PCB side entry receptacle connectors with EMI/RFI shielded housings and PCB solder tails. These SDL (Shielded Data Link) PCB receptacles have PCB and panel grounds, black UL 94V-0 polyester housings and gold plated contacts. Integral letter coded polarization keying slots are provided to ensure the receptacles are correctly matched to the plugs. Both of these SDL receptacles have a 'Type E' keying type. Typical applications for these SDL (Shielded Data Link) PCB receptacles include data, communication and medical system interconnections. For plug assemblies see stock number 719-9444 typically.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Modular sockets
Series SS 63, 64 and 65.
A series of 4, 6 , 8 and 10 pin modular sockets for PCB mounting that meet the requirements for flawless communication and data transmission.
The sockets are made of black polyester (PE) with gold-plated phosphor bronze contacts; 30 μinch gold (Au) over 75 μinch nickel (Ni).
The series includes a number of variants:
Standard, series 63 (horizontal)
Low profile, series 64
Vertical, series 65
Unflanged, type NF
With panel stop, type FLS
With full flange, type F
With code (key)
With thicker gold plating on contacts.
A series of 4, 6 , 8 and 10 pin modular sockets for PCB mounting that meet the requirements for flawless communication and data transmission.
The sockets are made of black polyester (PE) with gold-plated phosphor bronze contacts; 30 μinch gold (Au) over 75 μinch nickel (Ni).
The series includes a number of variants:
Standard, series 63 (horizontal)
Low profile, series 64
Vertical, series 65
Unflanged, type NF
With panel stop, type FLS
With full flange, type F
With code (key)
With thicker gold plating on contacts.
