STMicroelectronics BLUENRG-132 ARM Cortex Bluetooth SoC 32-Pin QFN

RS 제품 번호:: 162-3643
제조사 부품 번호:: BLUENRG-132
제조업체:: STMicroelectronics

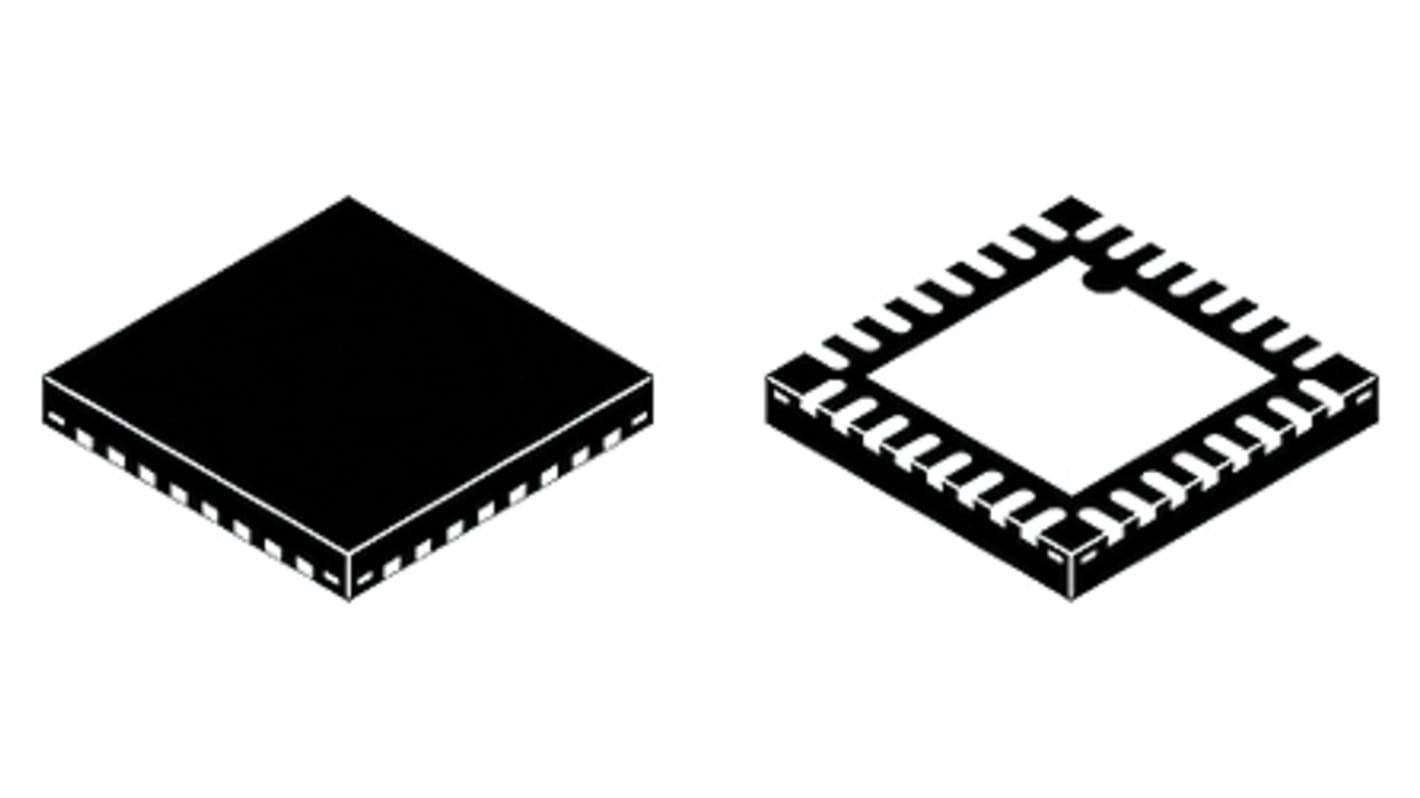

STMicroelectronics BLUENRG-132 ARM Cortex Bluetooth SoC 32-Pin QFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩9,418.80

일시적 품절

2027년 1월 21일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
2 - 748	₩4,709.40	₩9,418.80
750 - 1498	₩4,624.80	₩9,249.60
1500 +	₩4,521.40	₩9,042.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 162-3643
제조사 부품 번호:: BLUENRG-132
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Product Type	Bluetooth SoC
	Processing Unit	Bluetooth
	Technology	ARM Cortex
	Mount Type	Surface
	Package Type	QFN
	Pin Count	32
	Clock Frequency	8MHz
	Program Memory Size	160kB
	Program Memory Type	FLASH
	Minimum Supply Voltage	1.7V
	Maximum Supply Voltage	3.6V
	Number of I/Os	15
	Minimum Operating Temperature	-40°C
	Data RAM Type	RAM
	Data RAM Size	24kB
	Maximum Operating Temperature	105°C
	Length	5mm
	Width	5 mm
	Height	0.95mm
	Standards/Approvals	No
	Series	BlueNRG
	Automotive Standard	No

	모두 선택
	브랜드 STMicroelectronics
	Product Type Bluetooth SoC
	Processing Unit Bluetooth
	Technology ARM Cortex
	Mount Type Surface
	Package Type QFN
	Pin Count 32
	Clock Frequency 8MHz
	Program Memory Size 160kB
	Program Memory Type FLASH
	Minimum Supply Voltage 1.7V
	Maximum Supply Voltage 3.6V
	Number of I/Os 15
	Minimum Operating Temperature -40°C
	Data RAM Type RAM
	Data RAM Size 24kB
	Maximum Operating Temperature 105°C
	Length 5mm
	Width 5 mm
	Height 0.95mm
	Standards/Approvals No
	Series BlueNRG
	Automotive Standard No

The BlueNRG-1 is a very low power Bluetooth low energy (BLE) single-mode system-on-chip, compliant with Bluetooth specification.The BlueNRG-1 extends the features of award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 for running the user application code.The BlueNRG-1 includes 160 KB of programming Flash memory, 24 KB of static RAM memory with retention (two 12 KB banks) and SPI, UART, I²C standard communication Interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.

Bluetooth specification compliant master, slave and multiple roles simultaneously, single-mode Bluetooth low energy system-on-chip

Integrated linear regulator and DC-DC step-down converter

High performance, ultra-low power Cortex-M0 32-bit based architecture core

Programmable 160 KB Flash

24 KB RAM with retention (two 12 KB banks)

DMA controller

PDM stream processor

Battery voltage monitor and temperature sensor

Accurate RSSI to allow power control

STMicroelectronics BLUENRG-132 ARM Cortex Bluetooth SoC 32-Pin QFN
