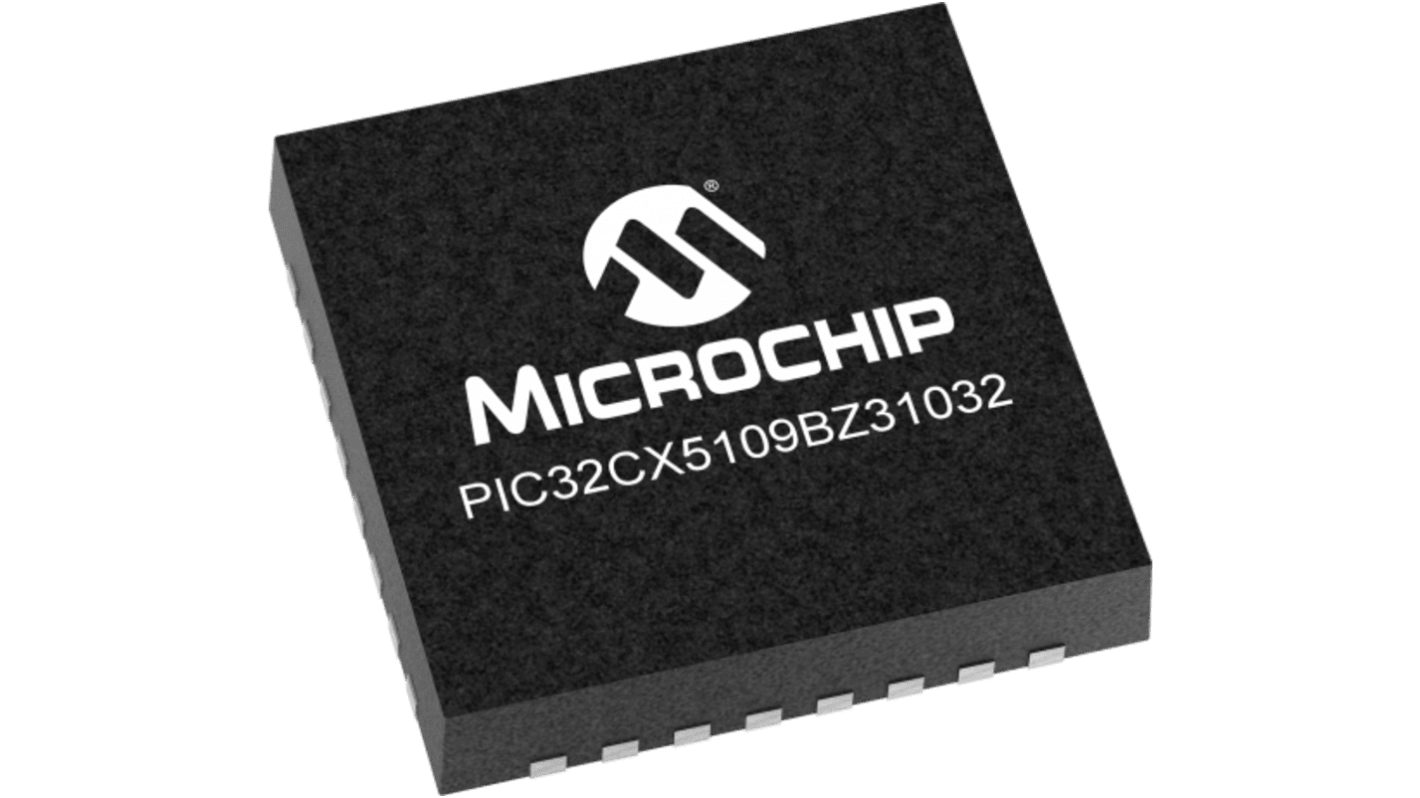

Microchip PIC32CX5109BZ31032-V/RTB ZigBee, Bluetooth ZigBee System On Chip SOC 32-Pin QFN
- RS 제품 번호:
- 352-164
- 제조사 부품 번호:
- PIC32CX5109BZ31032-V/RTB
- 제조업체:
- Microchip
대량 구매 할인 기용 가능
Subtotal (1 Bag of 2 units)*
₩12,915.60
재고있음
- 490 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 2 - 18 | ₩6,457.80 | ₩12,915.60 |
| 20 - 198 | ₩5,809.20 | ₩11,618.40 |
| 200 - 998 | ₩5,367.40 | ₩10,734.80 |
| 1000 - 1998 | ₩4,982.00 | ₩9,964.00 |
| 2000 + | ₩4,042.00 | ₩8,084.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 352-164
- 제조사 부품 번호:
- PIC32CX5109BZ31032-V/RTB
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Processing Unit | Bluetooth | |
| Product Type | ZigBee System On Chip SOC | |
| Technology | ZigBee, Bluetooth | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Clock Frequency | 64MHz | |
| Pin Count | 32 | |
| Interface Type | LIN, QSPI, I2C, SPI, UART, SWD | |
| Program Memory Size | 512kB | |
| Program Memory Type | Self-Programmable Flash | |
| Minimum Supply Voltage | 1.9V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Data RAM Size | 32kB | |
| Number of I/Os | 27 | |
| Maximum Operating Temperature | 125°C | |
| Series | PIC32CX-BZ3 | |
| Standards/Approvals | Bluetooth Low Energy 5.2, IEEE 802.15.4 | |
| Height | 1mm | |
| Length | 6mm | |
| Automotive Standard | AEC-Q100 Grade 2, AEC-Q100 Grade 1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Processing Unit Bluetooth | ||
Product Type ZigBee System On Chip SOC | ||
Technology ZigBee, Bluetooth | ||
Mount Type Surface | ||
Package Type QFN | ||
Clock Frequency 64MHz | ||
Pin Count 32 | ||
Interface Type LIN, QSPI, I2C, SPI, UART, SWD | ||
Program Memory Size 512kB | ||
Program Memory Type Self-Programmable Flash | ||
Minimum Supply Voltage 1.9V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Data RAM Size 32kB | ||
Number of I/Os 27 | ||
Maximum Operating Temperature 125°C | ||
Series PIC32CX-BZ3 | ||
Standards/Approvals Bluetooth Low Energy 5.2, IEEE 802.15.4 | ||
Height 1mm | ||
Length 6mm | ||
Automotive Standard AEC-Q100 Grade 2, AEC-Q100 Grade 1 | ||
- COO (Country of Origin):
- TW
The Microchip low-cost 32-bit microcontroller with an inbuilt wireless subsystem certified for Bluetooth and ZigBee. Designed from the ground up to enable you to go to market quickly, powered by a 64 MHz ARM Cortex M4F and is packed with features. Ultra-low power 2.4 GHz transceiver build applications enabling Bluetooth Low-Energy (LE) 5.2, IEEE 802.15.4 or ZigBee 3.0 connectivity with hardware-level arbitration for multi-protocol wireless functionality.
64 MHz Arm Cortex M4F processor
512 kB Flash with error correction code
96 kB multi-port programmable quality of service (QoS) SRAM
Up to 32 kB of SRAM retention in backup
64 kB of ROM for secure boot
32-channel event system
16-channel direct memory access controller
Internal and external clock options
