Microchip Switching Regulator, Surface, 32V dc Output Voltage, 52 μA Output Current, 1 Outputs
- RS 제품 번호:
- 238-0653
- 제조사 부품 번호:
- MIC2250-1YD5-TR
- 제조업체:
- Microchip

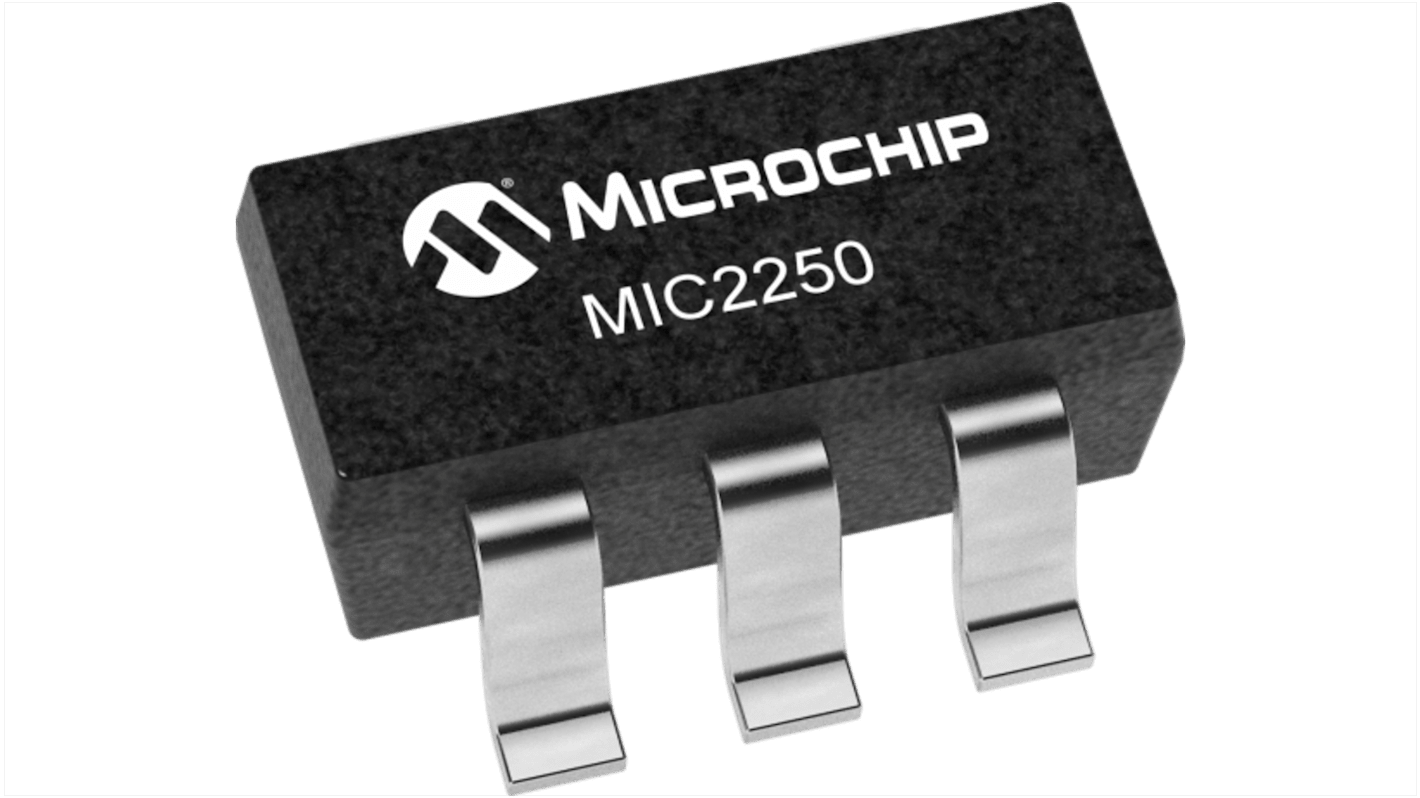

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩14,231.60
재고있음
- 2,230 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 40 | ₩1,423.16 | ₩14,231.60 |
| 50 - 90 | ₩1,398.72 | ₩13,987.20 |
| 100 - 240 | ₩1,374.28 | ₩13,742.80 |
| 250 - 990 | ₩1,347.96 | ₩13,479.60 |
| 1000 + | ₩1,323.52 | ₩13,235.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 238-0653
- 제조사 부품 번호:
- MIC2250-1YD5-TR
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Switching Regulator | |
| Output Voltage 1 | 32V dc | |
| Output Current | 52μA | |
| Mount Type | Surface | |
| Number of Outputs | 1 | |
| Efficiency | 90% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | MIC2250 | |
| Number of Pins | 8 | |
| Output Voltage 2 | 32V dc | |
| Package Type | 8-Pin (2 x 2 mm) MLF | |
| Line Regulation | 0.3 to 2 % | |
| Standards/Approvals | RoHS | |
| Maximum Input Voltage | 5.5V dc | |
| Minimum Input Voltage | 2.5V | |
| Load Regulation | 0.1 to 2% | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Switching Regulator | ||
Output Voltage 1 32V dc | ||
Output Current 52μA | ||
Mount Type Surface | ||
Number of Outputs 1 | ||
Efficiency 90% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series MIC2250 | ||
Number of Pins 8 | ||
Output Voltage 2 32V dc | ||
Package Type 8-Pin (2 x 2 mm) MLF | ||
Line Regulation 0.3 to 2 % | ||
Standards/Approvals RoHS | ||
Maximum Input Voltage 5.5V dc | ||
Minimum Input Voltage 2.5V | ||
Load Regulation 0.1 to 2% | ||
The Microchip low EMI boost regulator is a general purpose DC/DC boost switching regulator that features low noise. EMI reduction circuitry, and high efficiency across a wide output-current range. The MIC2250 is optimised for noise-sensitive hand held battery powered applications. A proprietary control method allows low ripple across the output voltage and current ranges. The MIC2250 incorporates a pseudo-random dithering function to reduce EMI levels up to 10 dB enabled by the DITH pin. The MIC2250 is designed for use with inductor values from 4,7μH to 22μH, and is stable with ceramic capacitors from 1μF to 22μF. The MIC2250 attains a high Peak efficiency up to 90% at 100mA and excellent light load efficiency of 80% at 1mA. High power density is achieved with the MIC 2250's internal 34V/2A rated switch, allowing it to power large loads in a tiny footprint.
Operating voltage range 2.5V to 5.5V
Quiescent current 52μA
Constant Peak current control reduces output ripple
Shutdown current 1μA
Over 80% efficient for a 3001 load range
