STMicroelectronics Buck Converter, Surface, 3.3 V dc Output Voltage 38V dc, 3 A Output Current, 1 Outputs

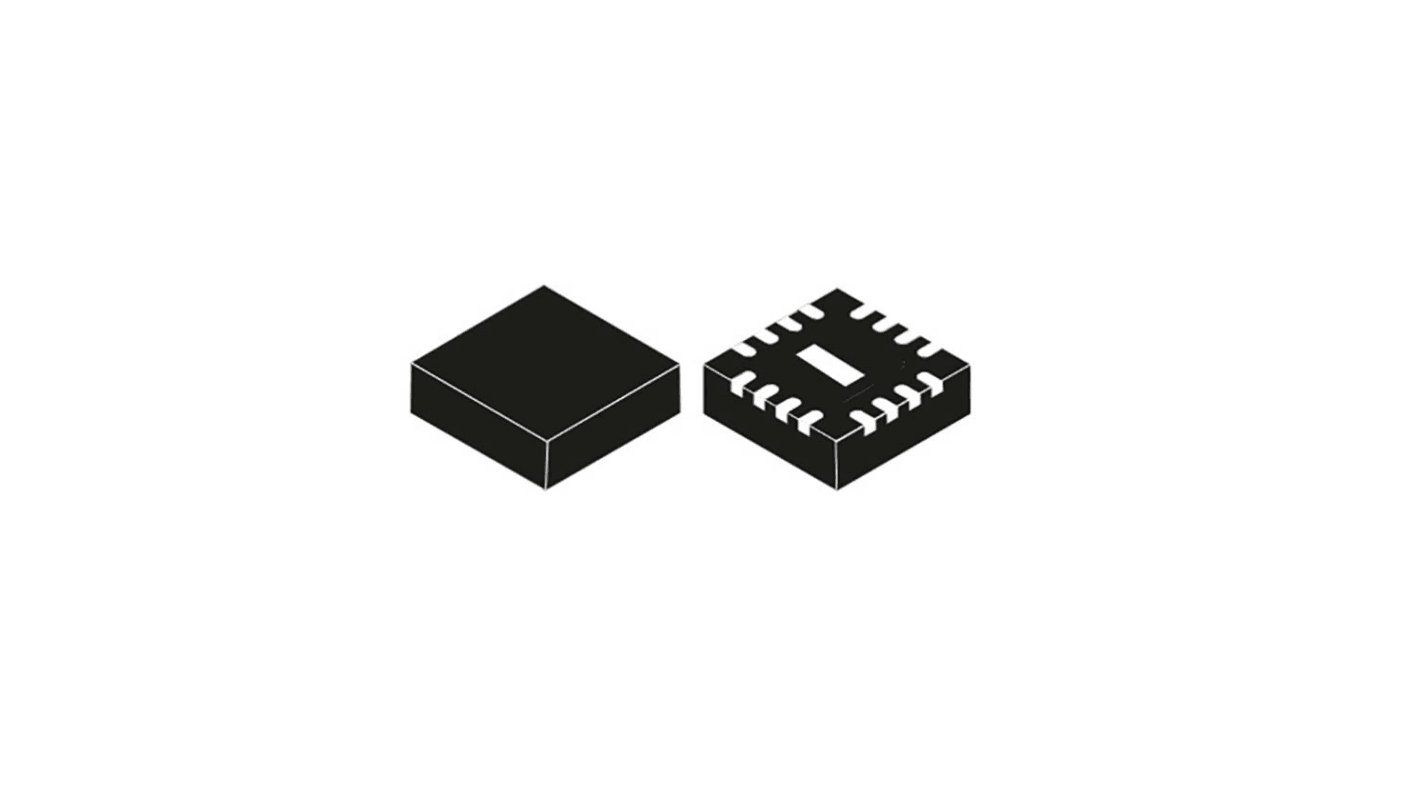

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Switching Regulators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩19,570.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 8월 14일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 745₩3,914.16₩19,570.80
750 - 1495₩3,820.16₩19,100.80
1500 +₩3,760.00₩18,800.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
203-3386
제조사 부품 번호:
L6983C33QTR
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

Buck Converter

Output Voltage 1

3.3 V dc

Output Current

3A

Mount Type

Surface

Number of Outputs

1

Maximum Operating Temperature

150°C

Minimum Operating Temperature

-40°C

Series

L6983

Number of Pins

16

Package Type

QFN-16

Depth

0.8mm

Length

3mm

Width

3 mm

Standards/Approvals

RoHS

Maximum Input Voltage

38V dc

Minimum Input Voltage

3.5V dc

COO (Country of Origin):
CN
The STMicroelectronics L6983 is an easy to use monolithic synchronous step-down regulator. It is capable of delivering up to 3 A DC to the load. It also has a wide input voltage range that makes the device suitable for a broad range of applications. The L6983 is available in both low consumption mode (LCM) and low noise mode (LNM) versions. The LCM maximizes the efficiency at light-load with controlled output voltage ripple which makes the device suitable for battery-powered applications. Whereas, the LNM makes the switching frequency constant and minimizes the output voltage ripple for light load operations, that meets the specification for low noise sensitive applications.

Overvoltage & Thermal protection

Comes with an internal soft-start

Packaged in a QFN16 3x3 type of package with internal compensation thus minimizing design complexity and size
