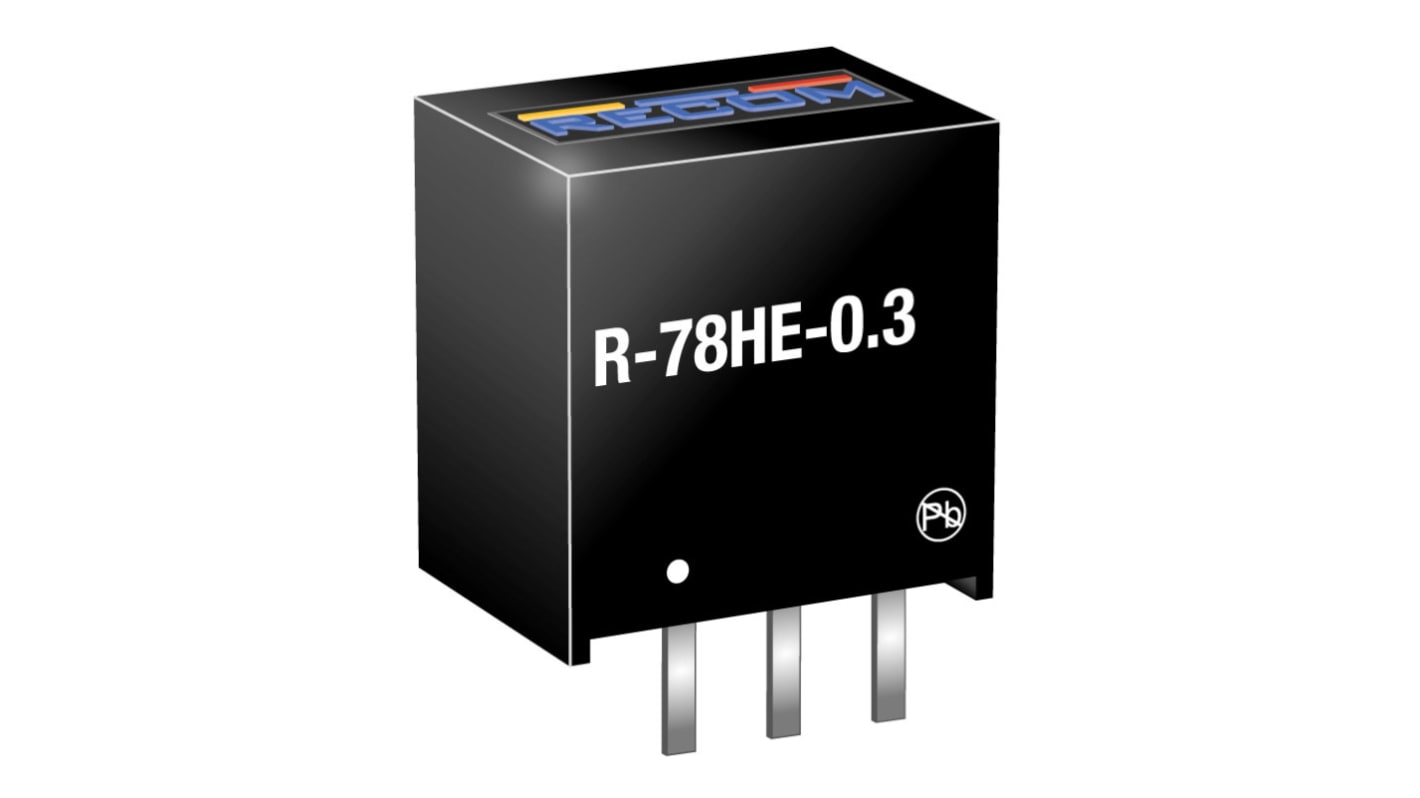

Recom Switching Regulator 72V, 300 mA Output Current, 5 Outputs

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Switching Regulators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 42 units)*

₩368,160.40

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
Tube(s)
Per Tube
한팩당*
1 - 1₩368,160.40₩8,766.44
2 - 3₩360,790.80₩8,589.72
4 +₩353,571.60₩8,418.64

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
193-1789
제조사 부품 번호:
R-78HE5.0-0.3
제조업체:
Recom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Recom

Product Type

Switching Regulator

Output Current

300mA

Number of Outputs

5

Efficiency

83%

Ripple and Noise

150mV Pk-Pk

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Series

R-78HE-0.3

Line Regulation

±1.5 %

Weight

2.6g

Width

8.5 mm

Standards/Approvals

RoHS

Depth

12.5mm

Length

11.5mm

Maximum Input Voltage

72V

MTBF

15000000h

Minimum Input Voltage

6.5V

Load Regulation

1 %

COO (Country of Origin):
TW
The R-78HE-5.0-0.3 is a low cost switching regulator module in a compact package that has been specially designed for battery-powered use, but will find many other high input voltage applications. The exceptionally wide input voltage and operating temperature range, high MTBF (15 mio. hrs), tight regulation and low quiescent current consumption makes this converter ideal for 36V/48V lithium-ion and 12V/24V/48V lead-acid battery-powered applications. The 100V surge withstand capability means that external voltage clamping circuits can be eliminated.

Designed for 12V - 60V battery-powered apps

Wide input range (6.5V - 72V)

100V surge withstand

-40°C to +105°C operation at 48V input, full load

Short circuit protected

Efficiency up to 83%, no need for heatsinks
