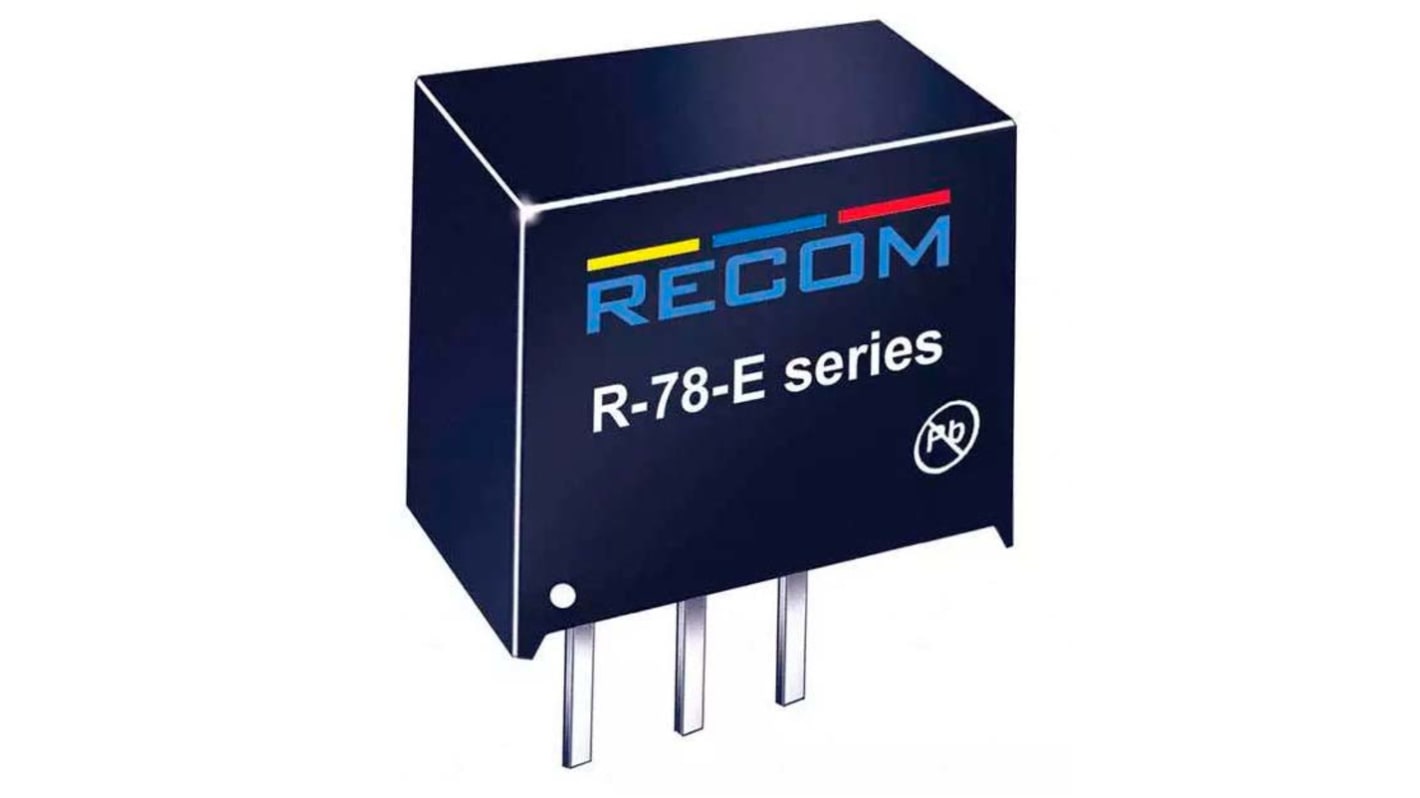

Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 8 → 28V dc Input Voltage, 1A Output Current, 1

모든 Switching Regulators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 42 units)*

₩220,712.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
Tube(s)
Per Tube
한팩당*
1 - 1₩220,712.00₩5,254.60
2 - 3₩216,294.00₩5,149.32
4 +₩211,970.00₩5,045.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
144-6013
제조사 부품 번호:
R-78E5.0-1.0
제조업체:
Recom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Recom

Output Voltage

5V dc

Output Current

1A

Input Voltage

8 → 28V dc

Mounting Type

Through Hole

Number of Outputs

1

Package

SIP

Efficiency

91%

Ripple And Noise

120mV Pk-Pk

Maximum Temperature

+85°C

Minimum Temperature

-40°C

Series

R-78E-1.0

Line Regulation

±1%

Length

11.6mm

Maximum Input Current

1A

MTBF

3875000h

Power Signal Conversion Type

DC-DC

Special Features

Accurate Output Voltage Regulation, Efficiency Upto 91%, High Efficiency, Wide Input Range, Wide Input Range 8 to 28 V

Load Regulation

±1.5%

Width

8.5mm

Protection Features

Over Current Protection, Short Circuit Protection

Depth

10.4mm

Switching Frequency Range

330kHz

Standards Met

AM2 Certified, EN 55022 Class A, EN 55022 Class B, IEC/EN 60950-1, MIL-HDBK 217F, Reach, UL 94 V-0

COO (Country of Origin):
TW

RECOM Switching Regulator, 1A Maximum Input Current, 91% Maximum Efficiency - R-78E-1.0 Series - R-78E5.0-1.0


Adapt your power source to suit your board-mounted hardware with this switching regulator from RECOM. It converts up to 91% of your input voltage into compatible power for your devices, minimising energy waste for high system efficiency. The converter outputs a current of 1A to provide a reliable electrical supply that's suitable for your system's basic functions. As it has compact body measurements of 11.6 (width) x 10.4 (height) x 8.5mm (depth), the component fits neatly into busy systems.

Features & Benefits


• Accepts input voltages between 8 and 28V DC for compatibility with common power supplies
• Draws a 1.5mA quiescent current when not in use for energy efficiency
• Simple through-hole mounting makes for easy installation
• Supports operating temperatures between -40°C and +85°C to work in tough industrial conditions

Applications


• Surveillance cameras
• Battery-powered devices
• Signalling systems
• Telecommunications

Do I need to protect this switching regulator against electrical faults?


No, you don't need to install extra fault protection for this switching regulator because it comes with built-in short-circuit and anti-overcurrent measures. To reduce downtime, the converter automatically resets after short-circuiting.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
