제조사부품번호

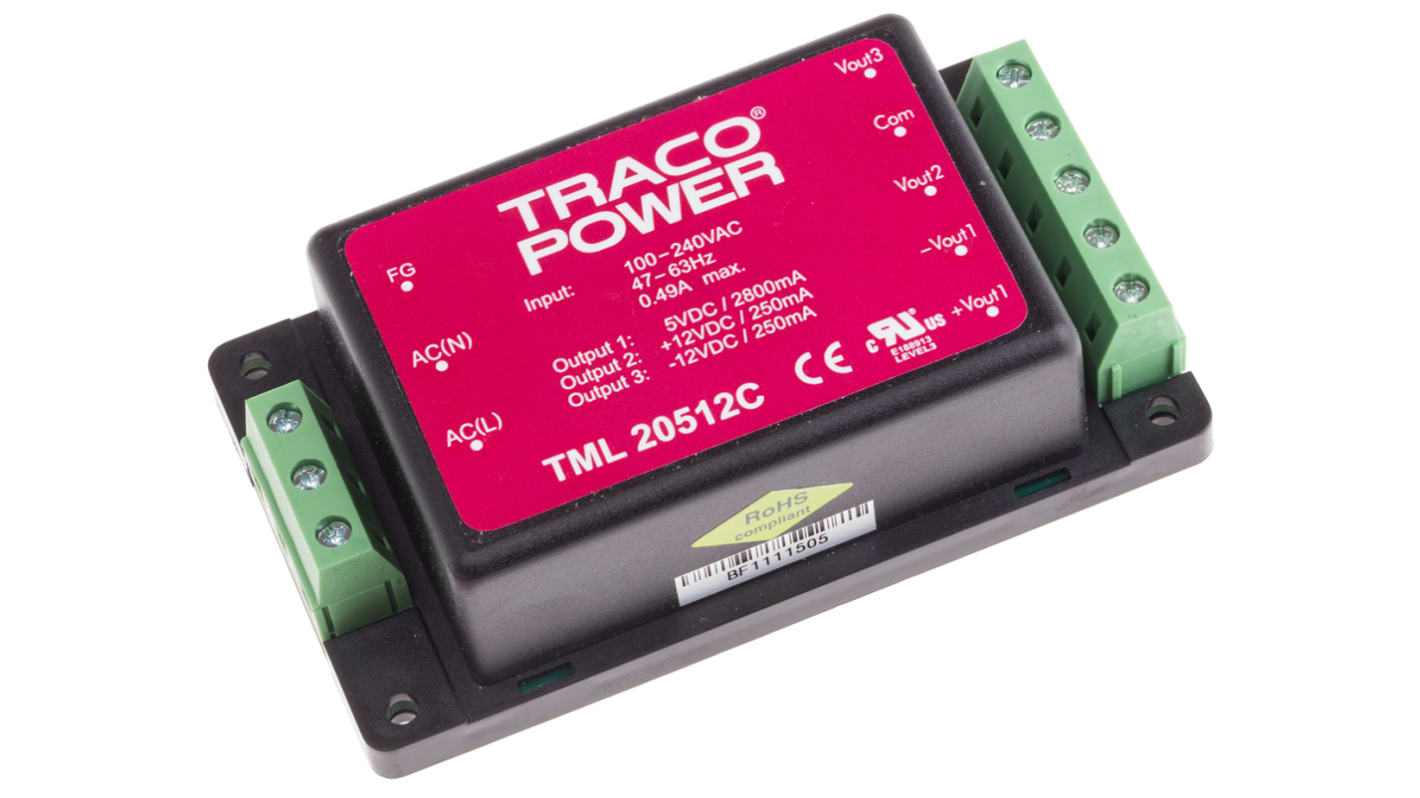

TRACOPOWER, TML 20512C Switching Power Supply 3 Output 12V, 20 W 264V

RS 제품 번호:: 706-6151
제조사 부품 번호:: TML 20512C
제조업체:: TRACOPOWER

TRACOPOWER, TML 20512C Switching Power Supply 3 Output 12V, 20 W 264V

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩117,040.00

40 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩117,040.00
10 - 49	₩112,400.00
50 +	₩107,700.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 706-6151
제조사 부품 번호:: TML 20512C
제조업체:: TRACOPOWER

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	TRACOPOWER
	Product Type	Switching Power Supply
	Maximum Output Voltage	12V
	Number of Outputs	3
	Mount Type	Chassis
	Power	20W
	Minimum Operating Temperature	-25°C
	SMPS Output Current	2.8A
	Maximum Operating Temperature	60°C
	Width	54.6mm
	Length	96mm
	Depth	27.6mm
	Weight	155g
	Standards/Approvals	Class II to IEC/EN 60536, EN 55022, EN 55024, IEC/EN 60950-1, RoHS, UL/cUL 60950-1
	Series	TML
	Efficiency	84%
	Maximum Input Voltage	264V
	Hazardous Area Certification	No
	Minimum Input Voltage	90V ac

	모두 선택
	브랜드 TRACOPOWER
	Product Type Switching Power Supply
	Maximum Output Voltage 12V
	Number of Outputs 3
	Mount Type Chassis
	Power 20W
	Minimum Operating Temperature -25°C
	SMPS Output Current 2.8A
	Maximum Operating Temperature 60°C
	Width 54.6mm
	Length 96mm
	Depth 27.6mm
	Weight 155g
	Standards/Approvals Class II to IEC/EN 60536, EN 55022, EN 55024, IEC/EN 60950-1, RoHS, UL/cUL 60950-1
	Series TML
	Efficiency 84%
	Maximum Input Voltage 264V
	Hazardous Area Certification No
	Minimum Input Voltage 90V ac

COO (Country of Origin):: TW

Traco Power Switching Power Supply, 20W Power Rating, 3 Outputs - TML Series - TML 20512C

Need to convert voltage and current to provide steady power to your equipment? Make the change to this switching power supply from Traco Power. It has three outputs for powering up to three devices, making it a versatile piece of kit. An isolation voltage of 3kV AC means you can charge ahead without fear of damage from electrical hazards. Thanks to the flame-resistant plastic casing, this component is a safe bet in the event of a fire. Screw terminals ensure secure wiring, helping to prevent shaky performance in high-vibration environments.

Features & Benefits

• Broad input voltage range between 90 and 264V AC or 100 and 375V DC for versatility

• Efficiency of 81% means little energy is wasted as heat

• Built-in protection against short circuits for electrical safety

Applications

• Medical equipment

• Industrial automation

• Research laboratories

Can I use this device in harsh industrial conditions?

Yes. This unit has a broad operating temperature range between -25°C and +70°C, so it's suitable for use in harsh industrial environments.

How big is this SMPS?

This component has compact dimensions of 96 (L) x 54.6 (W) x 27.6mm (D), so it's a space-efficient choice for your setup.
