TDK-Lambda, NV1-4G5TT Switching Power Supply 4 Output 24V dc, 180 W 370 V dc, 265V ac
- RS 제품 번호:
- 200-178
- 제조사 부품 번호:
- NV1-4G5TT
- 제조업체:
- TDK-Lambda
대량 구매 할인 받기
10개 더 담고 2% 할인 받기
View bulk pricing optionsSubtotal (1 unit)*
₩403,920.00
재고있음
- 8 개 단위 배송 준비 완료
- 추가로 2026년 11월 20일 부터 1 개 단위 배송
- 추가로 2027년 3월 09일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 절감 |
|---|---|---|
| 1 - 9 | ₩403,920.00 | - |
| 10 - 49 | ₩392,620.00 | 2% |
| 50 + | ₩371,620.00 | 7% |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 200-178
- 제조사 부품 번호:
- NV1-4G5TT
- 제조업체:
- TDK-Lambda
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TDK-Lambda | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 4 | |
| Mount Type | Chassis | |
| Power | 180W | |
| Minimum Operating Temperature | 0°C | |
| SMPS Output Current | 8A | |
| Maximum Operating Temperature | 70°C | |
| Length | 5in | |
| Depth | 1.25in | |
| Weight | 250g | |
| Width | 3in | |
| Standards/Approvals | EN 60601-1-2:2007, EN 61000-6-3:2007, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-6-2:2005 | |
| Maximum Input Voltage | 370V dc, 265V dc | |
| Series | NV1 | |
| Efficiency | 90% | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 90V ac | |
| 모두 선택 | ||
|---|---|---|
브랜드 TDK-Lambda | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 4 | ||
Mount Type Chassis | ||
Power 180W | ||
Minimum Operating Temperature 0°C | ||
SMPS Output Current 8A | ||
Maximum Operating Temperature 70°C | ||
Length 5in | ||
Depth 1.25in | ||
Weight 250g | ||
Width 3in | ||
Standards/Approvals EN 60601-1-2:2007, EN 61000-6-3:2007, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-6-2:2005 | ||
Maximum Input Voltage 370V dc, 265V dc | ||
Series NV1 | ||
Efficiency 90% | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 90V ac | ||
- COO (Country of Origin):
- GB

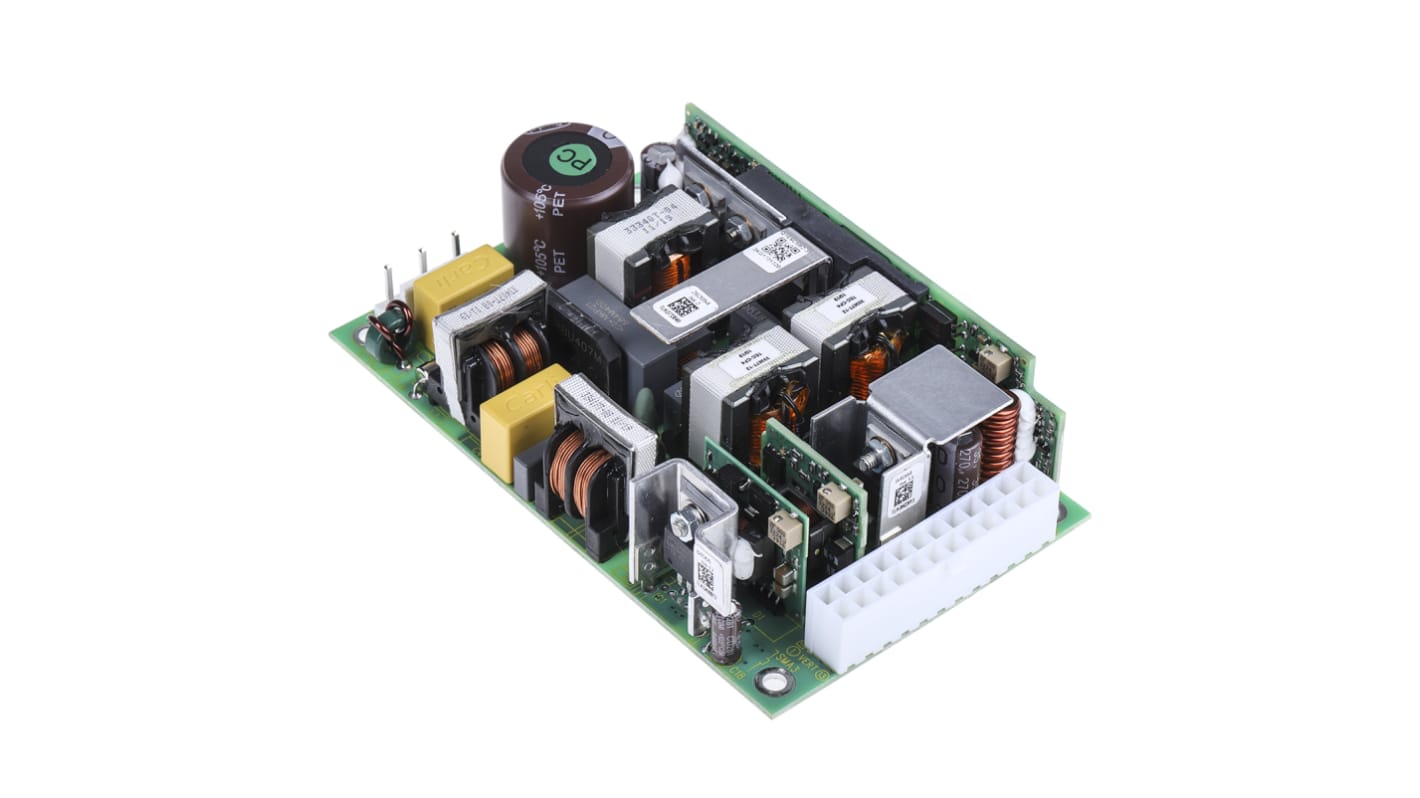

TDK-Lambda Switch Mode Power Supply
The TDK-Lambda 180W quad output AC to DC embedded switch-mode power supply has an output current rating of 7.5A at 24VDC, 8A at 5VDC, 5A at 12VDC and 1A at -12VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.
Note:
Output current is with 2m/s airflow. De-rate above 50°C to 70°C each output by 2.5% per °C. Ripple and noise (P-P maximum) are 50mV or 1% if greater.
Features and Benefits
Adjustable output voltage on outputs 1, 2, and 3
High power density
Low profile, fits 1U applications
Miniature size 3in width and 5in height
No minimum load
Over voltage and over temperature protection
Remote sense on outputs 1 and 2
Short circuit protection
Up to 90% efficiency
Certifications
CSA 22.2 No. 60950
CSA approved
EN 55022-B (as per CISPR.22)
EN 60601-1
EN 60950-1
EN 61000-3-2 (power factor correction)
IEC 60601-1
IEC 60950-1
UL 60950-1
UL approved
Approvals
UL recognised component for US, CSA
