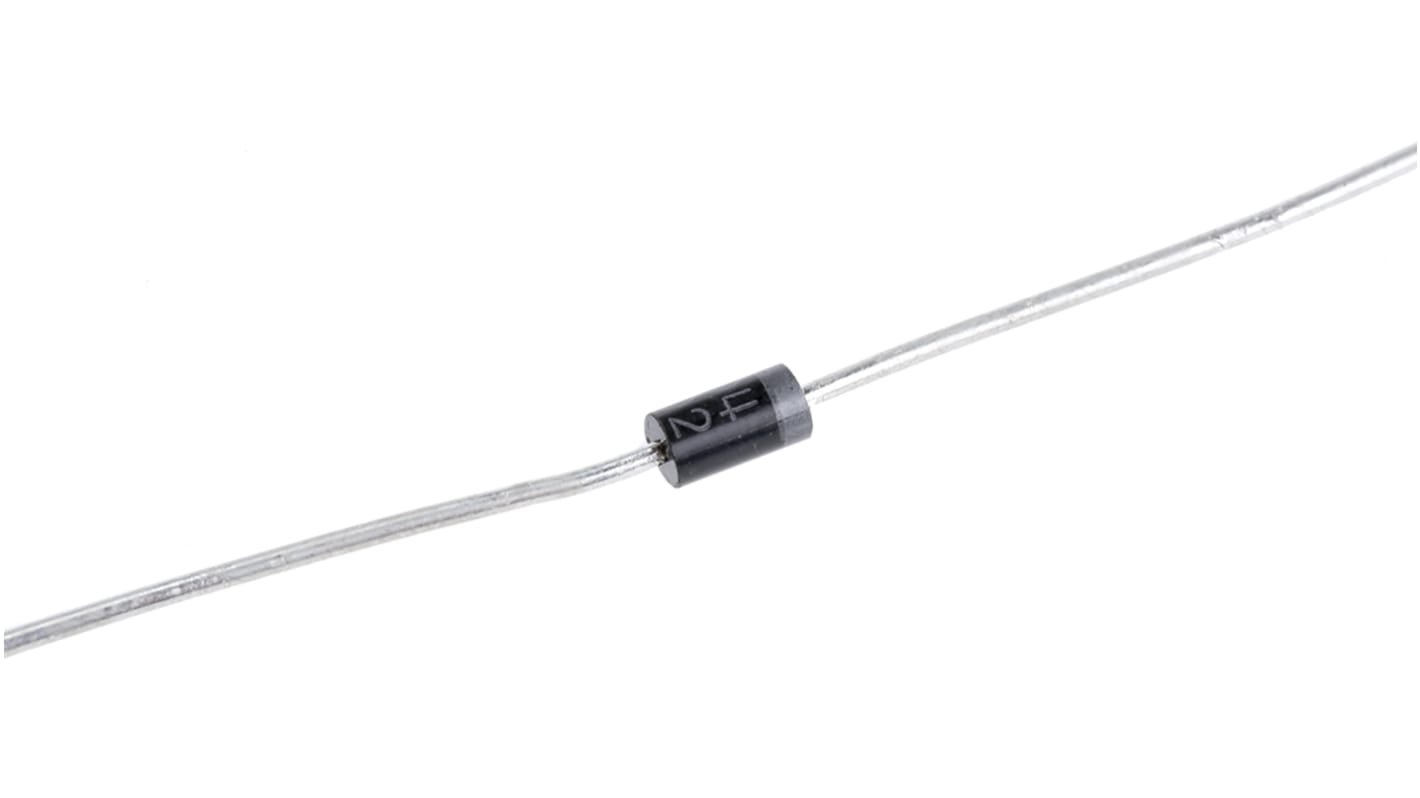

DiodesZetex Switching Diode, Single, 1 A, 2-Pin 50 V DO-41 1N4002-T

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Switching Diodes 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
포장 옵션
RS 제품 번호:
751-2711
제조사 부품 번호:
1N4002-T
제조업체:
DiodesZetex
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

DiodesZetex

Product Type

Switching Diode

Diode Configuration

Single

Maximum Forward Current If

1A

Sub Type

Silicon Junction

Mount Type

Through Hole

Package Type

DO-41

Pin Count

2

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

30A

Maximum Peak Reverse Repetitive Voltage Vrrm

50V

Maximum Forward Voltage Vf

1V

Maximum Operating Temperature

150°C

Length

5.21mm

Standards/Approvals

No

Height

2.72mm

Automotive Standard

No

COO (Country of Origin):
CN

Diodes Inc 1N4001-1N4007 Rectifiers


Benefits:


• Diffused Junction

• High Current Capability and Low Forward Voltage Drop

• Surge Overload Rating to 30A Peak

• Low Reverse Leakage Current

• Lead Free Finish, RoHS Compliant

Features:


• Case: DO-41

• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

• Polarity: Cathode Band

• Marking: Type Number

• Moisture Sensitivity: Level 1 per J-STD-020D

• Mounting Position: Any

• Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208

Diodes and Rectifiers, Diodes Inc
