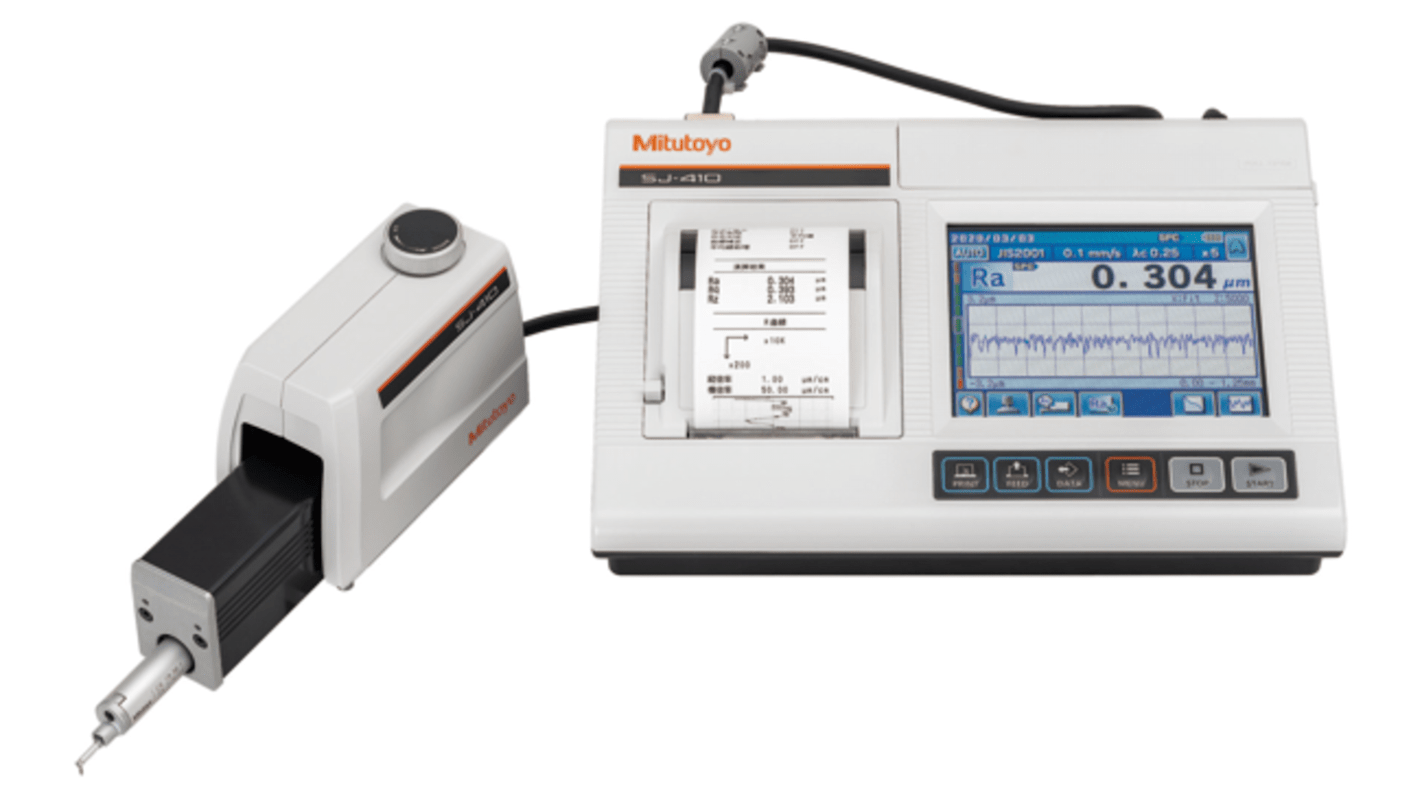

Mitutoyo Skidded, Skidless Standard Drive Unit Type Detector, 800μm Measuring Range, for use with Surftest SJ-412
- RS 제품 번호:
- 235-3669
- 제조사 부품 번호:
- 178-583-12E
- 제조업체:
- Mitutoyo
Subtotal (1 unit)*
₩27,832,572.80
일시적 품절
- 2026년 1월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩27,832,572.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 235-3669
- 제조사 부품 번호:
- 178-583-12E
- 제조업체:
- Mitutoyo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Mitutoyo | |
| Measuring Range | 50mm | |
| Roughness Tester Accessory Type | Standard Drive Unit Type Detector | |
| Measuring Speed | 0.1 mm/s, 0.2 mm/s, 0.05 mm/s, 0.5 mm/s, 1.0 mm/s | |
| Range | 800µm | |
| Measuring Force | 4mN | |
| Stylus Type | Diamond Tip | |
| Profiles | DF Profile, Primary Profile, Roughness Profile, Roughness Motif Profile, Waviness Motif Profile, Waviness Profile | |
| Roughness Standard | ANSI, ISO 1997, JIS 1982, JIS 1994, JIS 2001, VDA | |
| Plug Type | Type G - British 3-pin | |
| Power Source | Battery, Mains | |
| Skidded/Skidless | Skidded, Skidless | |
| Stylus Tip Radius | 5µm | |
| Stylus Tip Angle | 90° | |
| For Use With | Surftest SJ-412 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Mitutoyo | ||
Measuring Range 50mm | ||
Roughness Tester Accessory Type Standard Drive Unit Type Detector | ||
Measuring Speed 0.1 mm/s, 0.2 mm/s, 0.05 mm/s, 0.5 mm/s, 1.0 mm/s | ||
Range 800µm | ||
Measuring Force 4mN | ||
Stylus Type Diamond Tip | ||
Profiles DF Profile, Primary Profile, Roughness Profile, Roughness Motif Profile, Waviness Motif Profile, Waviness Profile | ||
Roughness Standard ANSI, ISO 1997, JIS 1982, JIS 1994, JIS 2001, VDA | ||
Plug Type Type G - British 3-pin | ||
Power Source Battery, Mains | ||
Skidded/Skidless Skidded, Skidless | ||
Stylus Tip Radius 5µm | ||
Stylus Tip Angle 90° | ||
For Use With Surftest SJ-412 | ||
제외
- COO (Country of Origin):
- JP
The Mitutoyo SJ-412 series detector has measuring force of 4mN. It has a measuring range of 50mm for X-axis a nd 800μm, 80μm, 8μm for Z-axis.
Step, step quantity, area, coordinate difference
Helps to level work piece prior to skidless measurement
Helps to level work piece prior to skidless measurement
