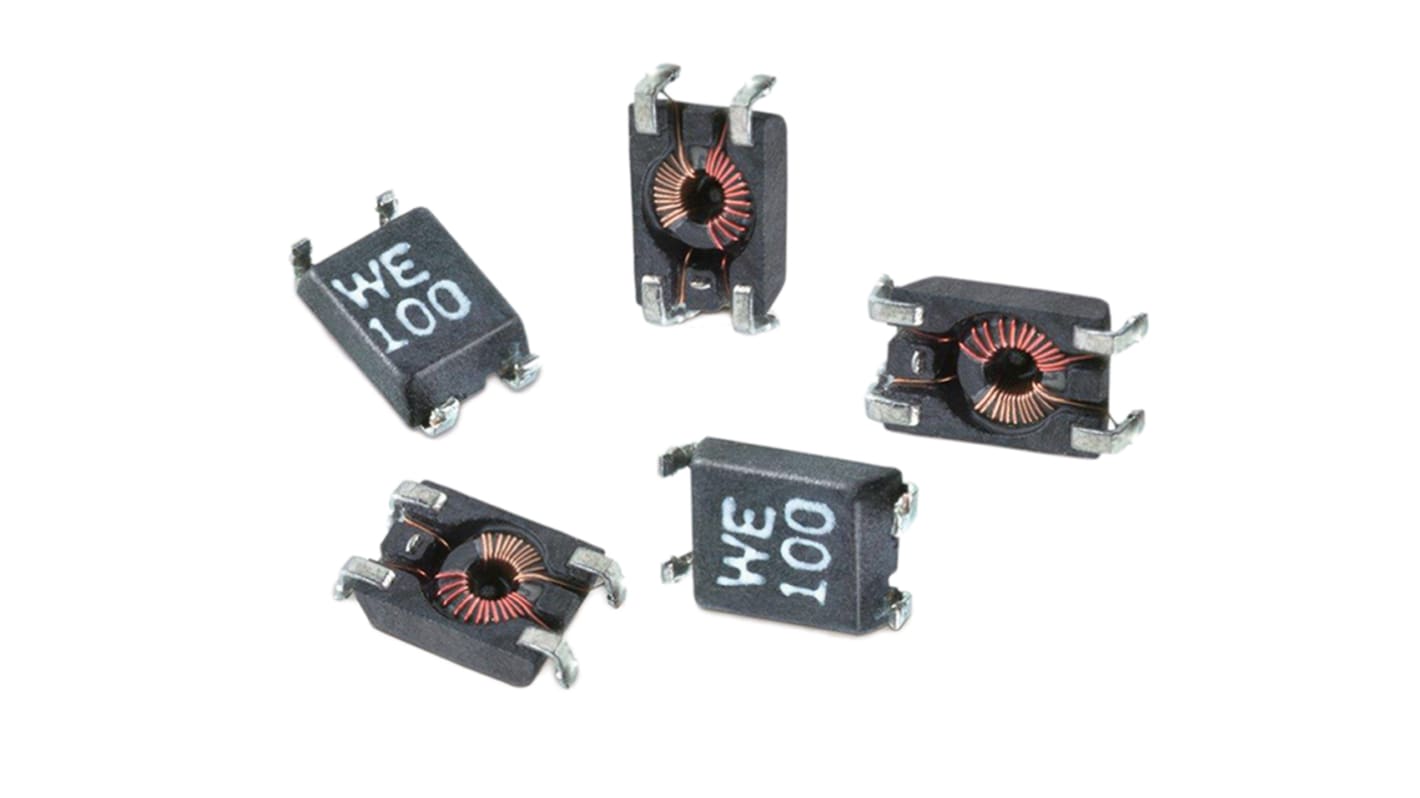

Wurth Elektronik, WE-SL1 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 47 μH Sectional Winding ±50 %
- RS 제품 번호:
- 500-3127
- Distrelec 제품 번호:
- 304-34-195
- 제조사 부품 번호:
- 744212470
- 제조업체:
- Wurth Elektronik
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 pack of 5 units)*
₩30,966.00
재고있음
- 추가로 2026년 6월 15일 부터 220 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 245 | ₩6,193.20 | ₩30,966.00 |
| 250 - 495 | ₩6,056.70 | ₩30,283.50 |
| 500 + | ₩5,924.10 | ₩29,620.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 500-3127
- Distrelec 제품 번호:
- 304-34-195
- 제조사 부품 번호:
- 744212470
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Inductance | 47μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 300mA | |
| Length | 6.5mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 160mΩ | |
| Pin Count | 4 | |
| Inductance Tolerance | ±50 % | |
| Series | WE-SL1 | |
| Maximum Operating Temperature | 105°C | |
| Core Material | Ferrite | |
| Termination Style | Surface Mount | |
| Depth | 3.6mm | |
| Standards/Approvals | REACH, JEDEC JS709B, IEC 61249-2-21, RoHS | |
| Height | 1.65mm | |
| Maximum Self Resonant Frequency | 100kHz | |
| Inductor Construction | Sectional Winding | |
| Moulded | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Inductance 47μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 300mA | ||
Length 6.5mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 160mΩ | ||
Pin Count 4 | ||
Inductance Tolerance ±50 % | ||
Series WE-SL1 | ||
Maximum Operating Temperature 105°C | ||
Core Material Ferrite | ||
Termination Style Surface Mount | ||
Depth 3.6mm | ||
Standards/Approvals REACH, JEDEC JS709B, IEC 61249-2-21, RoHS | ||
Height 1.65mm | ||
Maximum Self Resonant Frequency 100kHz | ||
Inductor Construction Sectional Winding | ||
Moulded No | ||
Common Mode SMD Line Inductors, Type WE-SL1
4-way and 5-way SMD housing
Impedances up to 2000 Ω
Current rating up to 300 mA
low stray/leakage inductance
UL compliant housing (UL 94-VO)
Applications include CAN, USB, firewire, data and power lines
Wurth SMD Common Mode Chokes
