EPCOS, B82498F Unshielded Surface Mount Inductor with a Ceramic Core, 82 nH ±5 % 500 mA Idc Q:60
- RS 제품 번호:
- 246-9845
- 제조사 부품 번호:
- B82498F3820J000
- 제조업체:
- EPCOS
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tape of 10 units)*
₩5,940.80
재고있음
- 5,580 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tape* |
|---|---|---|
| 10 - 90 | ₩594.08 | ₩5,940.80 |
| 100 - 490 | ₩580.92 | ₩5,809.20 |
| 500 - 990 | ₩565.88 | ₩5,658.80 |
| 1000 + | ₩552.72 | ₩5,527.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 246-9845
- 제조사 부품 번호:
- B82498F3820J000
- 제조업체:
- EPCOS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EPCOS | |
| Product Type | Surface Mount Inductor | |
| Inductance | 82 nH | |
| Maximum DC Current | 500mA | |
| Package/Case | Surface Mount | |
| Packaging | Tape & Reel | |
| Length | 2.3mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 0.19Ω | |
| Inductance Tolerance | ±5 % | |
| Series | B82498F | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Termination Style | Surface Mount | |
| Depth | 1.4mm | |
| Height | 1.4mm | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 1500MHz | |
| Inductor Construction | Wirewound | |
| Minimum Quality Factor | 60 | |
| Moulded | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 EPCOS | ||
Product Type Surface Mount Inductor | ||
Inductance 82 nH | ||
Maximum DC Current 500mA | ||
Package/Case Surface Mount | ||
Packaging Tape & Reel | ||
Length 2.3mm | ||
Automotive Standard No | ||
Shielding No | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 0.19Ω | ||
Inductance Tolerance ±5 % | ||
Series B82498F | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Termination Style Surface Mount | ||
Depth 1.4mm | ||
Height 1.4mm | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 1500MHz | ||
Inductor Construction Wirewound | ||
Minimum Quality Factor 60 | ||
Moulded Yes | ||
- COO (Country of Origin):
- HU

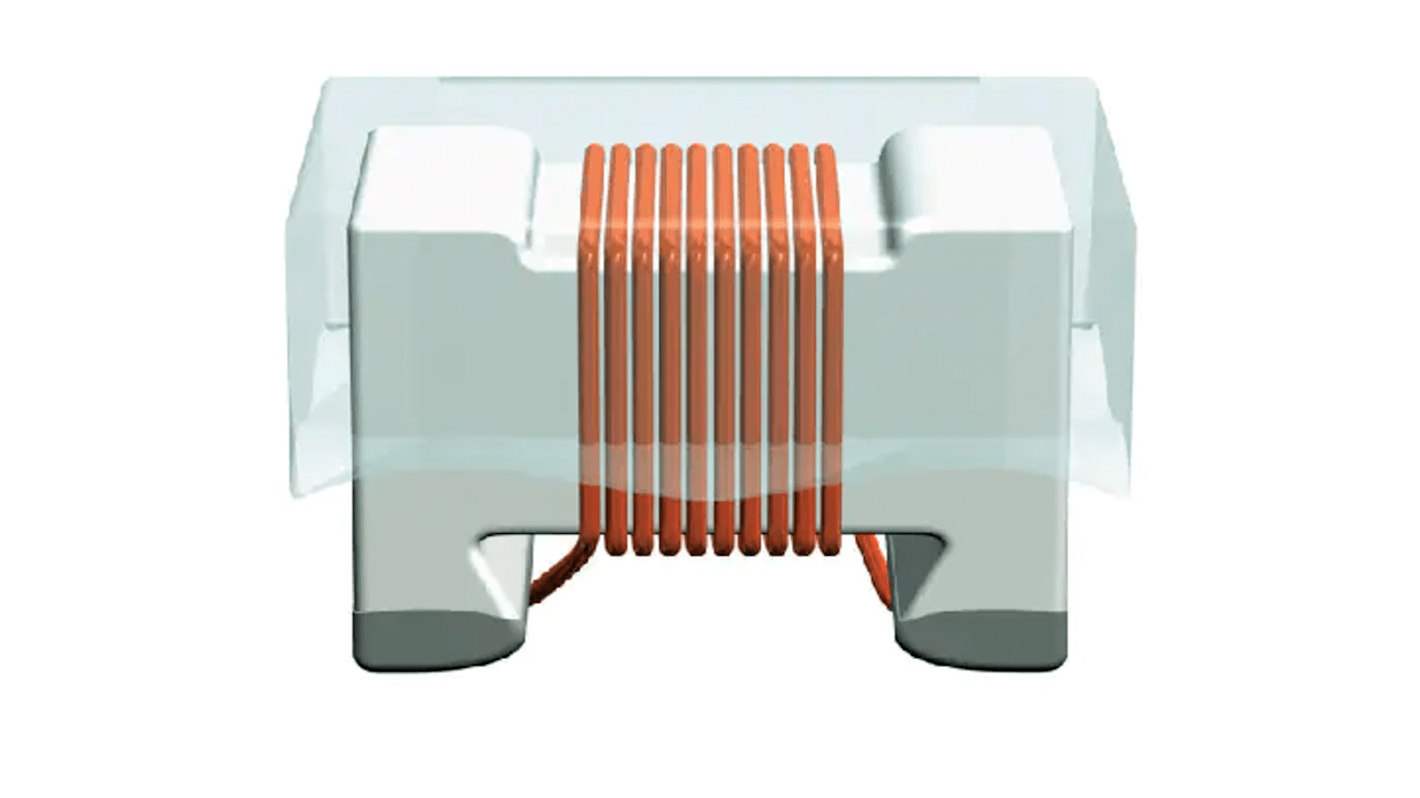

The EPCOS SMD wire wound inductor has Cubic coil with ceramic or ferrite core and laser-cut winding with epoxy-coating.
High resonance frequency
Narrow inductance tolerance
Suitable for lead-free reflow soldering
