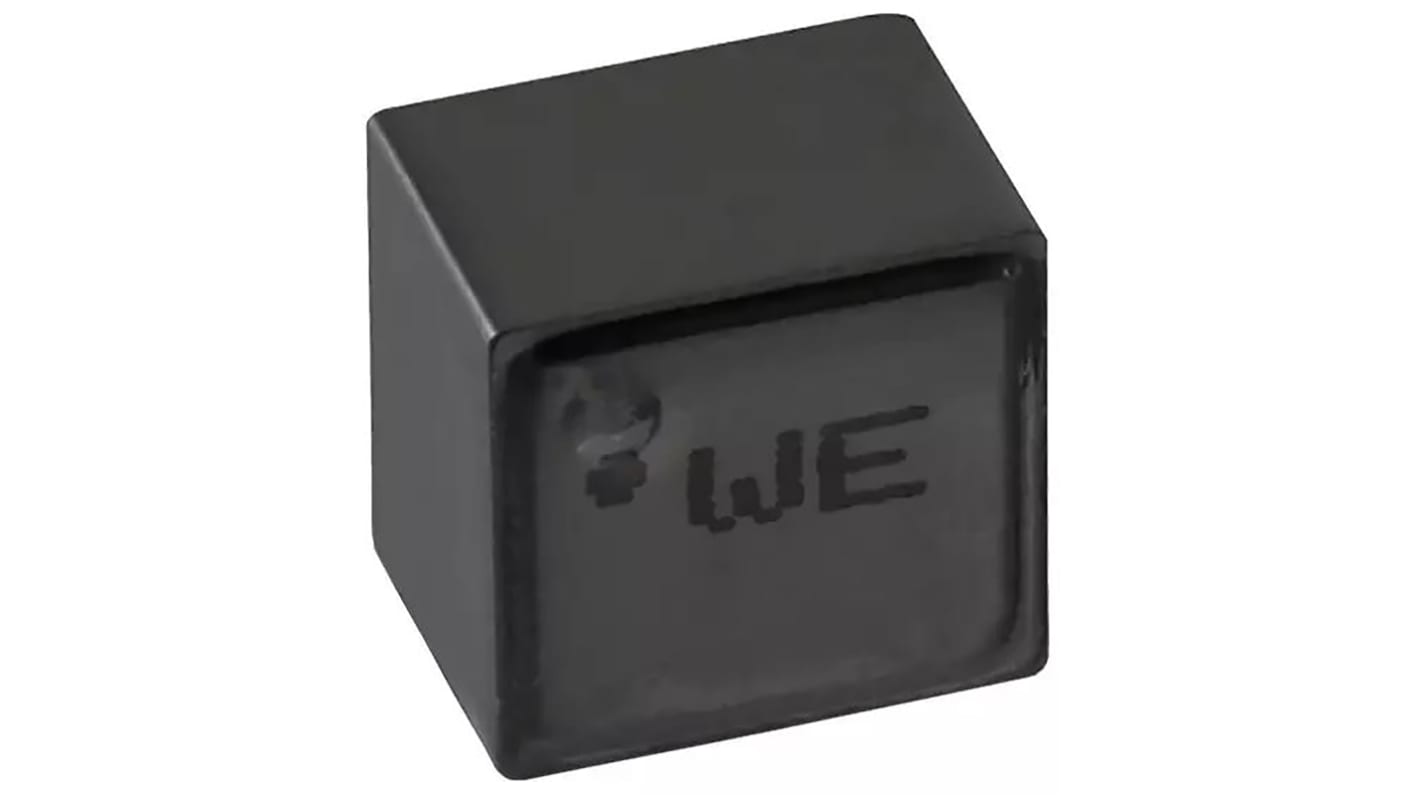

Wurth Elektronik, WE-XHMI, 1090 Shielded Wirewound Surface Mount Inductor with a Powdered Iron Core, 2.2 μH ±20 % 16 A

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Surface Mount Inductors 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 pack of 2 units)*

₩15,795.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 8월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
2 - 74₩7,897.50₩15,795.00
76 - 148₩7,722.00₩15,444.00
150 +₩7,556.25₩15,112.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
124-6635
Distrelec 제품 번호:
304-30-962
제조사 부품 번호:
74439369022
제조업체:
Wurth Elektronik
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Wurth Elektronik

Inductance

2.2μH

Product Type

Wirewound Surface Mount Inductor

Maximum DC Current

16A

Package/Case

1090

Packaging

Tape & Reel

Length

11.6mm

Automotive Standard

AEC-Q200

Shielding

Yes

Pin Count

2

Minimum Operating Temperature

-40°C

Maximum DC Resistance

2.2mΩ

Series

WE-XHMI

Maximum Operating Temperature

125°C

Inductance Tolerance

±20 %

Height

7.9mm

Depth

10.5mm

Termination Style

Surface Mount

Standards/Approvals

RoHS, REACH, JEDEC JS709B, IEC 61249-2-21

Core Material

Powdered Iron

Maximum Self Resonant Frequency

23MHz

Moulded

Yes

Inductor Construction

Wirewound

COO (Country of Origin):
CN

SMD Power Inductors - Wurth WE-XHMI


WE-XHMI SMD power inductors from Wurth Elektronik feature a magnetically shielded compact design. Constructed from a flat wire coil that ensures low copper losses, the composite core material enables these power inductors to cope with high saturation currents. Alongside this high current capability, they can handle high transient current spikes.

Wide operating temperature range between -40°C and +125°C

Magnetically shielded

Low leakage flux noise

High current capability

Product Application Information


Suitable applications for these power inductors include battery powered devices, filters wireless communications devices and mainboards/graphic cards. WE-XHMI power inductors can also be used in DC-DC converters for Field Programmable Gate Arrays (FPGA) or for high current power supplies.
