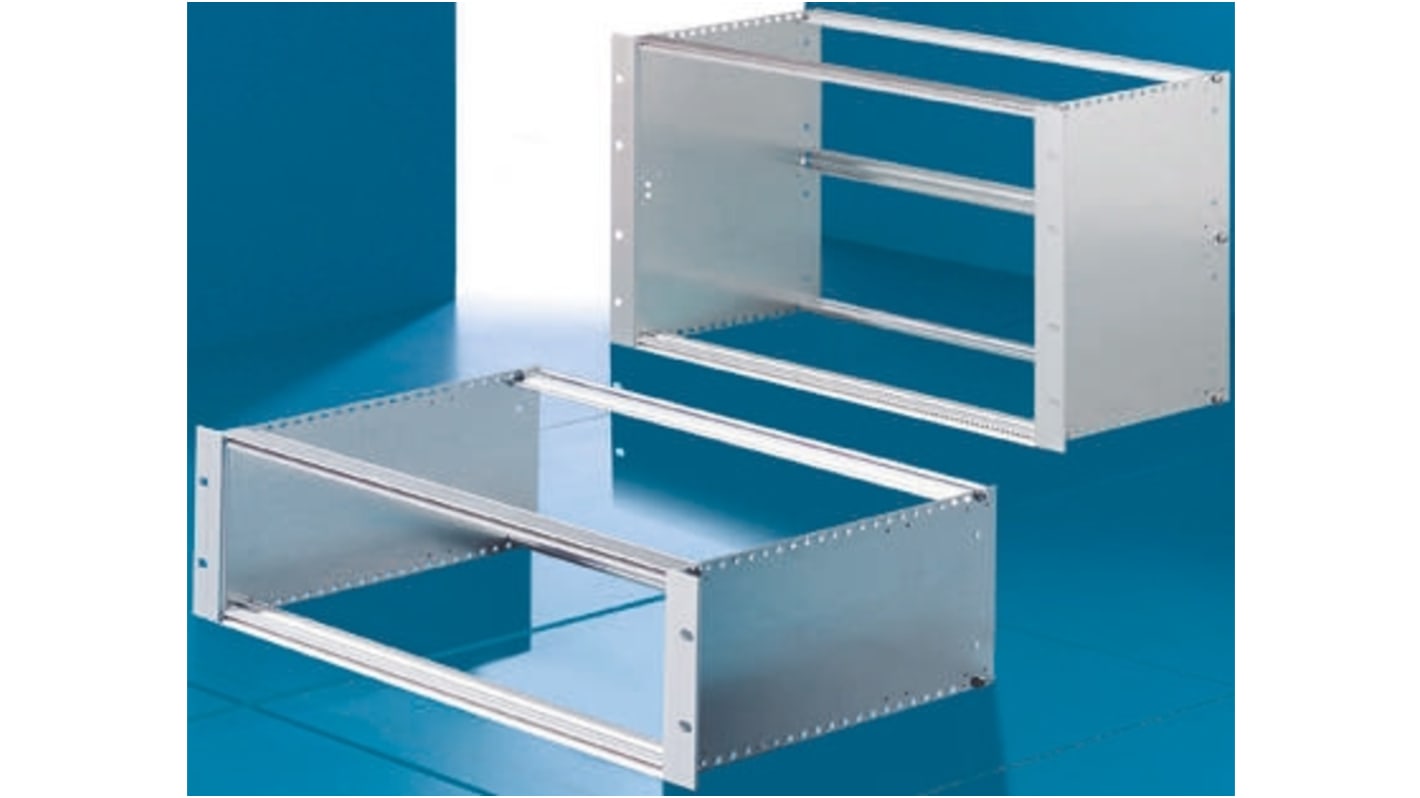

Rittal Ripac ECO Series 3U Aluminium, Steel, Zinc Rack Mount Chassis, 84HP, 235mm Depth

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Subracks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩178,111.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 - 11₩178,111.20
12 +₩176,080.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
186-905
제조 부품 번호:
3688115
제조업체:
Rittal
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Rittal

Series

Ripac ECO

Rack Units

3U

Horizontal Pitch

84HP

Depth

235mm

Colour

Natural

Material

Aluminium, Steel, Zinc

Dimensions

129.4 x 482.6 x 235mm

Height

129.4mm

Width

482.6mm

COO (Country of Origin):
DE

Rittal Sub-Rack Kit, For Mounting Euroboards, Double Euroboards and Plug-In Modules, Threaded Inserts - Ripac ECO Series - 3688115


Setting up your system is a walk in the park with this sub-rack kit from Rittal. Thanks to its dimensions of 129.4 (H) x 482.6 (W) x 235mm (D) when assembled, it's ideal for mounting Euroboards, double Euroboards and plug-in modules. This unit's extruded aluminium flanges are resistant to wear and abrasion for use in harsh environments. Side plates made from steel with a passivated zinc finish stand up to impact and corrosion for a long service life.

Features & Benefits


• Screws and threaded inserts for a sturdy set-up
• 3U modular unit accommodates up to three components for versatility

Applications


• Laboratories
• Telecommunications
• Equipment testing

What's a Euroboard?


A Euroboard is a standard-sized PCB widely used in the electronics industry, making this sub-rack kit highly compatible with many applications.


Ripac Sub-Rack System


The Ripac ECO Sub-Rack System is a range of kits for mounting Euroboards and double Euroboards and plug-in modules, in 482.6mm (19”) racks.
