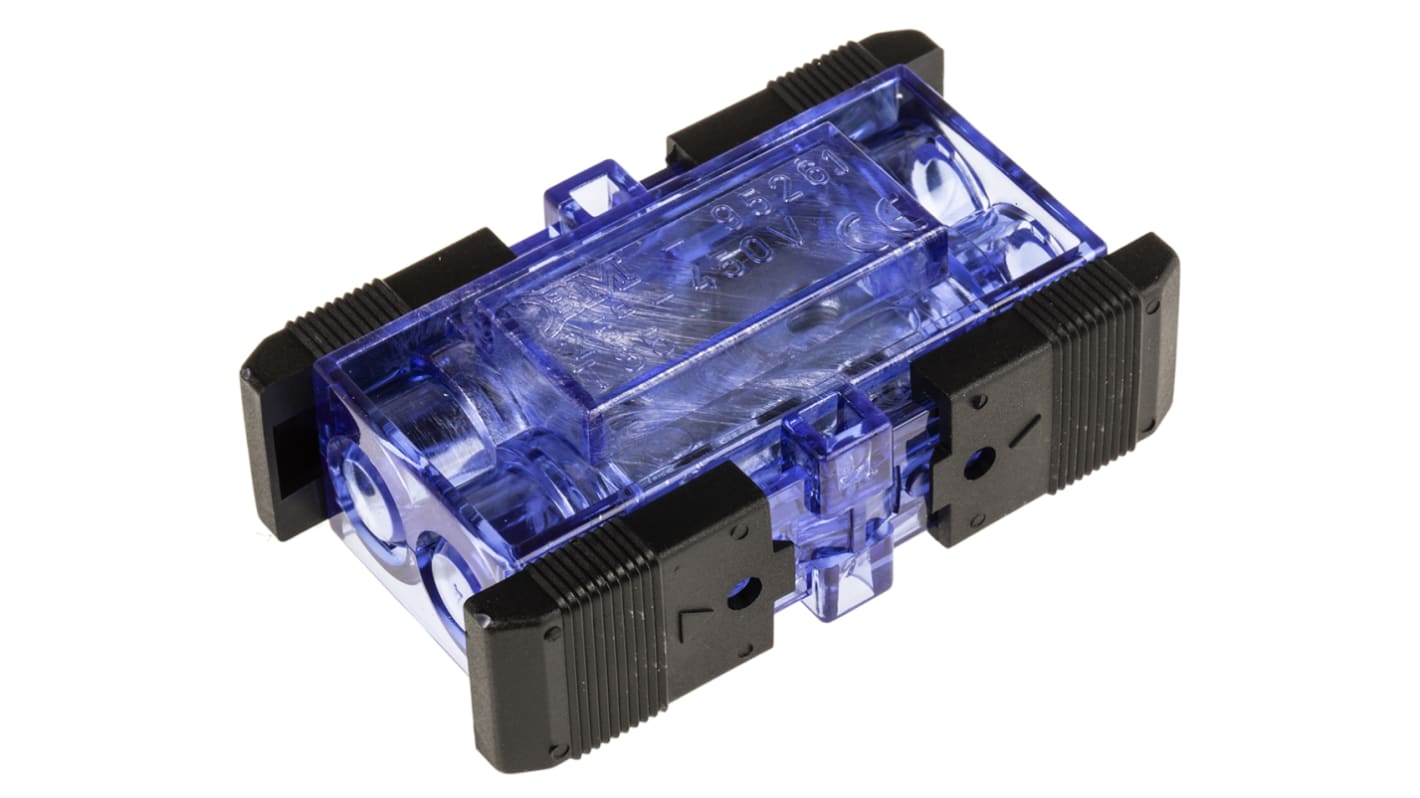

RS PRO Non-Fused Terminal Block, 2-Way, 10mm², 25 mm² Wire, 101A Screw
- RS 제품 번호:
- 492-8788
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩21,723.00
재고있음
- 6 개 단위 배송 준비 완료
- 추가로 2026년 7월 03일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩21,723.00 |
| 25 - 124 | ₩20,845.50 |
| 125 + | ₩17,160.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 492-8788
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Number of Ways | 2 | |
| Product Type | Non-Fused Terminal Block | |
| Current | 101A | |
| Wire Size | 10, 25mm² | |
| Mount Type | Cable | |
| Fused | No | |
| Material | Polycarbonate | |
| Contact Material | Brass | |
| Voltage | 450V | |
| Wire Protection | No | |
| Colour | Clear Blue | |
| Cable CSA | 25mm² | |
| Termination Type | Screw | |
| Gender | Female | |
| Enclosed | No | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Contact Plating | Nickel | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Number of Ways 2 | ||
Product Type Non-Fused Terminal Block | ||
Current 101A | ||
Wire Size 10, 25mm² | ||
Mount Type Cable | ||
Fused No | ||
Material Polycarbonate | ||
Contact Material Brass | ||
Voltage 450V | ||
Wire Protection No | ||
Colour Clear Blue | ||
Cable CSA 25mm² | ||
Termination Type Screw | ||
Gender Female | ||
Enclosed No | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Contact Plating Nickel | ||
- COO (Country of Origin):
- IT
Indirect Clamping
TWIN-BLOCK terminals can be used to junction flexible copper wires between 10 and 120mm², perfect for use in conduit or cable tray. They offer a high grade of mechanical and dielectric strength, IP20 protection and are easy to install.,Their original structure and indirect tightening system, allow the user to work on the junction, whilst avoiding interruption of the main conductor and damage to strands.
Composition of terminal is Brass Nickel-plated clamps and galvanised steel screws protect against possible oxidation, even in presence of ammonia fumes
Insulation is made in self-extinguishing polycarbonate meeting UL 94-V0
Safety clips for easy and safe connector locking. No need for special tools
Voltage rating 450V
Available in four cable CSA sizes
Each terminal will accept a primary and secondary cable, secondary must be of equal or less CSA than primary - not greater
