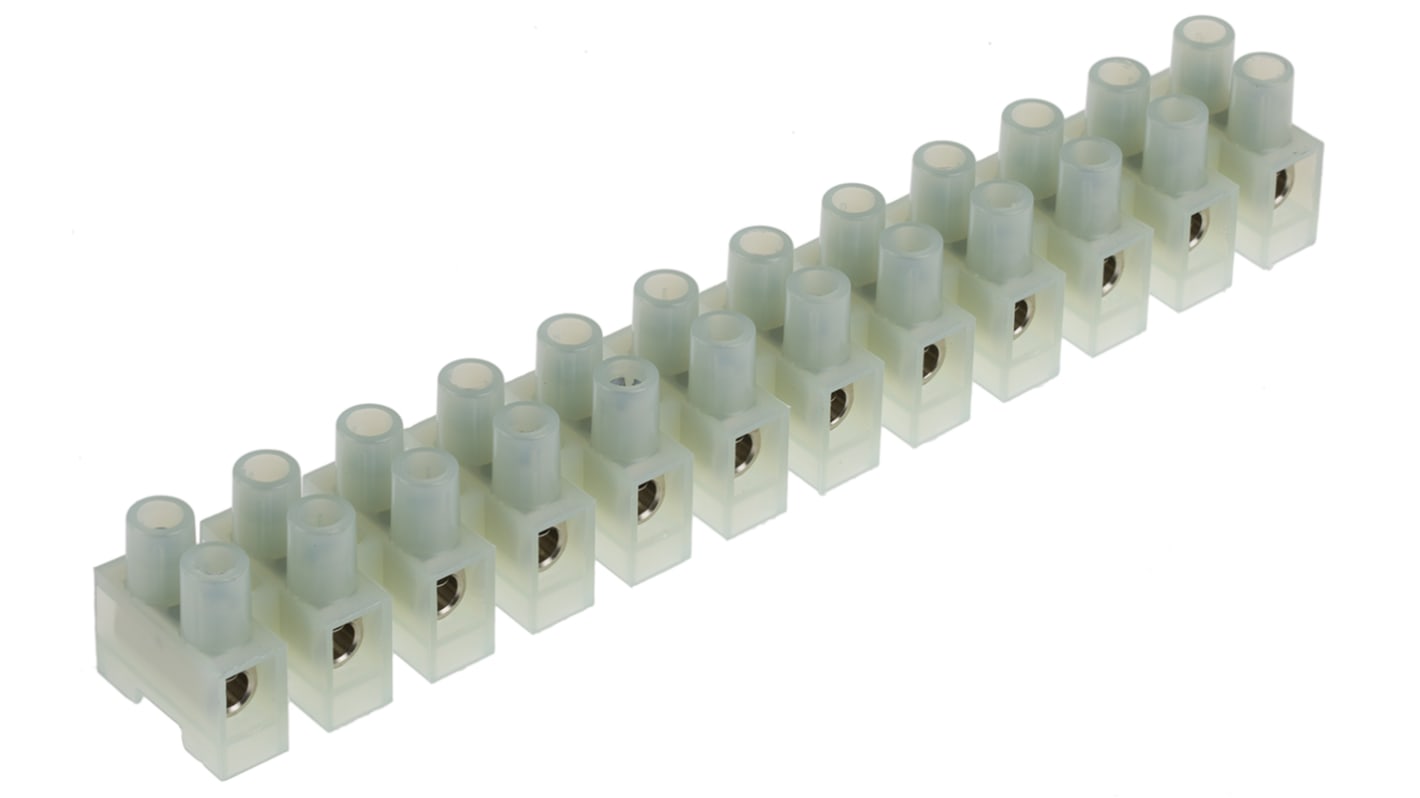

RS PRO Non-Fused Terminal Block, 12-Way, 10mm² Wire, 50A Screw

모든 Standard Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩70,219.50

Add to Basket
수량 선택 또는 입력
재고있음
  • 220 개 단위 배송 준비 완료
  • 추가로 2026년 5월 11일 부터 600 개 단위 배송
  • 추가로 2026년 7월 03일 부터 200 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
5 - 245₩14,043.90₩70,219.50
250 - 1245₩13,650.00₩68,250.00
1250 +₩11,235.90₩56,179.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
464-9700
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Non-Fused Terminal Block

Number of Ways

12

Current

50A

Wire Size

10mm²

Mount Type

Direct

Fused

No

Material

Nylon

Contact Material

Brass

Pitch

15mm

Voltage

400V

Colour

Natural

Wire Protection

No

Cable CSA

10mm²

Gender

Female

Termination Type

Screw

Maximum Operating Temperature

125°C

Enclosed

No

Standards/Approvals

No

Hazardous Area Certification

NO

Contact Plating

Nickel

Nylon 6.6 Terminal Block With Wire Protection Leaf


From RS PRO, this non-fused terminal block presents a reliable and cost-effective solution to wire-to-wire connections. The terminal block is direct-mount and so does not require the use of a DIN Rail to mount. Instead, it features two mounting screws that allow mounting to any surface. This nylon terminal block can easily be cut to a required length, allowing for a highly customizable connector solution.

This RS PRO terminal block also features metallic wire protection strips that isolate the conductor from the terminal screw, for increased safety and reliability.

Features and Benefits

• M3 x 5 mm screw terminals

• Wire protection leaf

• Nylon 6.6 housing with nickel plated brass clamps

Applications

Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.

Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These non-fused terminal blocks are often used in;

• Connecting lighting to switches

• Connecting wiring to a ground

• HVAC Systems

• Power Supplies

FAQs

Q: Are these terminal blocks suitable for all environments?

A: Though terminal blocks are highly versatile, they are not the most secure of connectors, and may not be suitable for high vibration environments or applications where impact shock is a possibility.

Why RS PRO?

RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.

RS PRO has an extensive range of electrical connector components. Whether you're operating in an industrial environment or domestic maintenance, RS PRO is with you every step of the way.
