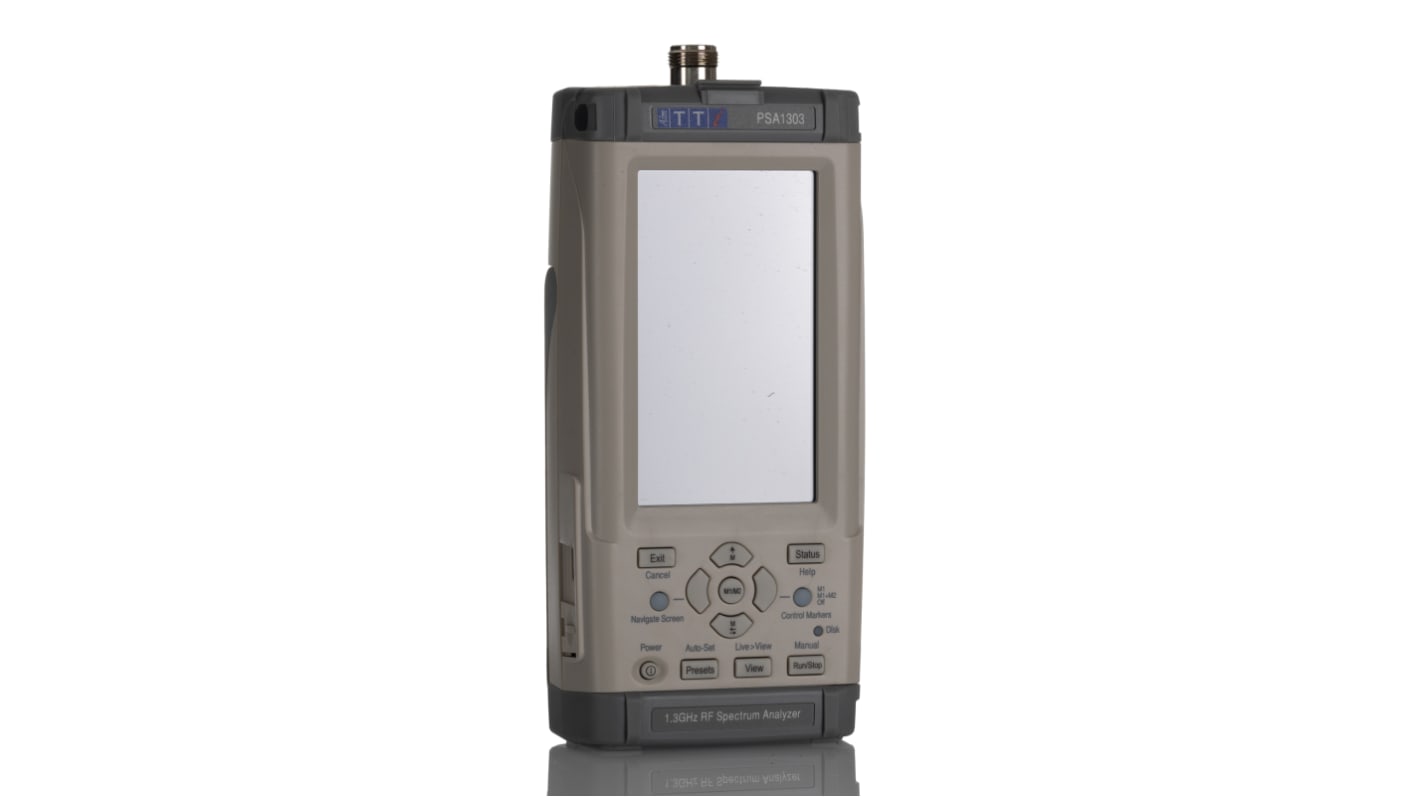

Aim-TTi PSA1303 Handheld PSA Spectrum Analyser, 1.3 GHz

RS 제품 번호:: 238-4073
제조사 부품 번호:: PSA1303
제조업체:: Aim-TTi

Aim-TTi PSA1303 Handheld PSA Spectrum Analyser, 1.3 GHz

Subtotal (1 unit)*

₩2,840,799.00

2 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩2,840,799.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 238-4073
제조사 부품 번호:: PSA1303
제조업체:: Aim-TTi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Aim-TTi
	Product Type	Spectrum Analyser
	Bandwidth	1.3GHz
	Number of Channels	1
	Wave Traces	Live, Reference
	Sweep Modes	Continuous, Single
	Setting Modes	Zero Span
	Series	PSA
	Maximum Frequency	1.3GHz
	Minimum Frequency	1MHz
	Frequency Stability	1 ppm
	Display Type	TFT
	Power Source	Mains
	Screen Size	109.22 mm
	Minimum Operating Temperature	5°C
	Markers	Dual
	Plug Type	Universal
	Maximum Operating Temperature	40°C
	RF Input	N Connector
	Interface Type	USB
	Standards/Approvals	No
	Weight	580g
	Length	92mm
	Width	49mm
	Height	192mm
	Desktop/Handheld	Handheld
	Model Number	PSA1303
	Battery Type	Lithium-ion
	Battery Life	6h

	모두 선택
	브랜드 Aim-TTi
	Product Type Spectrum Analyser
	Bandwidth 1.3GHz
	Number of Channels 1
	Wave Traces Live, Reference
	Sweep Modes Continuous, Single
	Setting Modes Zero Span
	Series PSA
	Maximum Frequency 1.3GHz
	Minimum Frequency 1MHz
	Frequency Stability 1 ppm
	Display Type TFT
	Power Source Mains
	Screen Size 109.22 mm
	Minimum Operating Temperature 5°C
	Markers Dual
	Plug Type Universal
	Maximum Operating Temperature 40°C
	RF Input N Connector
	Interface Type USB
	Standards/Approvals No
	Weight 580g
	Length 92mm
	Width 49mm
	Height 192mm
	Desktop/Handheld Handheld
	Model Number PSA1303
	Battery Type Lithium-ion
	Battery Life 6h

Aim-TTi PSA Series 3 Series Spectrum Analyser, 1.3 GHz Bandwidth, 3 h Battery Life - PSA1303

This handheld spectrum analyser by Aim-TTi offers exceptional performance with a bandwidth of 1.3 GHz. With its portable design and user-friendly features, it provides precise RF signal analysis for various applications.

Features & Benefits

• Lightweight and handheld design for easy portability

• TFT display for clear visibility of wave traces

• USB interface for seamless connectivity

• Li-ion battery with more than 3 hours of continuous operation

• Frequency range from 1 MHz to 1.3 GHz for comprehensive analysis

• High-resolution bandwidth selection for accurate measurements

Applications

• Interference Analysis

• Antenna Alignment

• Signal Strength Mapping

• Covert Transmitter Detection

• Spurious Emissions

• EMC Frequency Evaluations

Will it provide accurate frequency measurements in dBm or dBμV?

Yes, it provides accurate frequency measurements in both dBm and dBμV, ensuring precise analysis of signal strength.

Can it be used for antenna alignment applications?

Yes, this spectrum analyzer is suitable for antenna alignment applications, offering the necessary functionality and features for aligning antennas accurately.

Is the Li-ion battery rechargeable and long-lasting?

Yes, the spectrum analyzer features a rechargeable Li-ion battery that provides long-lasting performance, making it ideal for portable use in various environments.

Does it offer frequency range presets for quick setup changes?

Yes, it offers frequency range presets, allowing users to quickly change setup configurations for different measurement requirements, enhancing efficiency and productivity.

How does the USB interface improve connectivity for PC usage?

The USB interface of this spectrum analyzer improves connectivity for PC usage by enabling seamless communication between the analyzer and a computer, facilitating data transfer, remote control, and analysis using dedicated software.
