Keysight Technologies N9323C Desktop N932x-C BSA-C Spectrum Analyser Spectrum Analyser, 13600 MHz
- RS 제품 번호:
- 230-1207
- Distrelec 제품 번호:
- 302-39-247
- 제조사 부품 번호:
- N9323C
- 제조업체:
- Keysight Technologies
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 230-1207
- Distrelec 제품 번호:
- 302-39-247
- 제조사 부품 번호:
- N9323C
- 제조업체:
- Keysight Technologies
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Keysight Technologies | |
| Product Type | Spectrum Analyser | |
| Bandwidth | 13600MHz | |
| Number of Channels | 1 | |
| Sweep Modes | Single, Continuous | |
| Series | N932x-C BSA-C Spectrum Analyser | |
| Power Source | Mains | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | CSA C22.2 No. 61010104, ICES001, UL 610101 2nd Edition, IEC/EN 610101 2nd Edition | |
| Weight | 7.9kg | |
| Interface Type | USB, LAN | |
| Desktop/Handheld | Desktop | |
| Model Number | N9323C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Keysight Technologies | ||
Product Type Spectrum Analyser | ||
Bandwidth 13600MHz | ||
Number of Channels 1 | ||
Sweep Modes Single, Continuous | ||
Series N932x-C BSA-C Spectrum Analyser | ||
Power Source Mains | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals CSA C22.2 No. 61010104, ICES001, UL 610101 2nd Edition, IEC/EN 610101 2nd Edition | ||
Weight 7.9kg | ||
Interface Type USB, LAN | ||
Desktop/Handheld Desktop | ||
Model Number N9323C | ||

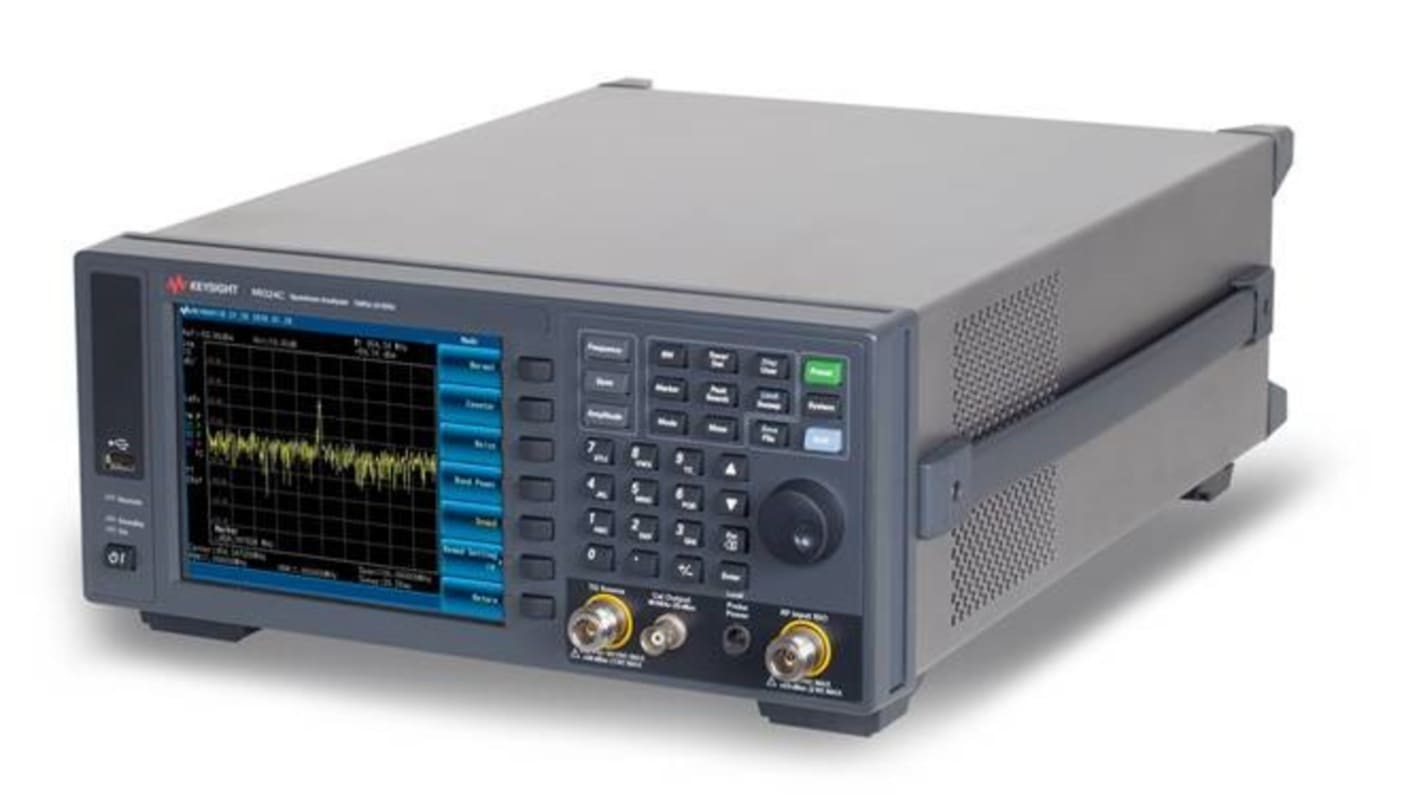

The Keysight Technologies N9323C spectrum analyzer has a bandwidth of 1MHz to 13.6GHz. It has continuous and single sweep modes. This analyzer has Clear/write, maximum hold, minimum hold, average trace functions. It has display modes such as Spectrogram, Spectrum trace.
Tough to beat simplicity and efficiency
Operating temperature range between +5 and +45°C
Note
Manufacturer’s Warranty
