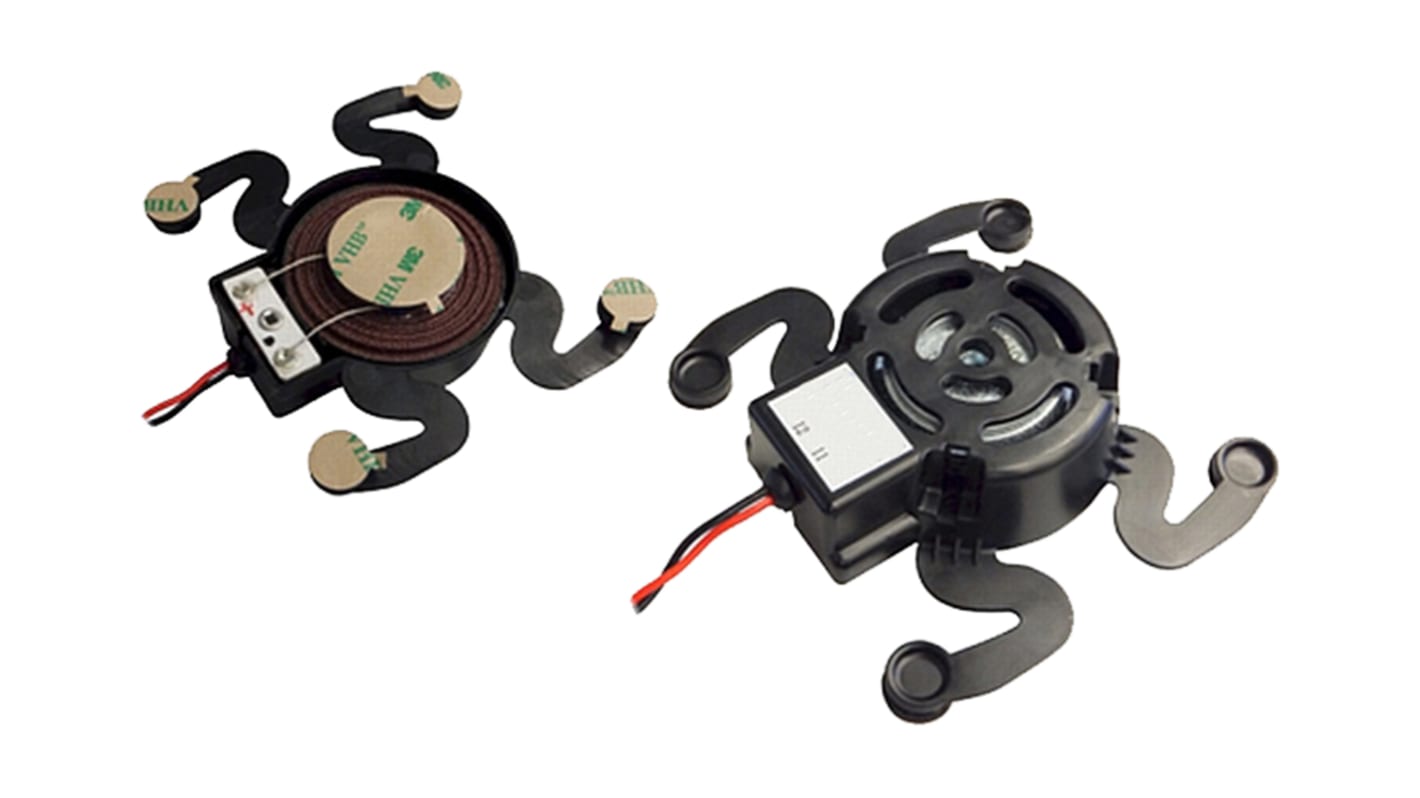

Tectonic 93.1 mm dia, 10W Full Range, 8 Ω, 200 Hz 20 kHz

모든 Speaker Drivers 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
876-5247
제조사 부품 번호:
TEAX25C10-8/SP
제조업체:
Tectonic
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Tectonic

Product Type

Audio Exciter

Impedance

8Ω

Output Power

10W

Frequency Type

Full Range

Diameter

93.1 mm

Driver Shape

Round

Width

83.19 mm

Standards/Approvals

No

Weight

95g

Length

93.1mm

Depth

22.8mm

Minimum Frequency Response

200Hz

Maximum Frequency Response

20kHz

Cone/Dome Material

Polypropylene

COO (Country of Origin):
CN

Tectonic Elements Audio Exciters


A range of highly-optimised electro-dynamic audio transducers from Tectonic Elements that can be used to turn flat surfaces into effective high quality loudspeakers. With a wide range of sizes and styles, and power ratings up to 30W, these versatile moving-coil exciters are suitable for a diverse range of both indoor and outdoor applications including modes of transport, consumer electronics, and industrial type products. Excellent sound radiators can be produced using a variety of rigid materials including paper honeycomb and foam board and plastics. These compact devices offer space and weight savings, and can be used to create robust, ’invisible’ loudspeakers that deliver full range audio with wide sound dispersion.

Classic General Purpose Audio Exciters:


13mm Voice coil, 1W, 8ohm 876-5235 TEAX13C02-8/RH

19mm Voice coil, 2W, 8ohm 876-5266 TEAX19C01-8

25mm Voice coil, 5W, 8ohm 876-5244 TEAX25C05-8

25mm Voice coil, 10W, 8ohm 876-5269 TEAX25C10-8/HS

Low-profile Audio Exciter:


19mm Voice coil, 21, 4ohm 876-5263 TEAX19C01-4/LP

Soundpax Audio Exciter:


25mm Voice coil, 10W 8ohm 876-5247 TEAX25C10-8/SP

Special Application Exciters:


Compact 14mm Voice coil, 0.8W, 8ohm 876-5272 TEAX14C02-8

High Power 32mm Voice coil, 10W, 8ohm 876-5275 TEAX32C20-8

High Power 32mm Voice coil, 30W, 4ohm 876-5279 TEAX32C30-4/B

Moving Coil Exciters
