Subtotal (1 unit)*
₩9,007.08
재고있음
- 6,672 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩9,007.08 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 628-4434
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Speaker Part | Speaker Driver | |
| Impedance | 8Ω | |
| Nominal Rated Power | 300mW | |
| Diameter | 66mm | |
| Driver Shape | Round | |
| Speaker Driver Size | 8 cm (3 in) and Under | |
| Length | 66mm | |
| Width | 66mm | |
| Depth | 17.4mm | |
| Cone/Dome Material | Mylar | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Speaker Part Speaker Driver | ||
Impedance 8Ω | ||
Nominal Rated Power 300mW | ||
Diameter 66mm | ||
Driver Shape Round | ||
Speaker Driver Size 8 cm (3 in) and Under | ||
Length 66mm | ||
Width 66mm | ||
Depth 17.4mm | ||
Cone/Dome Material Mylar | ||
- COO (Country of Origin):
- TW

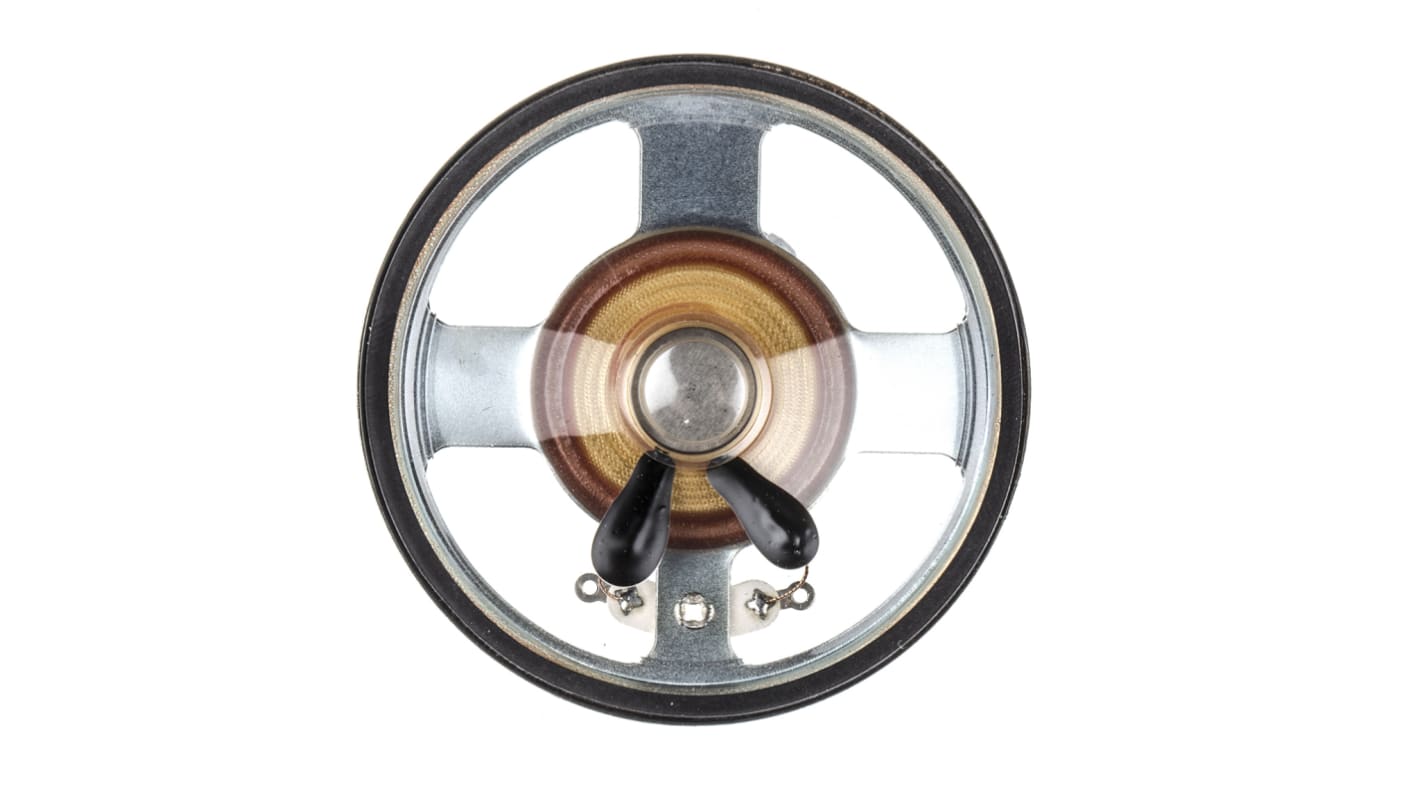

RS PRO Round Speaker Driver, 300 mW nom, 8 Ω
The RS PRO round speaker driver is a reliable weatherproof component in sound delivery systems that require multiple tones. The mylar cone speaker functions in damp conditions where paper equivalents aren't an option.
Mylar is a light and flexible stretched polyester film that's also durable, meaning this speaker driver can be used both indoors and out. Installation is simple, with two soldering points to fix the driver into place. This 66 mm black round speaker has a nominal power rating of 300 mW and impedance of 8 Ω. As part of the RS PRO range, this product has been engineer-tested for performance and quality.
Thanks to its moisture-resistant properties, this mylar cone speaker driver can be used in outdoor loudspeakers and alarms. It's also suitable for PA and intercom systems in offices and schools.
Mylar is a light and flexible stretched polyester film that's also durable, meaning this speaker driver can be used both indoors and out. Installation is simple, with two soldering points to fix the driver into place. This 66 mm black round speaker has a nominal power rating of 300 mW and impedance of 8 Ω. As part of the RS PRO range, this product has been engineer-tested for performance and quality.
Thanks to its moisture-resistant properties, this mylar cone speaker driver can be used in outdoor loudspeakers and alarms. It's also suitable for PA and intercom systems in offices and schools.
Features and Benefits
• Nominal power rating of 300 mW
• Speaker impedance 8 Ω
• Round speaker
• Dimensions of 66 mm (W) and 66 mm (L)
• Mylar cone material
• Speaker driver size 8 cm (3 in) and under
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• Speaker impedance 8 Ω
• Round speaker
• Dimensions of 66 mm (W) and 66 mm (L)
• Mylar cone material
• Speaker driver size 8 cm (3 in) and under
• RoHS (Restriction of Hazardous Substances) compliant
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
