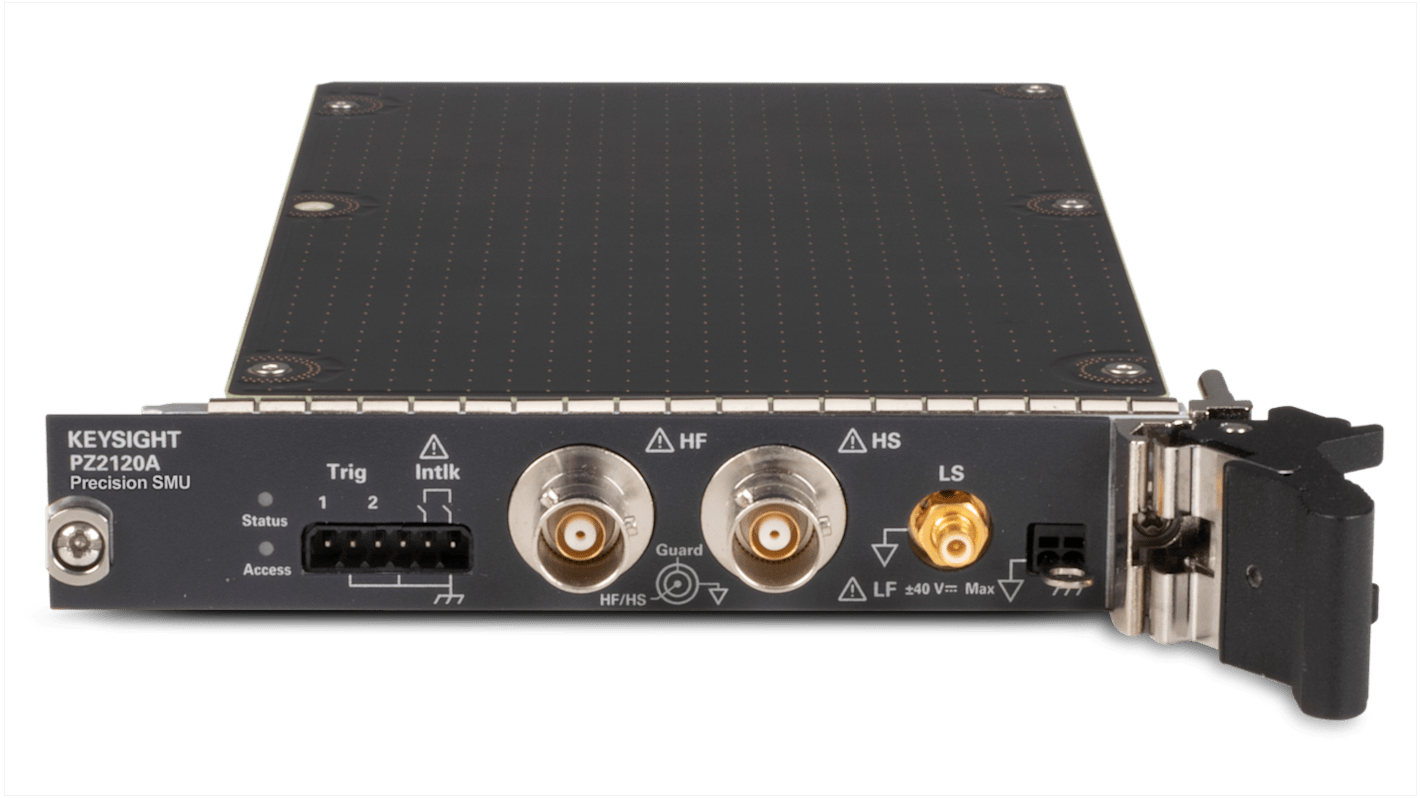

Keysight Technologies PZ2100 Series Source Meter, 210 V, 315 mA, 10.5W Output

모든 Source Meters 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
267-3579
Distrelec 제품 번호:
303-84-491
제조사 부품 번호:
PZ2110A
제조업체:
Keysight Technologies
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Keysight Technologies

Product Type

Source Meter

Series

PZ2100

Source Meter Function

Measure Voltage and Current

Touch Screen

No

Number of Channels

1

Source Voltage Range

210 V

Source Current Range

315 mA

Output Power

10.5W

Standards/Approvals

RoHS

COO (Country of Origin):
MY

Precision Source/Measure Unit, 1.25 MSa/s, 10 fA, 210 V, 315 mA DC/pulse


The Keysight Technologies high resolution SMU that has fast digitizer mode with sampling rate up to 1.25 MSa/s and fast transient with 1.4 V/μs slew rate at maximum.

10 fA resolution with 30 fArms measurement noise

Narrow pulse down to 20 μs pulse width

Note

Manufacturer’s Warranty
