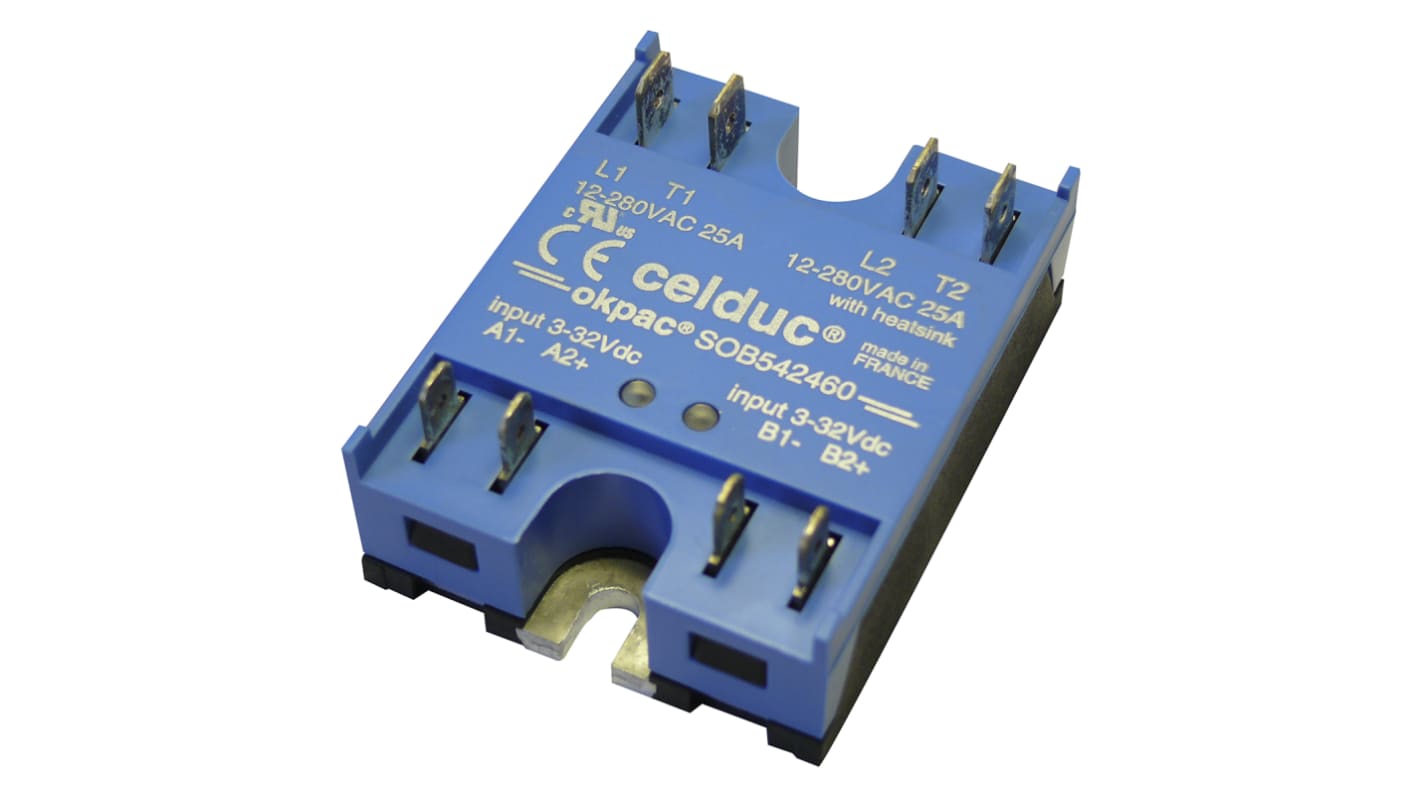

Celduc SOB5 Series Solid State Relay, 25 A Load, DIN Rail Mount, 280 V ac Load, 32V dc Control
- RS 제품 번호:
- 917-4826
- 제조사 부품 번호:
- SOB542460
- 제조업체:
- Celduc
Subtotal (1 unit)*
₩159,743.60
재고있음
- 추가로 2026년 3월 20일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩159,743.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 917-4826
- 제조사 부품 번호:
- SOB542460
- 제조업체:
- Celduc
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Celduc | |
| Maximum Load Current | 25A | |
| Product Type | Solid State Relay | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 280V ac | |
| Minimum Load Voltage | 12V ac | |
| Minimum Control Voltage | 3V dc | |
| Maximum Control Voltage | 32V dc | |
| Series | SOB5 | |
| Terminal Type | FASTON | |
| IP Rating | IP20 | |
| Contact Configuration | SPST | |
| On State Resistance | 16mΩ | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CE, CSA, cURus, EAC, RoHS, UKCA, VDE | |
| Length | 45mm | |
| Width | 44.8 mm | |
| Height | 19.5mm | |
| Output Type | Triac | |
| Off State Leakage Current | 1mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Celduc | ||
Maximum Load Current 25A | ||
Product Type Solid State Relay | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 280V ac | ||
Minimum Load Voltage 12V ac | ||
Minimum Control Voltage 3V dc | ||
Maximum Control Voltage 32V dc | ||
Series SOB5 | ||
Terminal Type FASTON | ||
IP Rating IP20 | ||
Contact Configuration SPST | ||
On State Resistance 16mΩ | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CE, CSA, cURus, EAC, RoHS, UKCA, VDE | ||
Length 45mm | ||
Width 44.8 mm | ||
Height 19.5mm | ||
Output Type Triac | ||
Off State Leakage Current 1mA | ||
- COO (Country of Origin):
- FR
Two-phase synchronous solid state relays
Dual solid state relay suited to most loads
Thyristor output
Dual input with LED display
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Standards
EN60947-4-3 (IEC 947-4-3) and EN60950 / VDE0805 (reinforced insulation) -UL-cUL pending
