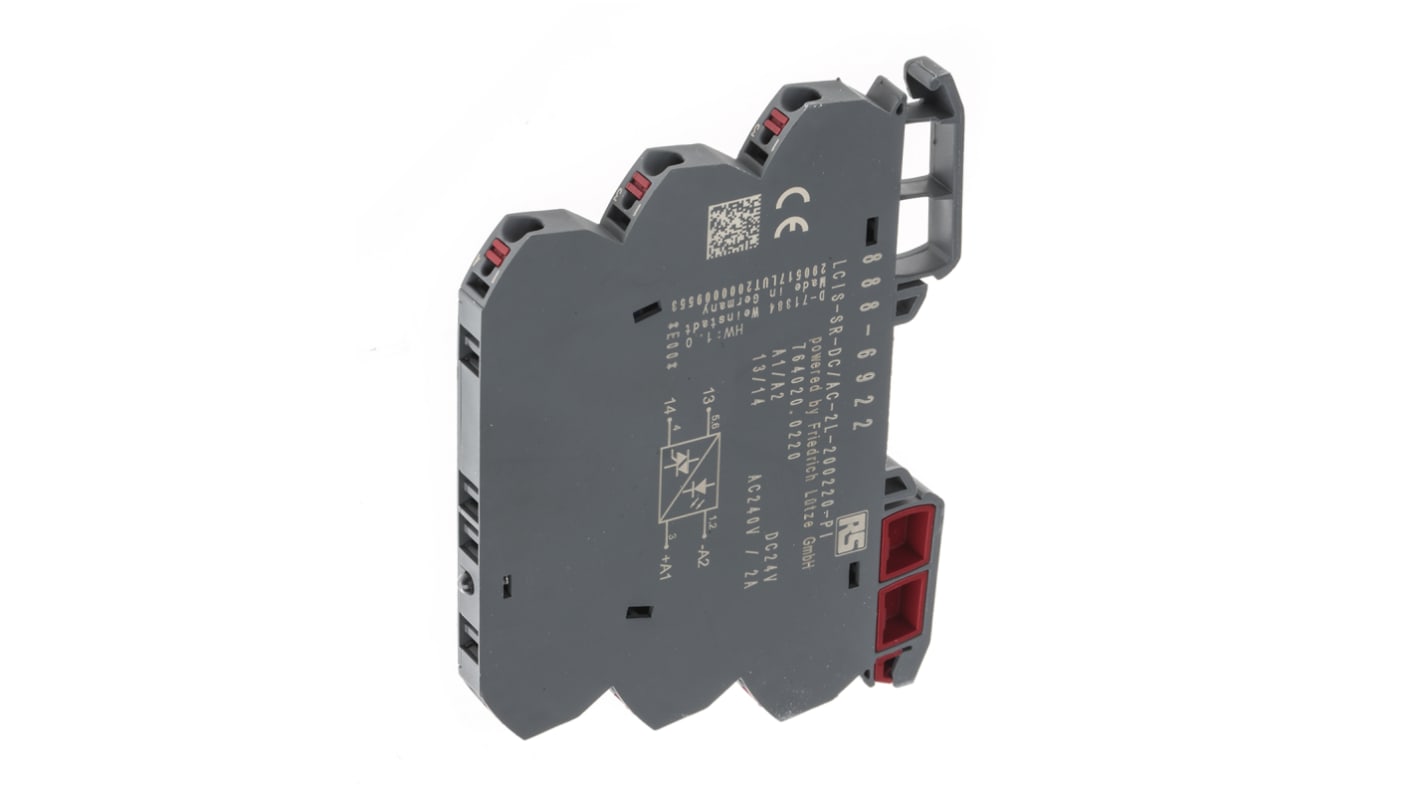

RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 264 V Load, 30V Control
- RS 제품 번호:
- 888-6922
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩194,843.20
일시적 품절
- 2026년 5월 07일 부터 30 개 단위 배송
- 추가로 2026년 6월 04일 부터 50 개 단위 배송
- 추가로 2026년 6월 25일 부터 55 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩38,968.64 | ₩194,843.20 |
| 25 + | ₩32,072.80 | ₩160,364.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 888-6922
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 2A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 264V | |
| Minimum Load Voltage | 20V | |
| Maximum Control Voltage | 30V | |
| Minimum Control Voltage | 11V | |
| Terminal Type | Push-in | |
| Contact Configuration | SPST | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Switching Function | DC Switching | |
| Maximum Operating Temperature | 60°C | |
| Length | 6.2mm | |
| Width | 73 mm | |
| Height | 93mm | |
| Standards/Approvals | UL, RoHS, CSA | |
| Off State Leakage Current | 1mA | |
| Output Type | MOSFET | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Solid State Relay | ||
Maximum Load Current 2A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 264V | ||
Minimum Load Voltage 20V | ||
Maximum Control Voltage 30V | ||
Minimum Control Voltage 11V | ||
Terminal Type Push-in | ||
Contact Configuration SPST | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Switching Function DC Switching | ||
Maximum Operating Temperature 60°C | ||
Length 6.2mm | ||
Width 73 mm | ||
Height 93mm | ||
Standards/Approvals UL, RoHS, CSA | ||
Off State Leakage Current 1mA | ||
Output Type MOSFET | ||
- COO (Country of Origin):
- DE
Push In Solid State Relays 6.2mm
MosFet Interface Solid State Push In Relays – Covering a wide range of applications offering extremely accurate processing, especially for coupling signals and for switching loads of up to 250 V/16 A at temperatures ranging from -40°C to +75°C.
A compact width of 6.2mm which is excellent for narrow applications. Also available with spring loaded connections for areas with strong vibration.
Every push in has inspection openings with a diameter of 2mm guaranteeing secure signal tracking.
Semiconductor, 2 conductor technology
High switching frequencies
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator
LED Indicator
Approvals
UL, CSA, GL
