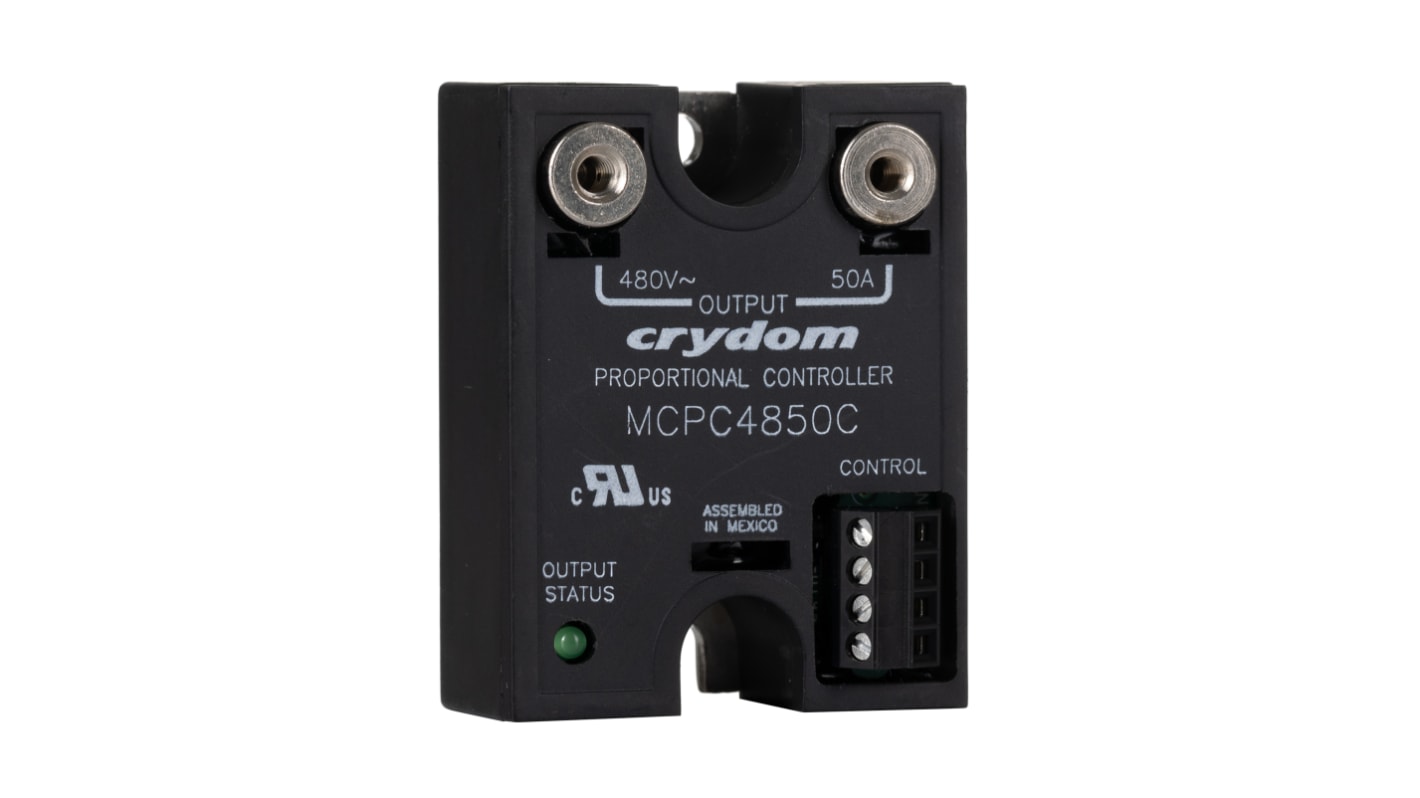

Sensata / Crydom MCPC Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 32V dc Control
- RS 제품 번호:
- 622-2284
- Distrelec 제품 번호:
- 300-84-138
- 제조사 부품 번호:
- MCPC4850C
- 제조업체:
- Sensata / Crydom
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩259,389.00
재고있음
- 82 개 단위 배송 준비 완료
- 추가로 2026년 7월 20일 부터 30 개 단위 배송
- 추가로 2026년 9월 14일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩259,389.00 |
| 6 - 11 | ₩249,015.00 |
| 12 + | ₩238,621.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 622-2284
- Distrelec 제품 번호:
- 300-84-138
- 제조사 부품 번호:
- MCPC4850C
- 제조업체:
- Sensata / Crydom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Crydom | |
| Maximum Load Current | 50A | |
| Product Type | Solid State Relay | |
| Mount Type | Panel | |
| Maximum Load Voltage | 530V ac | |
| Minimum Load Voltage | 330V ac | |
| Minimum Control Voltage | 8V dc | |
| Maximum Control Voltage | 32V dc | |
| Series | MCPC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Contact Configuration | SPST | |
| Switching Function | Zero Voltage Switching | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 45.7mm | |
| Standards/Approvals | RoHS, CE | |
| Width | 22mm | |
| Height | 19.8mm | |
| Capacitance | 10pF | |
| Output Type | SCR | |
| Off State Leakage Current | 12mArms | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Crydom | ||
Maximum Load Current 50A | ||
Product Type Solid State Relay | ||
Mount Type Panel | ||
Maximum Load Voltage 530V ac | ||
Minimum Load Voltage 330V ac | ||
Minimum Control Voltage 8V dc | ||
Maximum Control Voltage 32V dc | ||
Series MCPC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Contact Configuration SPST | ||
Switching Function Zero Voltage Switching | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Length 45.7mm | ||
Standards/Approvals RoHS, CE | ||
Width 22mm | ||
Height 19.8mm | ||
Capacitance 10pF | ||
Output Type SCR | ||
Off State Leakage Current 12mArms | ||
Sensata | Crydom Solid-State Relay, LED Indicator, 28 to 30mA Input Current Range - MCPC Series - MCPC4850C
Looking to fit long-lasting machine management into your system? Choose this Sensata | Crydom solid-state relay. It switches power to your circuits without moving parts, cutting back on wear for long-term use. Checking the product's output status is a cinch, thanks to its LED indicator. As the component's versatile proportional controller scales between 0 and 100%, you can easily adapt its output to suit your setup. Look for SSRs like this one in HVAC systems and chemical processing equipment.
Features & Benefits
• Rated load current of 50A for use in high-power systems
• Tackles surge current up to 625A to minimise the risk of damage from electrical faults
• Screw terminals for secure, simple wiring without the need for any special tools
• Performs reliably at temperatures between -20°C and +80°C for use in demanding environments
• Light weight of 86.5g to place minimal strain on your setup
Does this SSR overheat easily?
No, it has a thermally conductive epoxy encapsulation that dissipates heat effectively to prevent overheating, so your relay doesn't get hot under the collar.
