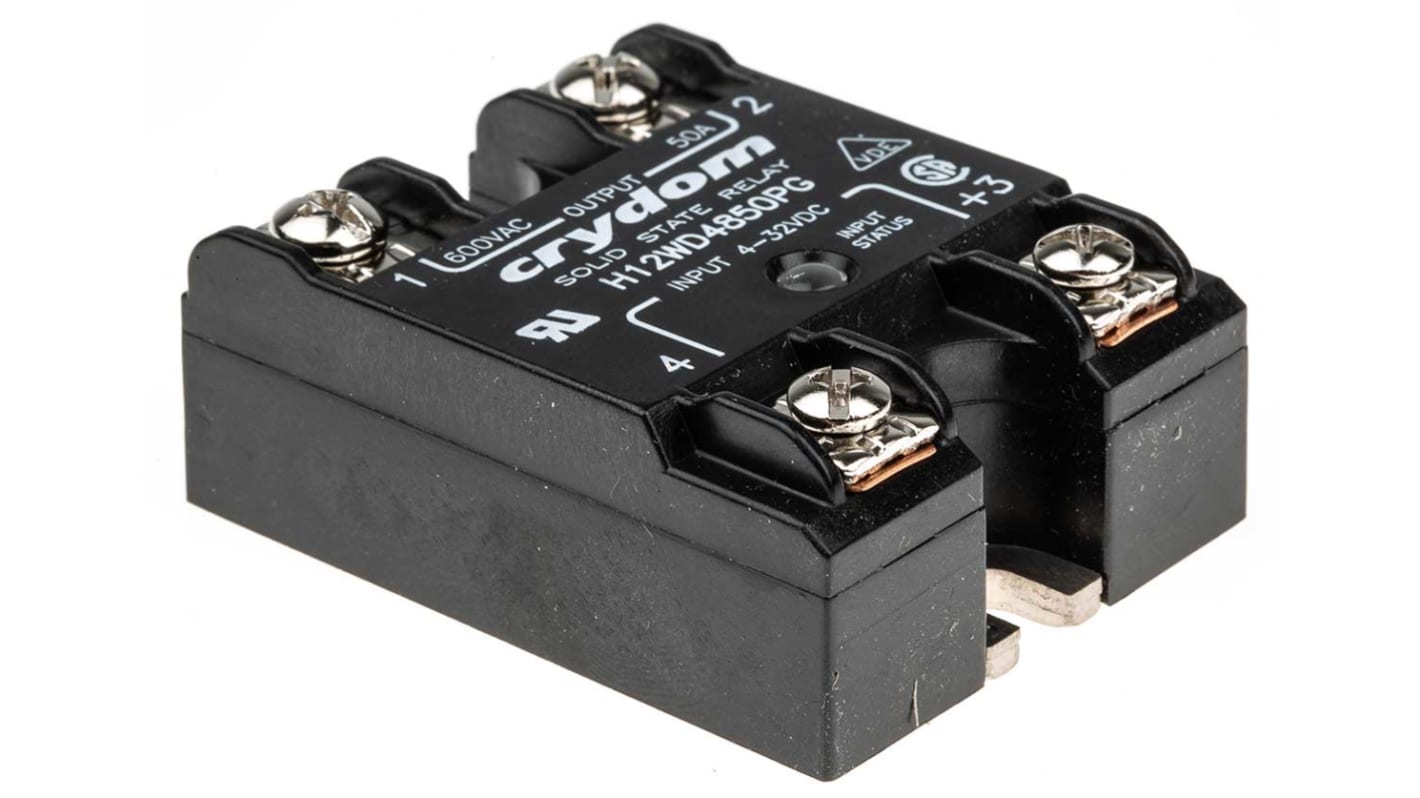

Sensata / Crydom H12WD Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 32V Control
- RS 제품 번호:
- 358-3047
- Distrelec 제품 번호:
- 300-49-222
- 제조사 부품 번호:
- H12WD4850PG
- 제조업체:
- Sensata / Crydom
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩124,362.00
제한된 재고
- 추가로 2026년 3월 23일 부터 82 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩124,362.00 |
| 6 - 11 | ₩119,398.80 |
| 12 + | ₩114,398.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 358-3047
- Distrelec 제품 번호:
- 300-49-222
- 제조사 부품 번호:
- H12WD4850PG
- 제조업체:
- Sensata / Crydom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Crydom | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 50A | |
| Mount Type | Panel | |
| Maximum Load Voltage | 660V ac | |
| Minimum Load Voltage | 48V ac | |
| Maximum Control Voltage | 32V | |
| Minimum Control Voltage | 4V | |
| Series | H12WD | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UR, CSA, RoHS | |
| Length | 58.4mm | |
| Height | 22.9mm | |
| Width | 22.6 mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 1mA | |
| Output Type | SCR | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Crydom | ||
Product Type Solid State Relay | ||
Maximum Load Current 50A | ||
Mount Type Panel | ||
Maximum Load Voltage 660V ac | ||
Minimum Load Voltage 48V ac | ||
Maximum Control Voltage 32V | ||
Minimum Control Voltage 4V | ||
Series H12WD | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UR, CSA, RoHS | ||
Length 58.4mm | ||
Height 22.9mm | ||
Width 22.6 mm | ||
Capacitance 8pF | ||
Off State Leakage Current 1mA | ||
Output Type SCR | ||
Sensata | Crydom Solid-State Relay, Zero-Cross Switching, SCR Output - H12WD Series - H12WD4850PG
Turn your system off and on with this solid-state relay from Sensata | Crydom. This component features overvoltage protection to prevent sudden surges from damaging your circuits. The DBC substrate offers superior thermal performance thanks to the ceramic base, which dissipates heat to keep the device working efficiently. Its LED status indicator makes it easy to monitor and troubleshoot. You'll find it used in lighting and heating applications.
• Broad operating temperature range between -40°C and +80°C for use in demanding environments
• Compact dimensions of 44.5 (L) x 22.6 (W) x 57.3mm (H) for installation in tight spaces
How do I install this SSR?
You can easily install this SSR on a panel using the included SEMS screws and washers. The anti-rotation housing barriers will prevent vibrations or impact from loosening the screws for secure installation.
What accessories work with this device?
You can add a protective cover (789-8475) to prevent electric shock during handling. This SSR also accommodates a heat sink (703-4558) and a thermal pad (743-4860) to keep your system from overheating for efficient performance.
Approvals
UL Recognised; C-UL Recognised; VDE (Including Protection)
