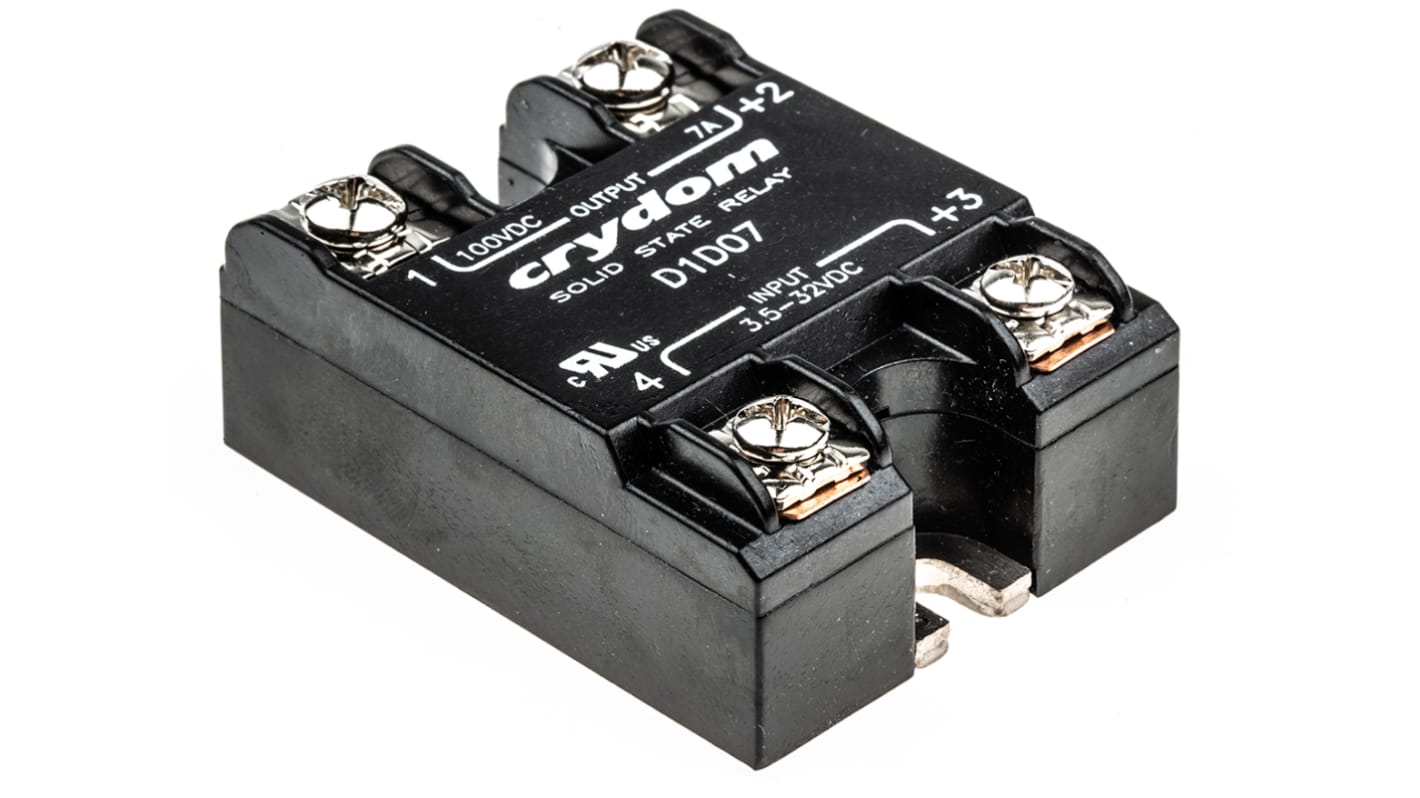

Sensata / Crydom 1-DC Series Solid State Relay, 7 A Load, Panel Mount, 100 V Load, 32V Control
- RS 제품 번호:
- 291-2545
- Distrelec 제품 번호:
- 300-49-177
- 제조사 부품 번호:
- D1D07
- 제조업체:
- Sensata / Crydom
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩99,790.40
제한된 재고
- 추가로 2026년 4월 13일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩99,790.40 |
| 6 - 11 | ₩95,767.20 |
| 12 + | ₩91,819.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 291-2545
- Distrelec 제품 번호:
- 300-49-177
- 제조사 부품 번호:
- D1D07
- 제조업체:
- Sensata / Crydom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Crydom | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 7A | |
| Mount Type | Panel | |
| Maximum Load Voltage | 100V | |
| Minimum Load Voltage | 48V ac | |
| Minimum Control Voltage | 3.5V dc | |
| Maximum Control Voltage | 32V | |
| Series | 1-DC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 22.6mm | |
| Standards/Approvals | CSA, RoHS, UR | |
| Height | 23mm | |
| Length | 45.7mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 0.1mA | |
| Output Type | SCR | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Crydom | ||
Product Type Solid State Relay | ||
Maximum Load Current 7A | ||
Mount Type Panel | ||
Maximum Load Voltage 100V | ||
Minimum Load Voltage 48V ac | ||
Minimum Control Voltage 3.5V dc | ||
Maximum Control Voltage 32V | ||
Series 1-DC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Width 22.6mm | ||
Standards/Approvals CSA, RoHS, UR | ||
Height 23mm | ||
Length 45.7mm | ||
Capacitance 8pF | ||
Off State Leakage Current 0.1mA | ||
Output Type SCR | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, 7A Rated Load Current, -40°C to +100°C Operating Temperature Range - 1-DC Series - D1D07
Switch power on and off in your industrial equipment using this solid-state relay from Sensata |Crydom. It converts the input electrical signal to an optical one to activate the circuits. As there are no moving contacts, there's minimal risk of mechanical wear, helping to ensure a longer service life. This unit has anti-rotation barriers in its housing for secure installation. You can use this SSR to control robotic and electronic devices.
Features & Benefits
• Tough aluminium baseplate is resistant to impact and corrosion
• Broad operating temperature range between -40°C and +100°C for use in challenging environments
• Screw and clamp terminals for simple and secure wiring
How durable is this SSR?
This relay has an MTBF of over 21 million hours at a temperature of +40°C and over 11.5 million hours at +60°C, so you can rest assured it will last a long time.
How fast is this relay?
Thanks to its maximum turn-on and turn-off time of 100μs, this relay provides quick power transmission to your circuits.
Approvals
UL; CE; ISO
