Siemens Solid State Relay, DIN Rail Mount

모든 Solid State Relays 열람하기

Subtotal (1 unit)*

₩169,557.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 1월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩169,557.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
213-0452
제조사 부품 번호:
3RF2330-3AA04
제조업체:
Siemens
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Siemens

Mounting Type

DIN Rail Mount

Number of Poles

1

Terminal Type

Screw

COO (Country of Origin):
DE

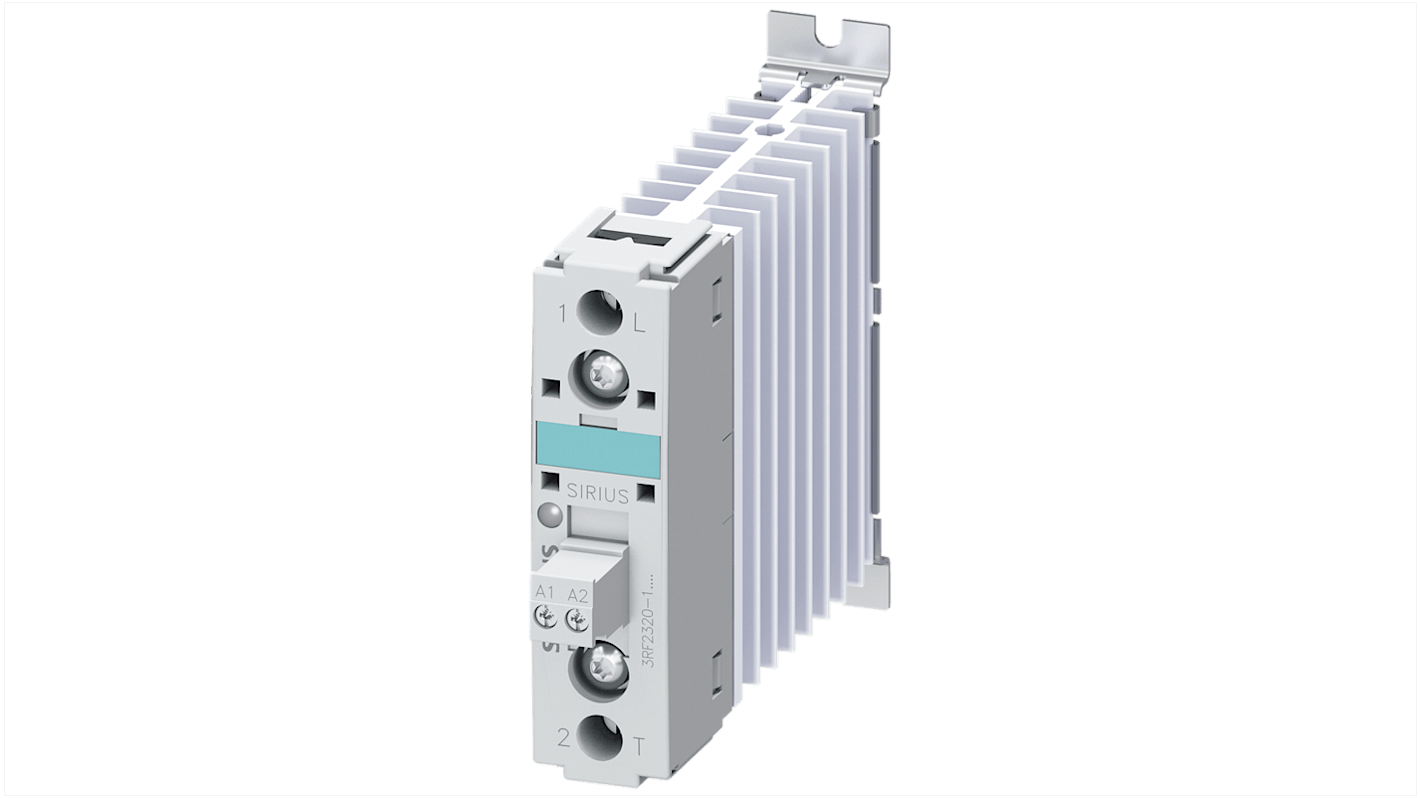

The Siemens 3RF2 series is a solid-state contactor 1-phase 3RF2 AC 51 / 30 A / 40 °C 48-460 V / 24 V DC, Ring cable connection solid-state contactor SIRIUS 3RF23 used for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant. The devices are approved for worldwide use (e.g. IEC and UL/CSA).The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rate operating voltages.

They are also extremely reliable at high switching frequencies.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The compact design saves space on the mounting rail.
They are also extremely reliable at high switching frequencies.
As the heat sink is already integrated, they can be used directly in the control cabinet.
