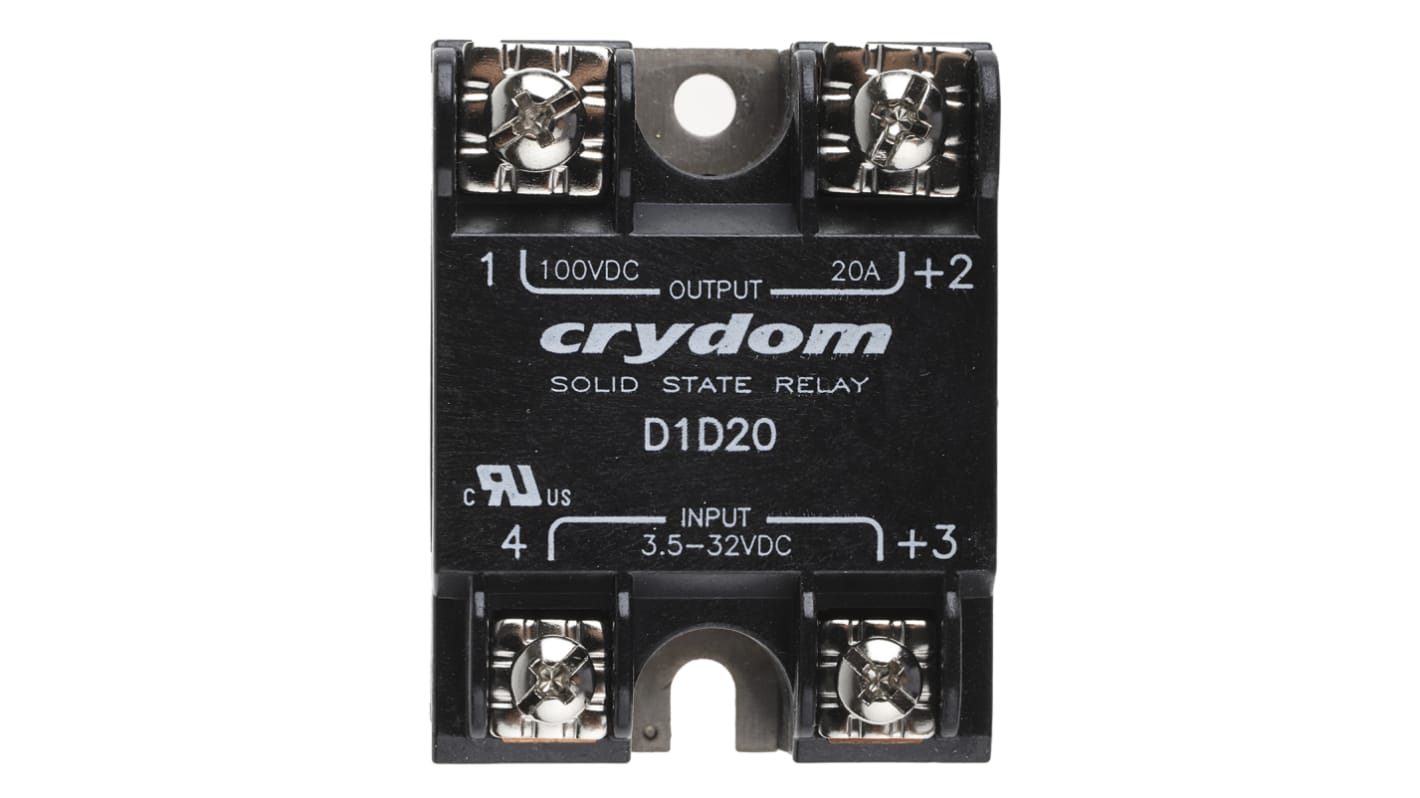

Sensata / Crydom D1 Series Solid State Relay, 20 A Load, Panel Mount, 100 V Load, 32V Control
- RS 제품 번호:
- 200-2058
- Distrelec 제품 번호:
- 300-84-031
- 제조사 부품 번호:
- D1D20
- 제조업체:
- Sensata / Crydom
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩117,048.80
제한된 재고
- 추가로 2026년 3월 23일 부터 24 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩117,048.80 |
| 6 - 11 | ₩114,116.00 |
| 12 + | ₩111,277.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 200-2058
- Distrelec 제품 번호:
- 300-84-031
- 제조사 부품 번호:
- D1D20
- 제조업체:
- Sensata / Crydom
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Crydom | |
| Maximum Load Current | 20A | |
| Product Type | Solid State Relay | |
| Mount Type | Panel | |
| Maximum Load Voltage | 100V | |
| Minimum Load Voltage | 100V | |
| Maximum Control Voltage | 32V | |
| Minimum Control Voltage | 3.5V dc | |
| Series | D1 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Switching Function | Zero Cross Switching | |
| Maximum Operating Temperature | 80°C | |
| Width | 22.6 mm | |
| Height | 23mm | |
| Standards/Approvals | UR, CSA, RoHS | |
| Length | 45.7mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 0.3mA | |
| Output Type | SCR | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Crydom | ||
Maximum Load Current 20A | ||
Product Type Solid State Relay | ||
Mount Type Panel | ||
Maximum Load Voltage 100V | ||
Minimum Load Voltage 100V | ||
Maximum Control Voltage 32V | ||
Minimum Control Voltage 3.5V dc | ||
Series D1 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Switching Function Zero Cross Switching | ||
Maximum Operating Temperature 80°C | ||
Width 22.6 mm | ||
Height 23mm | ||
Standards/Approvals UR, CSA, RoHS | ||
Length 45.7mm | ||
Capacitance 8pF | ||
Off State Leakage Current 0.3mA | ||
Output Type SCR | ||
Sensata | Crydom Solid-State Relay, Aluminium Baseplate, 1mA to 20A Load Current Range - 1-DC Series - D1D20
Turn the electric circuits in your machinery on and off using this solid-state relay from Sensata | Crydom. It switches the electrical signal to an optical form so it can be processed by the integrated transistor. As it doesn't use any physical contacts, there's minimal risk of mechanical wear. It's designed for panel mounting using screws for ease of installation. You'll typically find it used in sensitive devices like medical equipment.
Features & Benefits
• Broad load current range of 1mA to 20A for use in low and high-power systems
• Aluminium baseplate is resistant to corrosion and impact for durability
• Wide operating temperature range between -40°C and +100°C for use in challenging settings
How fast does this relay operate?
This relay has a maximum turn-on and turn-off time of 100μs, so you can rely on it for rapid switching.
How long will this solid-state relay last?
For long-lasting performance, this solid state relay has an MTBF of 21,395,130 hours at an ambient temperature of +40°C and an MTBF of 11,545,504 hours at an ambient temperature of +60°C.
Approvals
UL; CE; ISO
