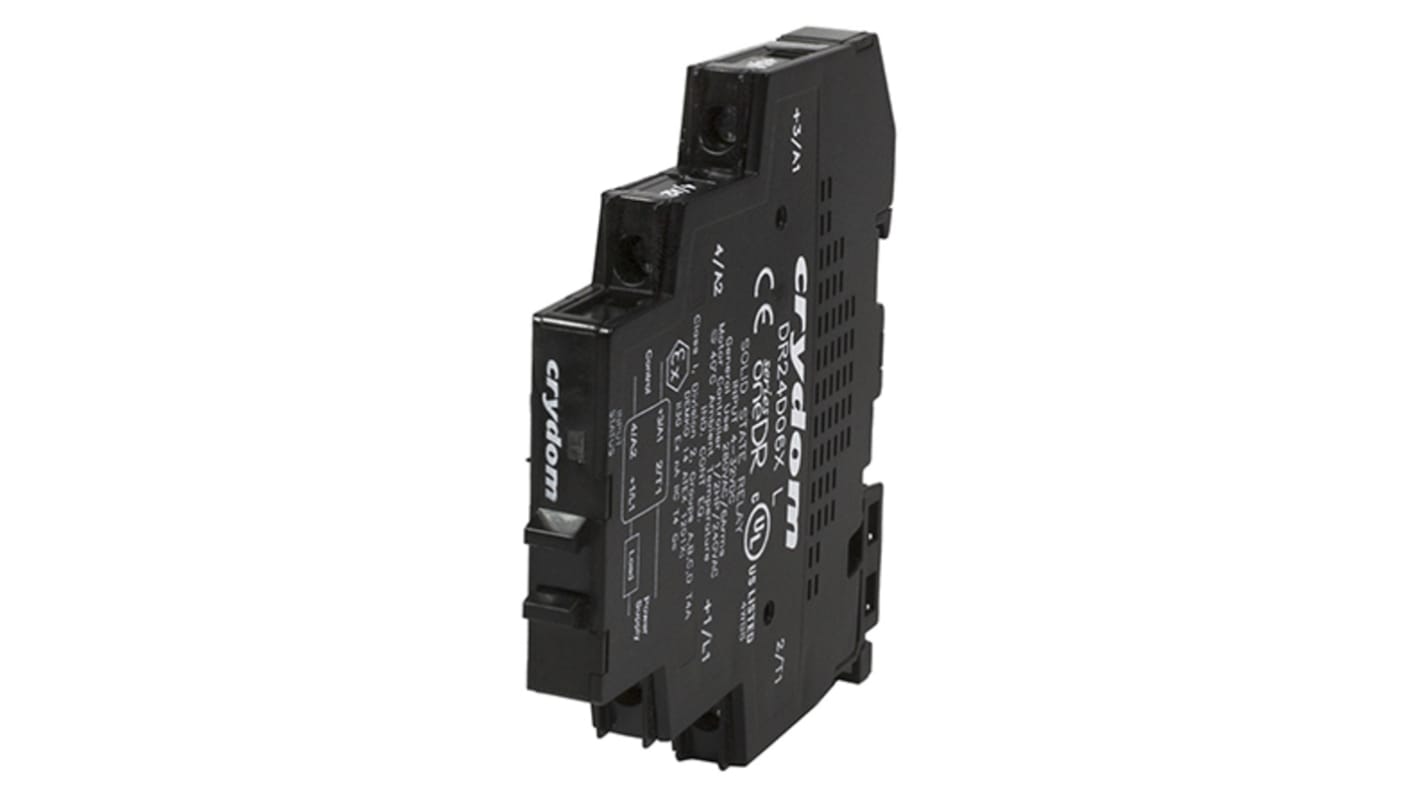

Sensata Crydom DR Series Solid State Interface Relay, 32 V dc Control, 6 A dc Load, DIN Rail Mount

본 제품군 열람하기

Subtotal (1 unit)*

₩111,728.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 29 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩111,728.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
900-8738
제조사 부품 번호:
DR06D06X
제조업체:
Sensata / Crydom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Sensata / Crydom

Maximum Control Voltage

32 V dc

Maximum Load Current

6 A dc

Mounting Type

DIN Rail

Maximum Load Voltage

60 V ac

Minimum Control Voltage

4 V dc

Control Voltage Range

4 → 32 V dc

Switching Type

Zero Voltage Turn-On

Load Voltage Range

1 → 60V dc

Minimum Load Voltage

1 V ac

Terminal Type

Screw

Output Device

Triac

Series

DR

Depth

11mm

Height

83.7mm

Minimum Load Current

0.15 A rms

Length

87.6mm

Dimensions

87.6 x 11 x 83.7mm

Maximum Operating Temperature

+80°C

Off State Leakage Current

0.1 mA

Capacitance

10pF

Minimum Operating Temperature

-30°C

Standards Met

ATEX

Special Features

Fits Standard 35mm DIN-RAIL, LED Input Status Indicator

Maximum Turn On Time

1/2 cycle

Operating Temperature Range

-30 → +80°C

Manufacturer Part No.

DR06D06X

COO (Country of Origin):
MX

DIN Rail Mount DR Series Solid State Relays


The SeriesOne DR solid state relays are UL approved for both the ANSI/ISA Class 1 division 2 requirements and ATEX 95 Equipment Directive 94/9/EC ratings. This range of solid state relays have an existing UL 58 rating and European Union EMC plus low voltage directives. The SeriesOne relays can be used in hazardous environments and locations for example, oil and gas exploration, refining and distribution. The other challenging applications available are for the control of heating, lighting, motion, power and many other electrical loads.

ATEX
Ratings 6 and 12 Amps
Fits standard DIN rail 35mm
LED status indicator
AC or DC control
Load voltage ratings of 1 to 60 Vdc, 1 to 1000 Vdc, 24 to 280 Vac, 48 to 600 Vac
Zero crossing resistive loads or random turn on inductive loads output
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations

Approvals

ATEX
UK and cUL listed, HP rated CE & RoHS compliant
UL 508 Endurance rated for enhanced reliability
UL class 1 and 11, Division 2 for hazardous locations


DC Switching
