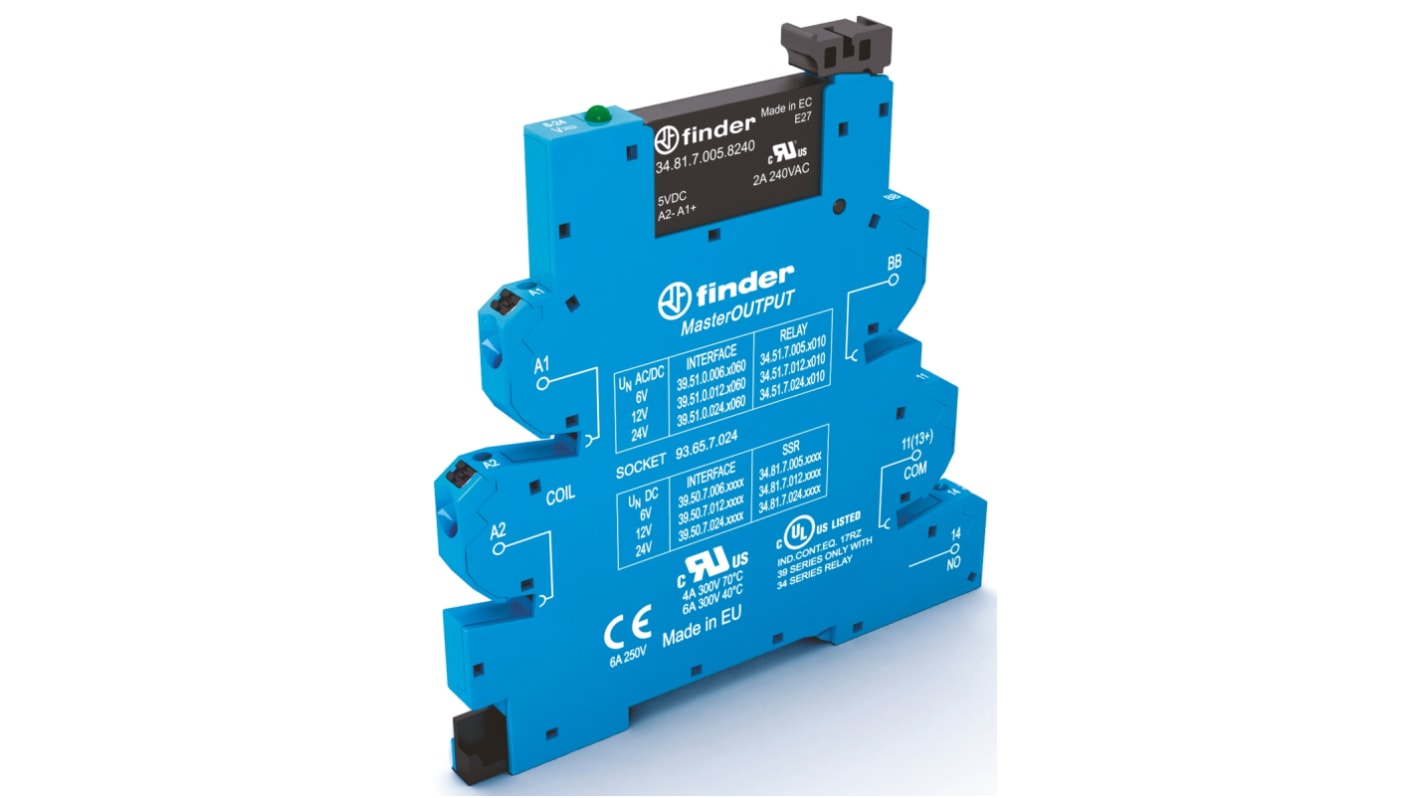

Finder Series 39 Series Solid State Interface Relay, 264 V Control, 6 A Load, DIN Rail Mount
- RS 제품 번호:
- 819-8934
- 제조사 부품 번호:
- 39.50.8.230.9024
- 제조업체:
- Finder
Subtotal (1 unit)*
₩88,987.92
일시적 품절
- 2026년 3월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩88,987.92 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 819-8934
- 제조사 부품 번호:
- 39.50.8.230.9024
- 제조업체:
- Finder
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Finder | |
| Maximum Control Voltage | 264 V | |
| Maximum Load Current | 6 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 24 V dc | |
| Minimum Control Voltage | 184 V | |
| Control Voltage Range | 184 → 264 V | |
| Switching Type | DC | |
| Contact Configuration | SPST | |
| Load Voltage Range | 1.5 → 24V dc | |
| Minimum Load Voltage | 1.5 V dc | |
| Terminal Type | Push In | |
| Series | Series 39 | |
| Output Device | PLC | |
| Minimum Load Current | 1 mA | |
| Off State Leakage Current | 0.001 mA | |
| Maximum Turn On Time | 0.2 ms | |
| Manufacturer Part No. | 39.50.8.230.9024 | |
| Operating Temperature Range | -20 → +55°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Finder | ||
Maximum Control Voltage 264 V | ||
Maximum Load Current 6 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 24 V dc | ||
Minimum Control Voltage 184 V | ||
Control Voltage Range 184 → 264 V | ||
Switching Type DC | ||
Contact Configuration SPST | ||
Load Voltage Range 1.5 → 24V dc | ||
Minimum Load Voltage 1.5 V dc | ||
Terminal Type Push In | ||
Series Series 39 | ||
Output Device PLC | ||
Minimum Load Current 1 mA | ||
Off State Leakage Current 0.001 mA | ||
Maximum Turn On Time 0.2 ms | ||
Manufacturer Part No. 39.50.8.230.9024 | ||
Operating Temperature Range -20 → +55°C | ||
- COO (Country of Origin):
- IT
39 Series - SSR Screw Terminals
A range of solid state relay interface modules from the 39 series from Finder, these relays are silent with high speed switching and long electrical life.
Space saving 6.2 mm wide
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
Connections for 16-way jumper link
Integral coil indication and protection circuit
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm DIN rail mounting
