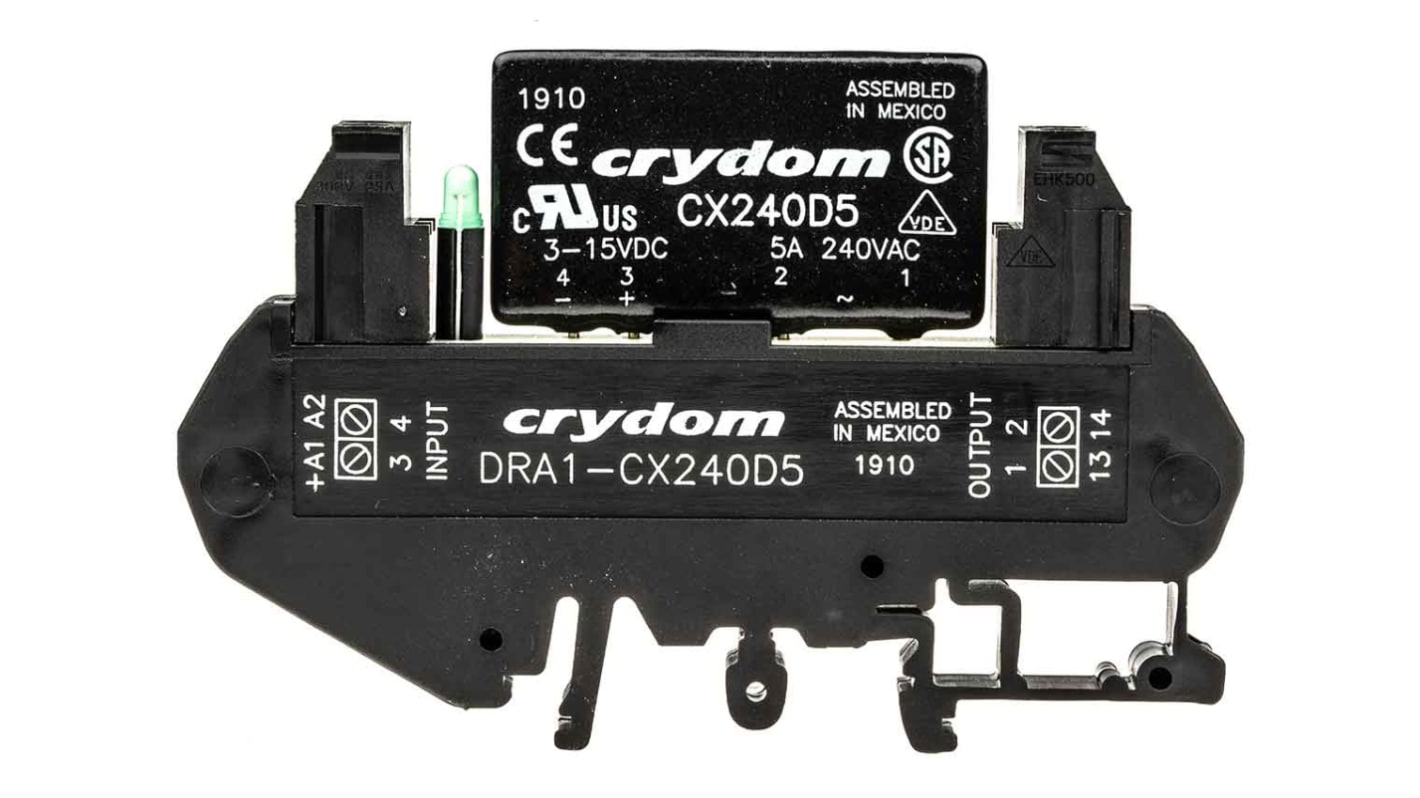

Sensata Crydom DRA1-CX Series Solid State Interface Relay, 15 V dc Control, 5 A rms Load, DIN Rail Mount

본 제품군 열람하기

Subtotal (1 unit)*

₩79,655.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 34 개 단위 배송 준비 완료
  • 추가로 2026년 1월 20일 부터 30 개 단위 배송
  • 추가로 2026년 2월 10일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩79,655.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
701-8519
제조사 부품 번호:
DRA1-CX240D5
제조업체:
Sensata / Crydom
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Sensata / Crydom

Maximum Control Voltage

15 V

Maximum Load Current

5 A rms

Mounting Type

DIN Rail

Maximum Load Voltage

280 V

Minimum Control Voltage

3 V dc

Control Voltage Range

3 → 15 V dc

Switching Type

Zero Cross

Contact Configuration

SPST

Load Voltage Range

12 → 280V ac

Minimum Load Voltage

12 V ac

Terminal Type

Screw

Input Current

15mA

Length

89.6mm

Depth

10mm

Minimum Load Current

0.06 A

Series

DRA1-CX

Height

61mm

Capacitance

10pF

Maximum Turn On Time

1/2 cycle

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+80°C

Dimensions

89.6 x 10 x 61mm

Standards Met

CE, CSA, cURus

Off State Leakage Current

0.1 mA

Operating Temperature Range

-30 → +80°C

Manufacturer Part No.

DRA1-CX240D5

COO (Country of Origin):
MX

Sensata | Crydom Solid-State Interface Relay, 5A Current Rating, 3 to 15V DC Control Voltage Range - DRA1-CX Series - DRA1-CX240D5


Reliably control the power supply to low-voltage equipment using this solid-state interface relay from Sensata | Crydom. Thanks to its current rating of 5A, it's a good choice for use in low-power applications. It has an LED status indicator for quick and convenient visual diagnostics. The unit has no moving parts, so you benefit from minimal wear for long-lasting performance. For ease of installation, you can mount this device on a standard 35mm DIN rail. An interface relay like this one is a good choice for motion control and lighting applications.

• Screw terminals for simple and secure wiring
• Broad operating temperature range between -30°C and +80°C for use in harsh conditions
• Thermally conductive epoxy encapsulation for resistance to heat and impact
• Light weight of 28.6g to place minimal strain on your equipment

How big is this relay?


This relay has compact dimensions of 89.6 (L) x 10 (W) x 61mm (H), allowing you to maximise packing efficiency on your DIN rail.


Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
