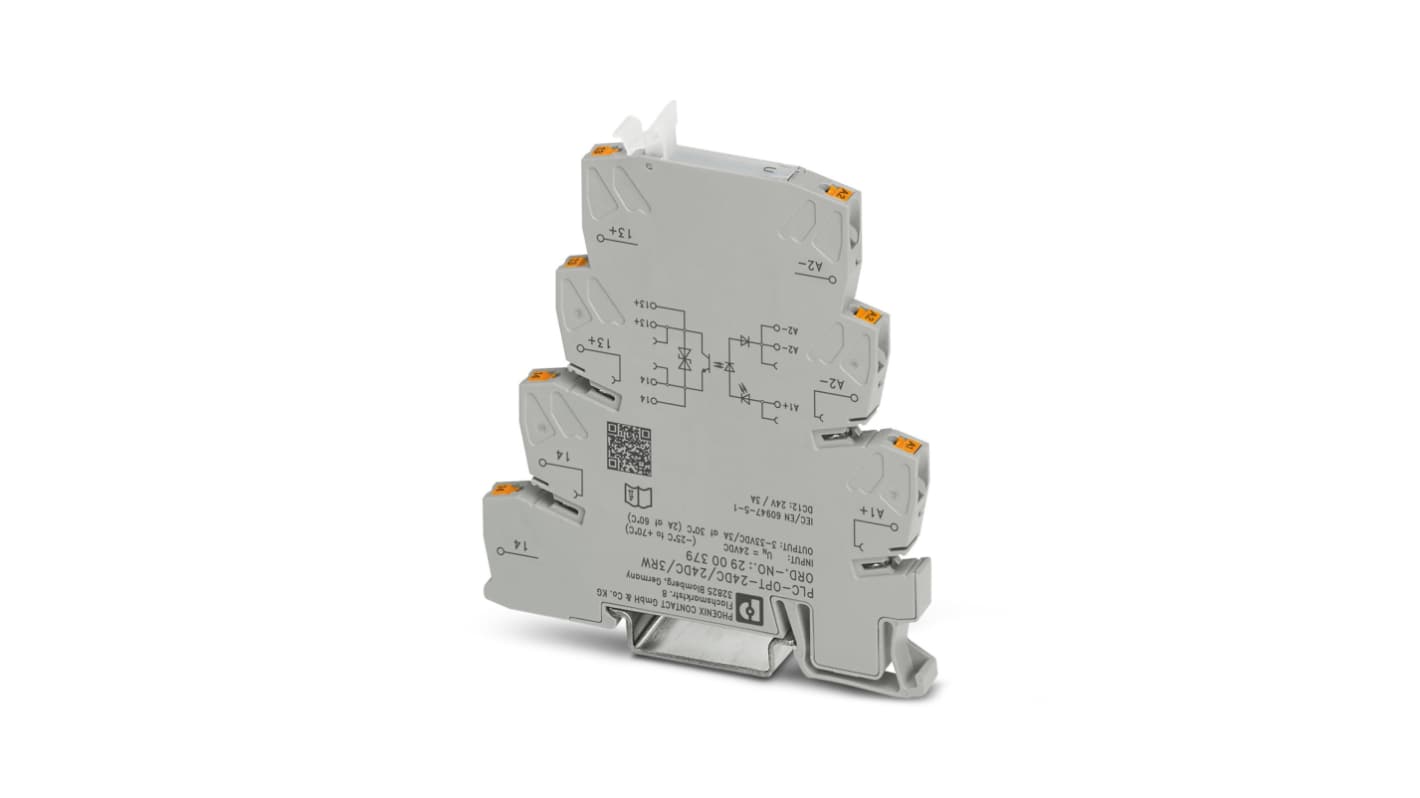

Phoenix Contact PLC-OPT24DC Solid State Interface Relay 3V dc, 33 V dc DIN Rail Push-in

Subtotal (1 pack of 10 units)*

₩820,940.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2027년 1월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
10 +₩82,094.00₩820,940.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
196-0415
제조사 부품 번호:
2900379
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Series

PLC-OPT24DC

Product Type

Solid State Interface Relay

Maximum Input Current

8.5mA

Maximum Control Voltage

1.25V

Maximum Operating Temperature

70°C

Switching Voltage

3V dc, 33V dc

Minimum Operating Temperature

-25°C

Mount Type

DIN Rail

Switching Current

3A

Terminal Type

Push-in

Output Type

Electronic

LED Display

Yes

Standards/Approvals

cUL Listed, CULus, UL Listed

Rise Time

40μs

Isolation Voltage

250V

Length

80mm

Depth

6.2mm

Width

6.2mm

COO (Country of Origin):
DE

Phoenix Contact Solid State Interface Relay, 4kV Rated Surge Voltage, 0.2W Maximum Power Dissipation - PLC-OPT- 24DC/ 24DC/3RW - 2900379


Monitor and control circuits in your industrial equipment with this solid state interface relay from Phoenix Contact. It's a semiconductor-based switching device, which means it has no moving parts, reducing the risk of mechanical wear and supporting a longer operational life. This construction also makes the unit suitable for the control of electrical loads. The thermoplastic housing provides impact protection, making this a practical option for use in harsh environments.

As the relay has a surge voltage rating of up to 4kV, it can withstand high-voltage surges to ensure safe operation. A reverse-polarity protection circuit prevents damage resulting from incorrect connections. Thanks to a narrow width of 6.2mm, you can easily install this device in setups with limited space. You'll find it commonly used in the transportation industry.

Features & Benefits


• DIN-rail mounting style for tool-free installation that saves time and effort

• Push-in connection terminals for simple conductor linkage

• Quick response time of 40μs for timely reaction to faults

• Yellow LED indicator makes voltage status monitoring easy

• UL recognised for safe use in Division2/Zone2 environments
