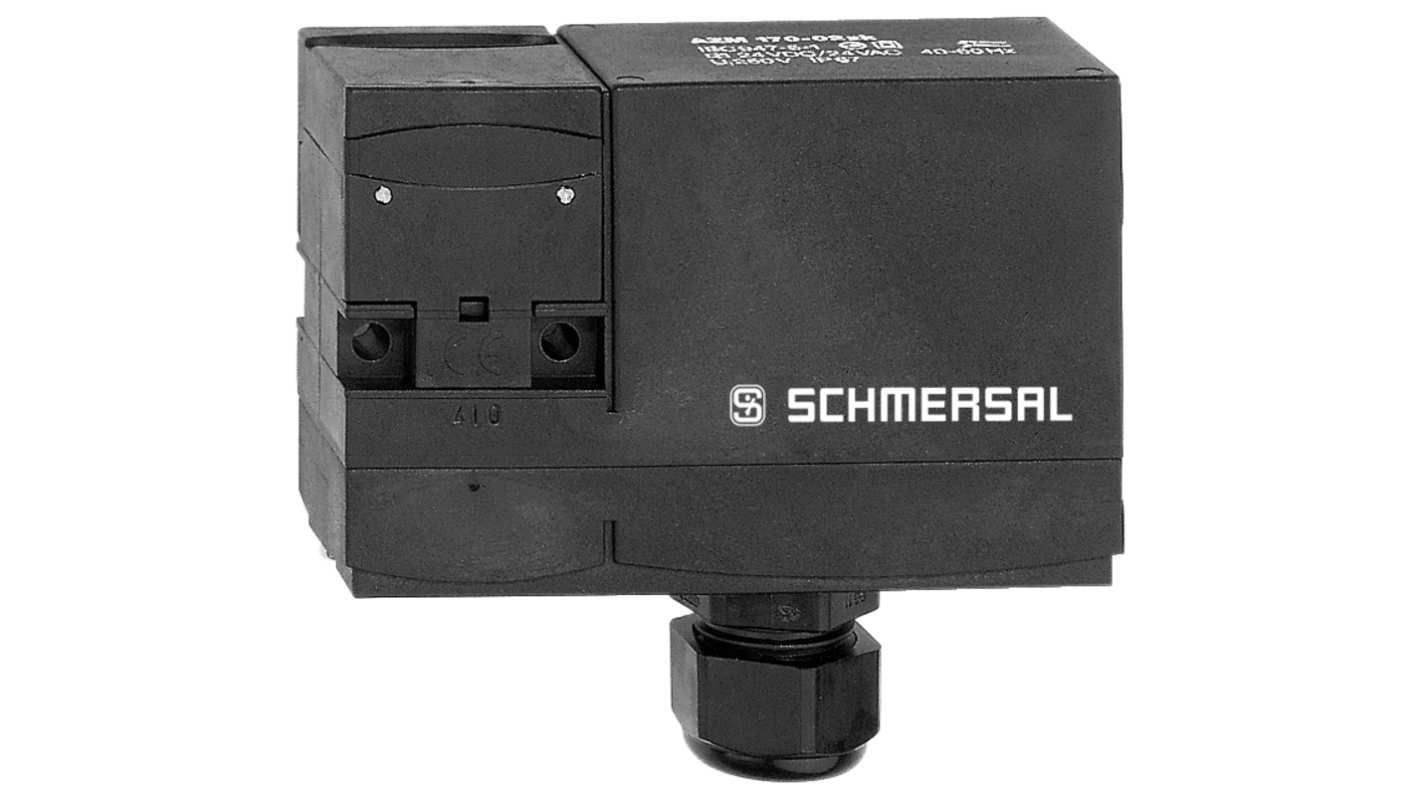

Schmersal AZM 170 Series Solenoid Interlock Switch, Power to Lock
- RS 제품 번호:
- 335-835
- 제조사 부품 번호:
- AZM 170CC-02ZRKA 24VAC/DC
- 제조업체:
- Schmersal
Subtotal (1 unit)*
₩540,945.60
제조사가 재고 비축중
- 2026년 6월 23일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩540,945.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 335-835
- 제조사 부품 번호:
- AZM 170CC-02ZRKA 24VAC/DC
- 제조업체:
- Schmersal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schmersal | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | No | |
| Series | AZM 170 | |
| Safety Contacts | 2 | |
| Conduit Entry | 1 x M20 x 1.5 | |
| Terminal Type | Cage Clamp | |
| Power to Lock/Unlock | Power to Lock | |
| Contact DC Voltage | 24V dc | |
| Housing Material | Fibreglass Reinforced Thermoplastic, Plastic | |
| Contact Current | 4A | |
| Contact AC Voltage | 230V ac | |
| Length | 30mm | |
| IP Rating | IP67 | |
| Width | 90mm | |
| Standards/Approvals | CCC, IFA, cULus, EN ISO 13849-1, EN IEC 60947-5-1, EN ISO 14119 | |
| Hazardous Area Certification | NO | |
| Depth | 84mm | |
| Power Consumption | 12W | |
| Supply Voltage | 24V ac/dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schmersal | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included No | ||
Series AZM 170 | ||
Safety Contacts 2 | ||
Conduit Entry 1 x M20 x 1.5 | ||
Terminal Type Cage Clamp | ||
Power to Lock/Unlock Power to Lock | ||
Contact DC Voltage 24V dc | ||
Housing Material Fibreglass Reinforced Thermoplastic, Plastic | ||
Contact Current 4A | ||
Contact AC Voltage 230V ac | ||
Length 30mm | ||
IP Rating IP67 | ||
Width 90mm | ||
Standards/Approvals CCC, IFA, cULus, EN ISO 13849-1, EN IEC 60947-5-1, EN ISO 14119 | ||
Hazardous Area Certification NO | ||
Depth 84mm | ||
Power Consumption 12W | ||
Supply Voltage 24V ac/dc | ||
제외
The Schmersal Solenoid interlocks are built with a thermoplastic enclosure, ensuring durability and safety. They are double-insulated for enhanced protection, compact in design for versatile use, and include interlock protection against incorrect locking.
Long life
High holding force
